2024 Suzuki GSX1300RRQ2M4 Electrical Diagram

← All diagrams

Find the part on the Electrical diagram for your 2024 Suzuki GSX1300RRQ2M4, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

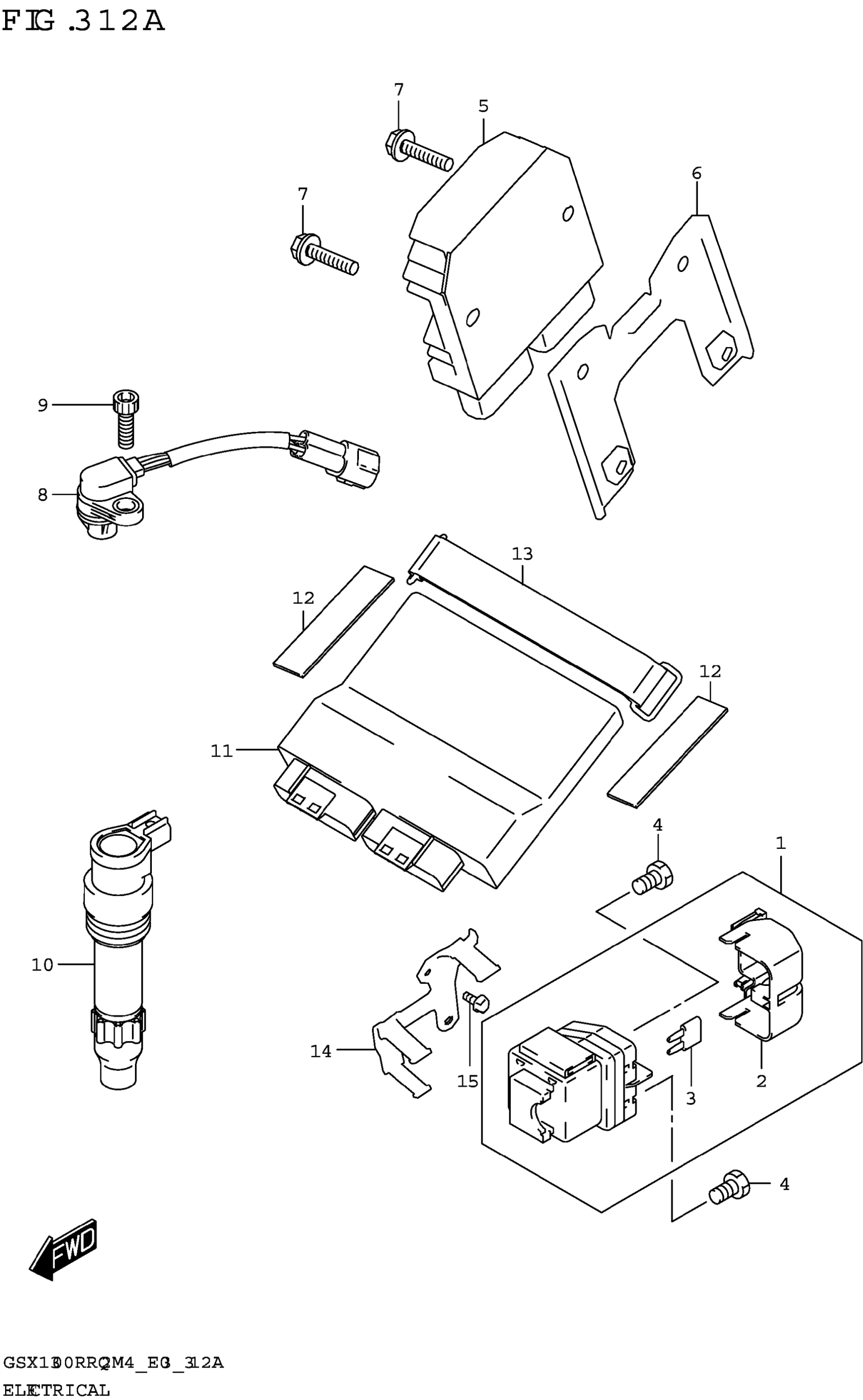

2024 Suzuki GSX1300RRQ2M4 Electrical Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

RELAY ASSY,STARTING MOTOR

31800-44G00

1
Out of stock

2

.COVER

31861-38G00

1
Out of stock

3

.FUSE (30A)

09481-30501

2
Out of stock

4

SCREW (6X8)

09128-06013

2
Out of stock

5

RECTIFIER ASSY

32800-26J10

1
Out of stock

6

BRACKET,RECTIFIER

94560-10L00

1
Out of stock

7

SCREW

02162-0625B

2
Out of stock

8

SENSOR ASSY,CAM POSITION

33220-01H01

1
Out of stock

9

BOLT This part replaces 07130-0616A.

07130-0616B

1
Out of stock

10

COIL ASSY,IGNITION

33410-10L00

4
Out of stock

11

HARDWARE, FI CONTROL UNIT This part replaces 32910-10L00.

32910-48K00

1
Out of stock

12

PROTECTOR (80X80X2) This part replaces 33652-38A10.

33652-07D00

2
Out of stock

13

BAND

09462-00007

1
Out of stock

14

BRACKET,RELAY

47423-10L00

1
Out of stock

15

BOLT

01550-0616A

1
Out of stock
