2012 Suzuki GSX1300RL2 Side Cowling Diagram

← All diagrams

Find the part on the Side Cowling diagram for your 2012 Suzuki GSX1300RL2, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

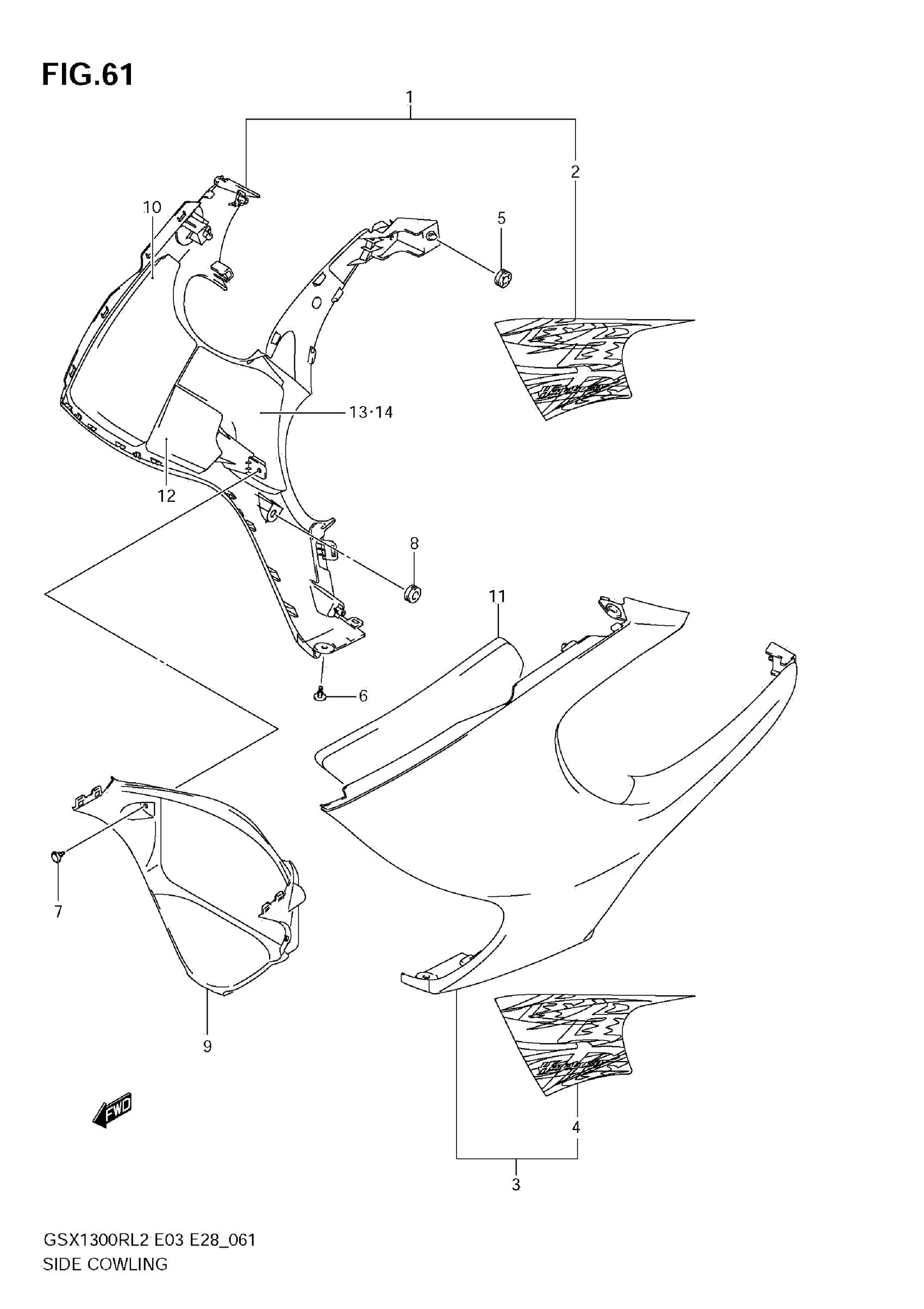

2012 Suzuki GSX1300RL2 Side Cowling Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

COWLING, SIDE RH (BLACK)

94450-15H40-YVB

1

$1,693.50

In stock

1

COWLING, SIDE RH (RED)

94450-15H40-YHL

1

$1,725.54

In stock

1

COWLING, SIDE RH (WHITE)

94450-15H40-YWW

1

$1,693.50

In stock

2

1

$186.58

In stock

2

TAPE, SIDE COWLING RH | FOR YHL

68685-15H30-AAM

1
Out of stock

2

TAPE, SIDE COWLING RH | FOR YWW

68685-15H30-AAP

1
Out of stock

3

COWLING, SIDE LH (BLACK)

94460-15H40-YVB

1

$1,693.50

In stock

3

COWLING, SIDE LH (RED)

94460-15H40-YHL

1

$921.47

In stock

3

COWLING, SIDE LH (WHITE)

94460-15H40-YWW

1

$1,725.43

In stock

4

1

$183.12

In stock

4

TAPE, SIDE COWLING LH | FOR YHL

68695-15H30-AAM

1
Out of stock

4

TAPE, SIDE COWLING LH | FOR YWW

68695-15H30-AAP

1
Out of stock

5

CUSHION

09320-08028

2
Out of stock

6

CLIP

94479-35F00

2
Out of stock

7

CLIP

94479-35F00

2
Out of stock

8

CUSHION

09321-10018

2
Out of stock

9

COWLING, UNDER CENTER

94498-15H00

1

$74.53

In stock

12

CUSHION, SIDE LOWER

94476-15H10

2

$13.90

In stock

13

SHIELD, SIDE RH

94474-15H00

1

$80.65

In stock

14

SHIELD, SIDE LH

94484-15H00

1

$86.57

In stock
