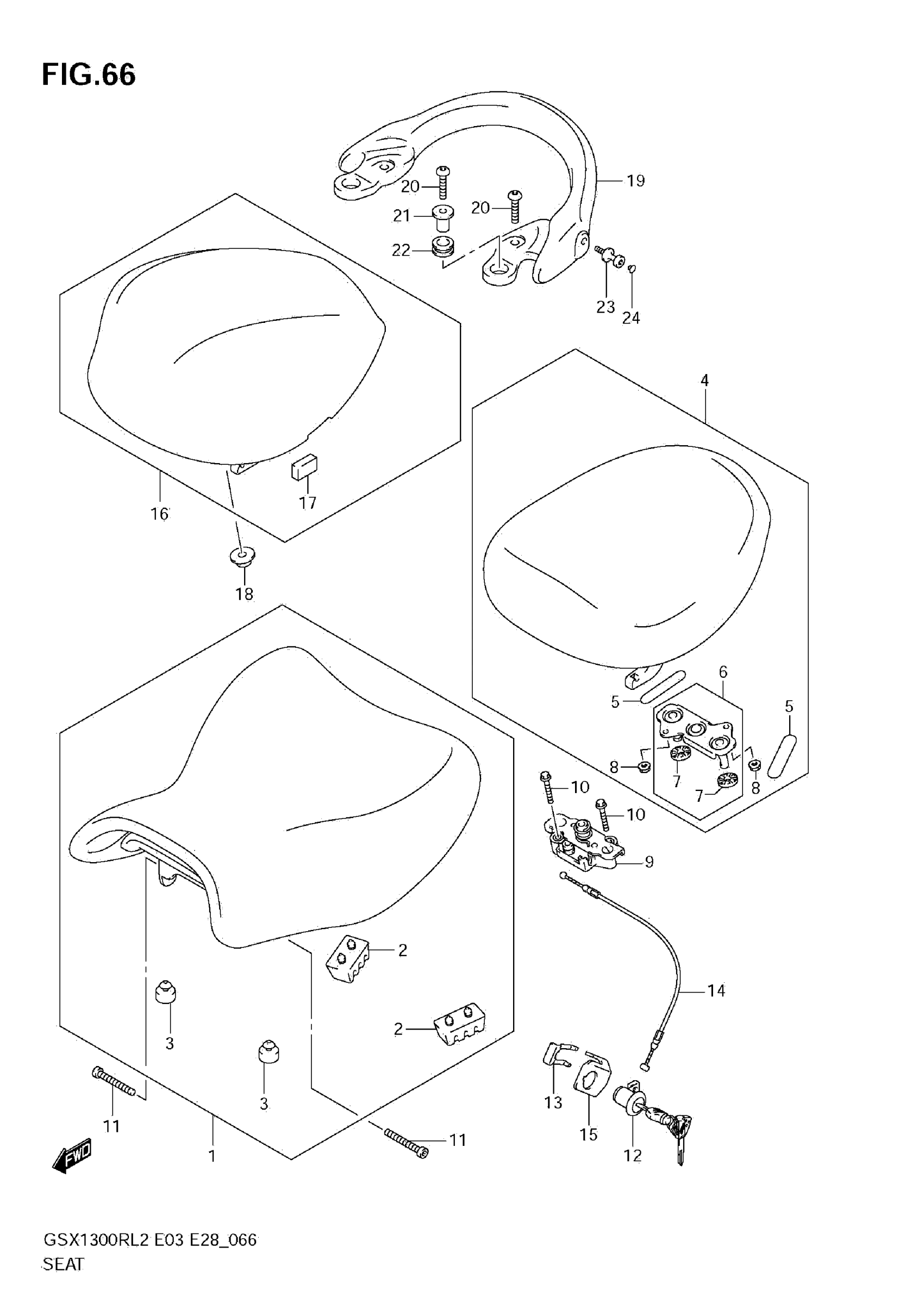

Find the part on the Seat diagram for your 2012 Suzuki GSX1300RL2, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2012 Suzuki GSX1300RL2 Seat Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

1

$315.58

In stock

2

CUSHION

45149-45330

2

$3.88

In stock

3

CUSHION

09321-10011

2

$2.92

In stock

4

1

$237.35

In stock

5

2

$5.95

In stock

6

STRIKER, SEAT LOCK

45290-15H00

1

$58.95

In stock

7

CUSHION

45213-42F00

2
Out of stock

8

NUT

08319-3106A

2
Out of stock

9

BRACKET, SEAT SUPPORT

45220-15H00

1

$161.37

In stock

10

BOLT

01547-0630A

2

$2.48

In stock

11

BOLT,SEAT FR

45191-15H00

2

$7.55

In stock

12

LOCK ASSY, SEAT

95700-14810

1
Out of stock

13

PLATE, SEAT LOCK

45289-11F00

1
Out of stock

14

1

$20.99

In stock

15

GUIDE, CABLE

45288-14F20

1

$10.25

In stock

16

BOX, SEAT TAIL (BLACK)

45550-15H01-YVB

1

$354.43

In stock

16

BOX, SEAT TAIL (RED)

45550-15H01-YHL

1

$380.38

In stock

16

BOX, SEAT TAIL (WHITE)

45550-15H01-YWW

1

$366.43

In stock

17

CUSHION

45553-15H00

2

$10.98

In stock

18

.WASHER,FRAME COVER

47190-24F01

2
Out of stock

19

HANDLE, PILLION RIDER (RED)

46211-15H00-YHL

1

$461.03

In stock

20

BOLT (8X33)

09106-08137

4

$5.85

In stock

21

2

$10.07

In stock

22

2

$5.83

In stock

23

HOOK, HANDLE

46212-24F11

2

$42.97

In stock

24

CAP (OD:10)

09250-05009

2
Out of stock
