2012 Suzuki GSX1300RL2 Cowling Body Diagram

← All diagrams

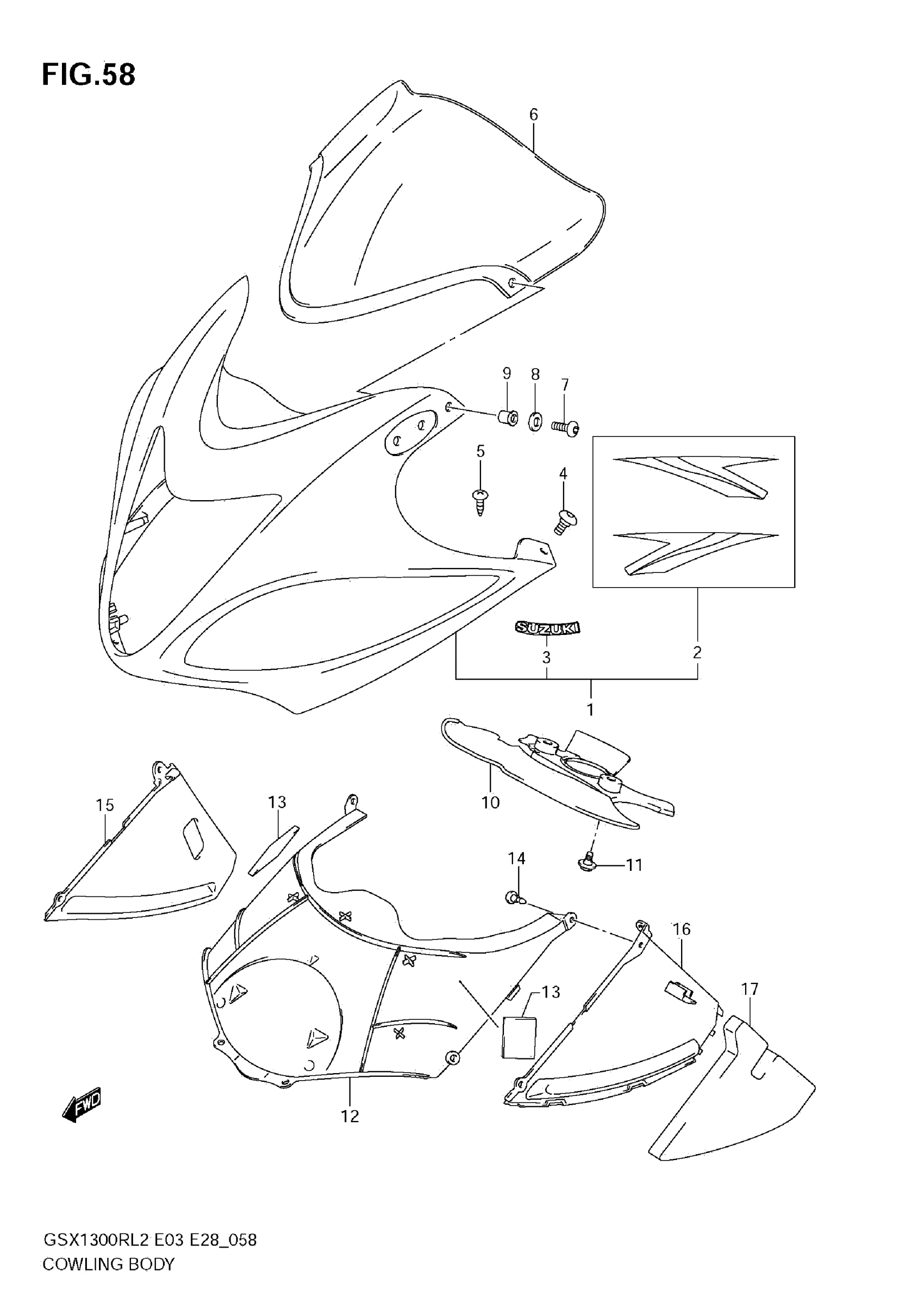

Find the part on the Cowling Body diagram for your 2012 Suzuki GSX1300RL2, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2012 Suzuki GSX1300RL2 Cowling Body Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

COWLING ASSY,BO This part replaces 94401-15H30-YVB.

94401-15H31-YVB

1
Out of stock

1

COWLING ASSY,BO This part replaces 94401-15H30-YHL.

94401-15H31-YHL

1
Out of stock

1

COWLING ASSY,BO This part replaces 94401-15H30-YWW.

94401-15H31-YWW

1
Out of stock

2

TAPE SET | FOR YVB

68270-15H30-AAK

1
Out of stock

2

TAPE SET (SILVER) | FOR YHL

68270-15H30-AAJ

1
Out of stock

2

TAPE SET | FOR YWW

68270-15H30-AAL

1
Out of stock

3

EMBLEM, "SUZUKI | FOR YVB,YWW This part replaces 68281-24F10-17U.

68281-24F11-17U

1
Out of stock

3

.EMBLEM,"SUZUKI" (BLACK) | FOR YHL This part replaces 68281-24F10-019.

68281-24F11-019

1
Out of stock

4

SCREW (5X16)

09139-05077

2
Out of stock

5

SCREW (5X16)

09132-05053

2
Out of stock

6

WINDSCREEN

94611-15H00

1
Out of stock

7

SCREW (5X14)

09139-05025

2
Out of stock

8

WASHER

08322-0105B

2
Out of stock

9

NUT

09159-05019

2
Out of stock

10

COVER, LOWER BRACKET

94458-15H00

1
Out of stock

11

BOLT (6X12)

09111-06107

2
Out of stock

12

COVER, BODY COWL This part replaces 94419-15H00.

94419-15H02

1
Out of stock

13

CUSHION, COVER

36930-60A10

2
Out of stock

14

CLIP (BLACK)

09409-06314-5PK

6
Out of stock

15

COWL, INNER RH

94461-15H00

1
Out of stock

16

COWL, INNER LH

94462-15H00

1
Out of stock

17

CUSHION, LH

94463-15H00

1
Out of stock
