2012 Suzuki GSX1300RL2 Radiator Hose Diagram

← All diagrams

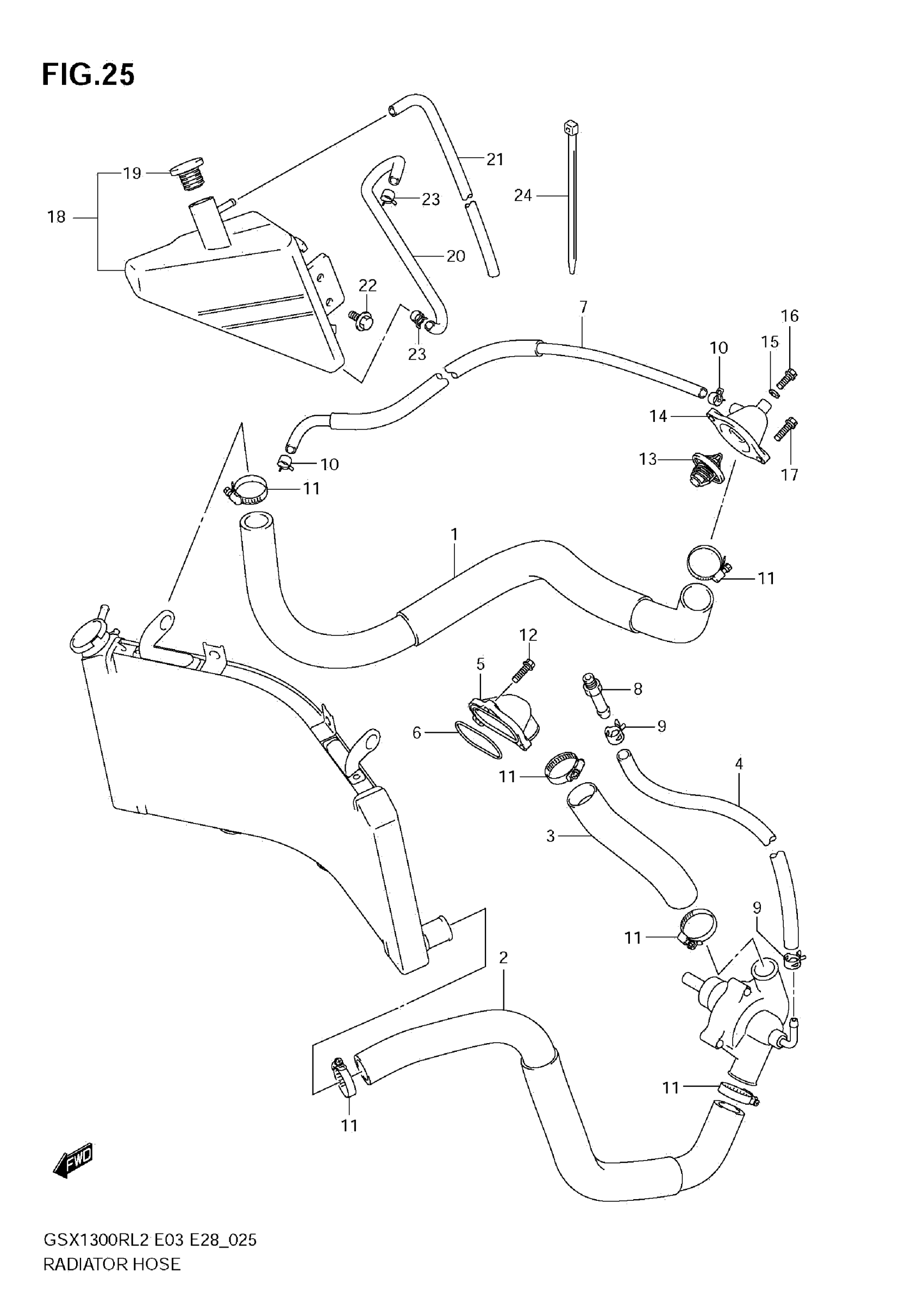

Find the part on the Radiator Hose diagram for your 2012 Suzuki GSX1300RL2, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2012 Suzuki GSX1300RL2 Radiator Hose Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

HOSE, RADIATOR INLET

17851-15H00

1
Out of stock

2

HOSE, RADIATOR OUTLET

17852-15H00

1
Out of stock

3

HOSE, CYLINDER INLET

17853-24F00

1
Out of stock

4

HOSE, WATER BYPASS

17854-24F00

1
Out of stock

5

CONNECTOR

17861-33E20

1
Out of stock

6

O-RING

17863-33E00

1
Out of stock

7

HOSE, WATER AIR BLEED

17855-15H00

1
Out of stock

8

UNION

09362-09011

1
Out of stock

9

CLIP This part replaces 09401-12409.

09401-12414

2
Out of stock

10

CLIP (ID:10.5,H:8)

09401-10409

2
Out of stock

11

CLAMP

09402-38512

6
Out of stock

12

BOLT

01547-0620A

3
Out of stock

13

THERMOSTAT,WATER

17670-15H00

1
Out of stock

14

COVER, THERMOSTAT

17661-35F00

1
Out of stock

15

GASKET (6.4X11.5X0.8)

09168-06026

1
Out of stock

16

BOLT

17568-50F00

1
Out of stock

17

BOLT

01547-0620A

2
Out of stock

18

TANK ASSY, RESERVOIR

17910-15H00

1
Out of stock

19

.CAP,RESERVOIR TANK

17931-02FA0

1
Out of stock

20

HOSE, RESERVER TANK INLET

17981-15H00

1
Out of stock

21

HOSE, RESERVER TANK OVERFLOW

17982-22H00

1
Out of stock

22

BOLT (6X12)

09111-06085

1
Out of stock

23

CLIP

09401-08411

2
Out of stock

24

CLAMP (L:145)

09407-14407

1
Out of stock
