2012 Suzuki GSX1300RL2 Cylinder Head Diagram

← All diagrams

Find the part on the Cylinder Head diagram for your 2012 Suzuki GSX1300RL2, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

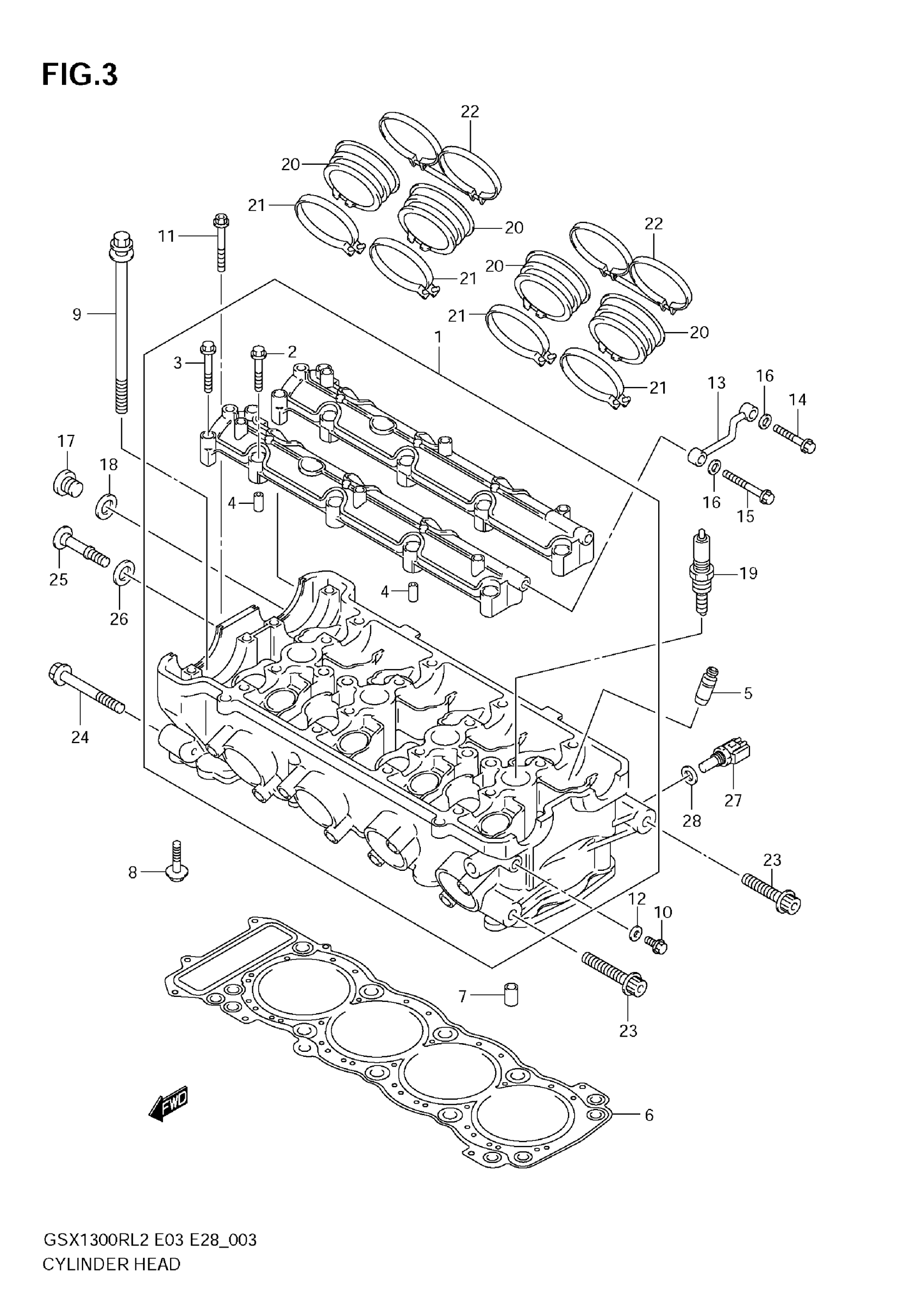

2012 Suzuki GSX1300RL2 Cylinder Head Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

HEAD ASSY,CYLIN This part replaces 11100-15H00.

11100-15H02

1
Out of stock

2

BOLT (6X40)

09103-06266

16
Out of stock

3

BOLT (6X45)

09103-06293

4
Out of stock

4

PIN (6.2X8X16)

09206-08007

4
Out of stock

5

GUIDE,VALVE (OS:0.3) | OPT

11115-15H70

16
Out of stock

6

GASKET, CYLINDER HEAD

11141-15H00

1
Out of stock

7

PIN

04211-11169

2
Out of stock

8

BOLT

01550-0630B

1
Out of stock

9

BOLT,CYLINDER HEAD (L180)

11117-15H00

10
Out of stock

10

BOLT (6X12)

09103-06222

1
Out of stock

11

BOLT

07120-0655B

2
Out of stock

12

GASKET (5.8X13X1.2)

09168-06023

1
Out of stock

13

PIPE,OIL This part replaces 11131-33E00.

11131-33E01

1
Out of stock

14

BOLT

01550-0635A

1
Out of stock

15

BOLT

01550-0645A

1
Out of stock

16

WASHER

08322-0106A

2
Out of stock

17

PLUG (16X8)

09248-16012

1
Out of stock

18

GASKET (16X22X0.8)

09168-16009

1
Out of stock

19

SPARK PLUG (NGK, CR9EIA-9)

09482-00558

4
Out of stock

19

SPARK PLUG (DENSO, IU27D)

09482-00557

4
Out of stock

19

SPARK PLUG (NGK, CR8EIA-9) | OPT

09482-00556

4
Out of stock

19

SPARK PLUG (NGK, CR10EIA-9) | OPT

09482-00560

4
Out of stock

19

SPARK PLUG (DENSO, IU24D) | OPT

09482-00555

4
Out of stock

19

SPARK PLUG (DENSO, IU31D) | OPT

09482-00559

4
Out of stock

20

4

$20.30

In stock

21

..CLAMP

09402-60208

4
Out of stock

22

CLAMP

13170-15H10

2
Out of stock

23

BOLT (10X45)

09106-10069

2
Out of stock

24

BOLT (10X60)

09106-10084

2
Out of stock

25

BOLT, CYL HEAD SIDE FACE

11161-33E00

1
Out of stock

26

WASHER

11191-13E00

1
Out of stock

27

SENSOR, WATER TEMPERATURE

13650-49X00

1
Out of stock

28

GASKET (12X17X1)

09168-12017

1
Out of stock
