2011 Suzuki GSX1300RL1 Wiring Harness Diagram

← All diagrams

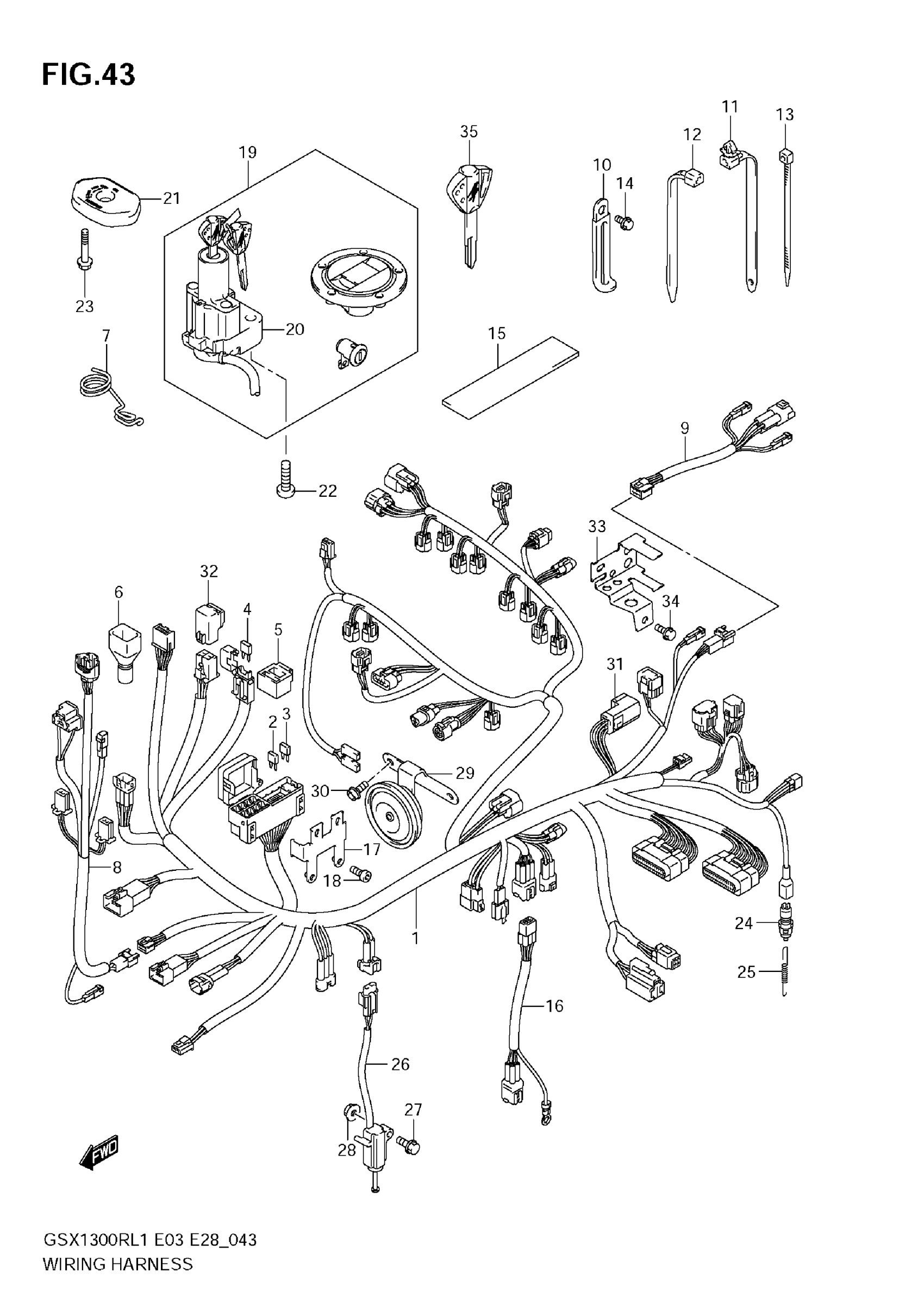

Find the part on the Wiring Harness diagram for your 2011 Suzuki GSX1300RL1, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2011 Suzuki GSX1300RL1 Wiring Harness Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

HARNESS,WIRING This part replaces 36610-15H30.

36610-15H31

1
Out of stock

2

FUSE (10A)

09481-10501

4
Out of stock

3

FUSE (15A)

09481-15501

2
Out of stock

4

FUSE (15A)

09481-15101

2

$2.77

In stock

5

HOLDER

36742-39D00

1

$21.62

In stock

6

BOOT, METER

36618-33E00

1
Out of stock

7

GUIDE, WIRING HARNESS

36619-15H00

1
Out of stock

8

HARNESS,WIRING This part replaces 36620-15H00.

36620-15H01

1
Out of stock

9

WIRE,RR COMB This part replaces 36857-15H00.

36857-15H01

1
Out of stock

10

CLAMP (L:45)

09404-06429

4
Out of stock

10

CLAMP (L:135)

09404-06435

1
Out of stock

11

CLAMP This part replaces 09407-14408.

09407-17402

1
Out of stock

12

CLAMP (L:125)

09407-14403

6
Out of stock

12

CLAMP (L:165)

09407-18402

4
Out of stock

13

CLAMP (L:145)

09407-14407

1
Out of stock

14

BOLT

01550-0610A

1
Out of stock

15

PROTECTOR, WIRING HARNESS

36920-45G00

1
Out of stock

16

WIRE, O2 SENSOR

36855-15H00

1
Out of stock

17

BRACKET, FUSE BOX

36744-24F00

1
Out of stock

18

BOLT

07120-0510B

2
Out of stock

19

LOCK SET This part replaces 37100-15850.

37100-15853

1
Out of stock

20

LOCK ASSY,STEER This part replaces 37100-15H80.

37100-15H81

1
Out of stock

21

COVER,STEERING LOCK This part replaces 37180-15H00.

37180-15HA0

1
Out of stock

22

BOLT (8X20)

09139-08016

2
Out of stock

23

BOLT

01547-0530A

2
Out of stock

24

SWITCH ASSY, STOP LAMP

37740-19F00

1
Out of stock

25

SPRING

09443-06012

1
Out of stock

26

SWITCH ASSY,SIDE STAND This part replaces 37840-24F00.

37840-24F02

1
Out of stock

27

BOLT (8X35)

09103-08357

1
Out of stock

28

NUT

08316-1008B

1
Out of stock

29

HORN ASSY

38500-24F01

—
Out of stock

30

BOLT

01550-0612B

2
Out of stock

31

RELAY ASSY,FUEL PUMP This part replaces 38740-26E00.

38740-26E01

1
Out of stock

32

RELAY ASSY,FUEL PUMP This part replaces 38740-26E00.

38740-26E01

1
Out of stock

33

BRACKET, FUEL PUMP RELAY

38741-24F00

1
Out of stock

34

BOLT

01550-0612B

1
Out of stock

35

KEY, BLANK | OPT

37146-15H00

1
Out of stock
← Wiring Harness Wiring Harness →
