Description

Price

1

RELAY ASSY,STARTING MOTOR

31800-44G00

$92.54

2

COVER, RECTIFIER

31861-38G00

$5.52

3

FUSE (30A)

09481-30501

$2.34

4

SCREW (6X8)

09128-06013

$1.24

5

RECTIFIER ASSY This part replaces 32800-15H10.

32800-15H11

$213.98

6

PROTECTOR (30X50X3)

33652-36000

$2.87

7

CLAMP, RECTIFIER LEAD

36651-48E00

$3.67

8

BOLT

02162-0625A

$1.68

9

SENSOR ASSY,CAM POSITION This part replaces 33220-01H00.

33220-01H01

$98.86

10

BOLT This part replaces 07130-0616A.

07130-0616B

$2.38

11

COIL ASSY,IGNIT This part replaces 33410-24F10.

33410-24F11

$106.30

12

CONTROL UNIT, FI

32920-15H10

Unavailable

13

SENSOR ASSY,FUEL CUT

33960-06G10

$82.31

14

O RING (D:3.5,ID;76)

09280-76005

$3.84

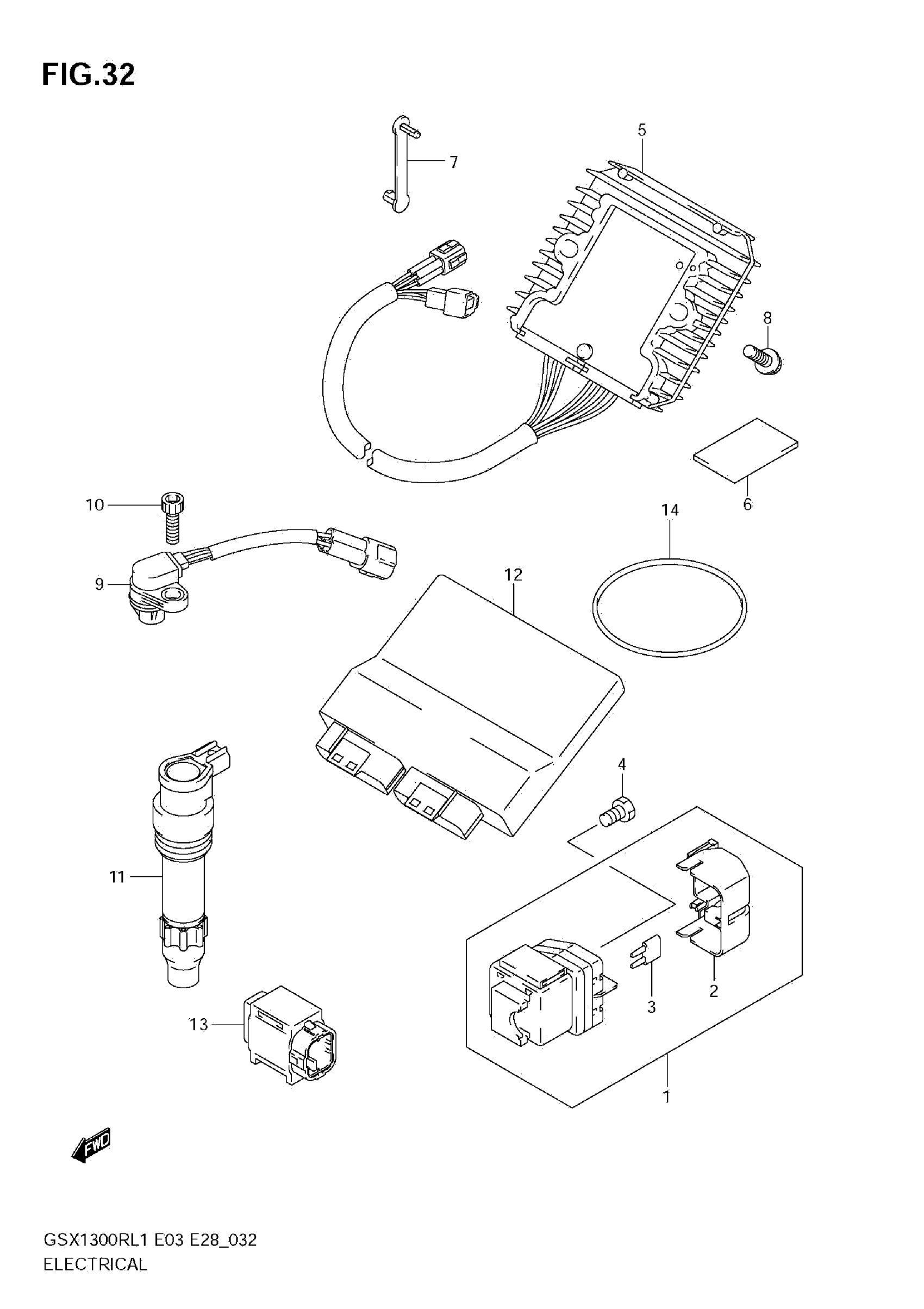

Suzuki GSX1300RL1 (2011) ELECTRICAL (E28) Diagram
