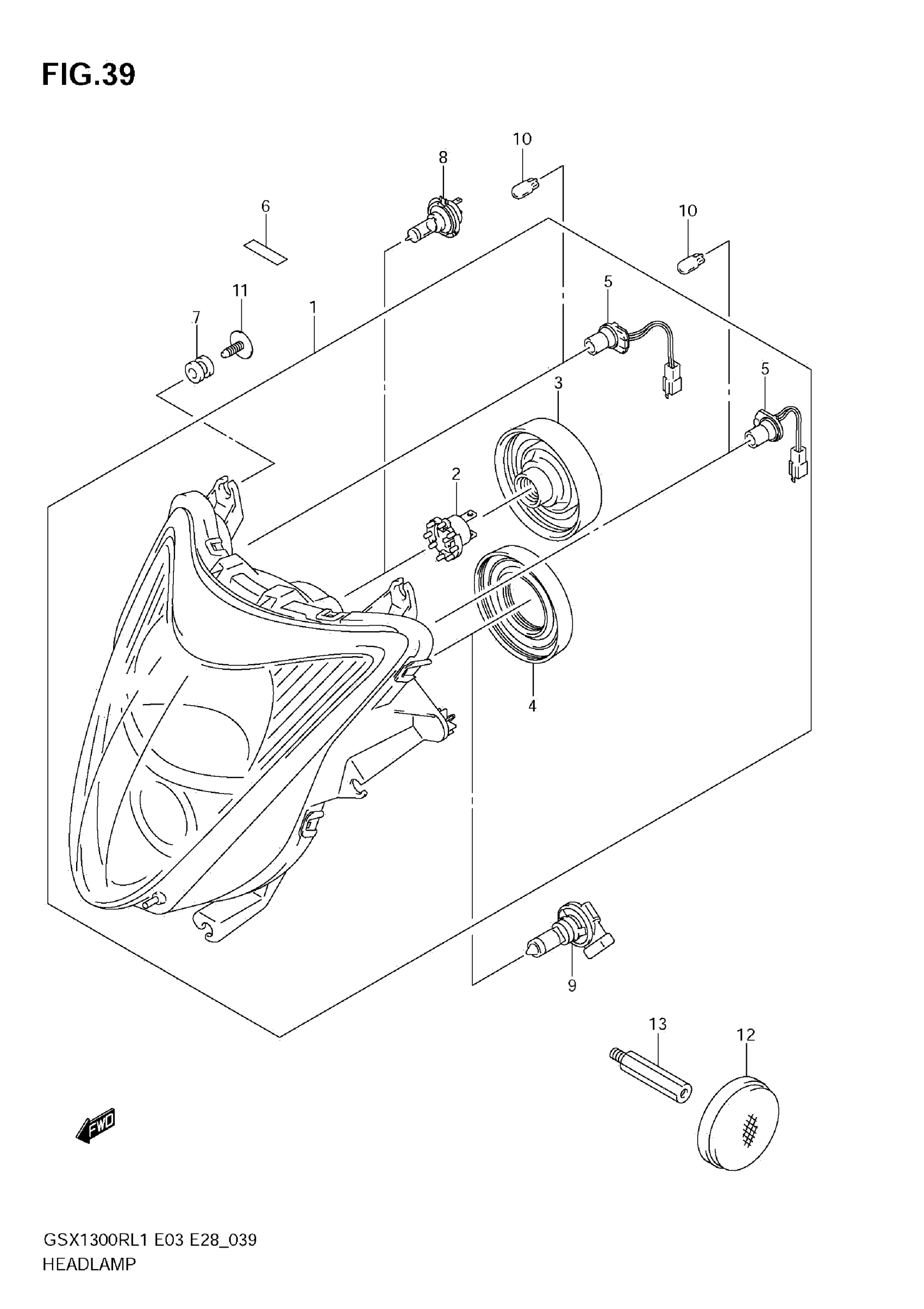

Suzuki GSX1300RL1 (2011) HEADLAMP Diagram

#

Description
Price

1

HEADLAMP ASSY This part replaces 35100-15H30-999.

35100-15H32-999

$484.00

2

ADAPTOR ASSY

35175-24F00

$17.70

3

SOCKET, COVER

35173-15H00

$30.70

4

SOCKET, COVER

35173-14G00

$12.74

5

CORD ASSY

36118-15H00

$17.59

6

TAPE,FR TURNSIGNAL (5X20X0.4)

94443-21H00

$4.47

7

.CUSHION (9X18X14) This part replaces 09320-09039.

09320-09059

$3.03

8

BULB (12V55W H7)

09471-12188

$21.31

9

BULB (12V65W)

09471-12222

$89.48

10

.BULB (12V5W)

09471-12216

$4.99

11

SCREW (5X15)

09136-05062

$2.25

12

REFLEX REFLECTOR ASSY, FR SID

35950-14A11

$14.56

13

BOLT, FR SIDE

09119-06104

$16.13
