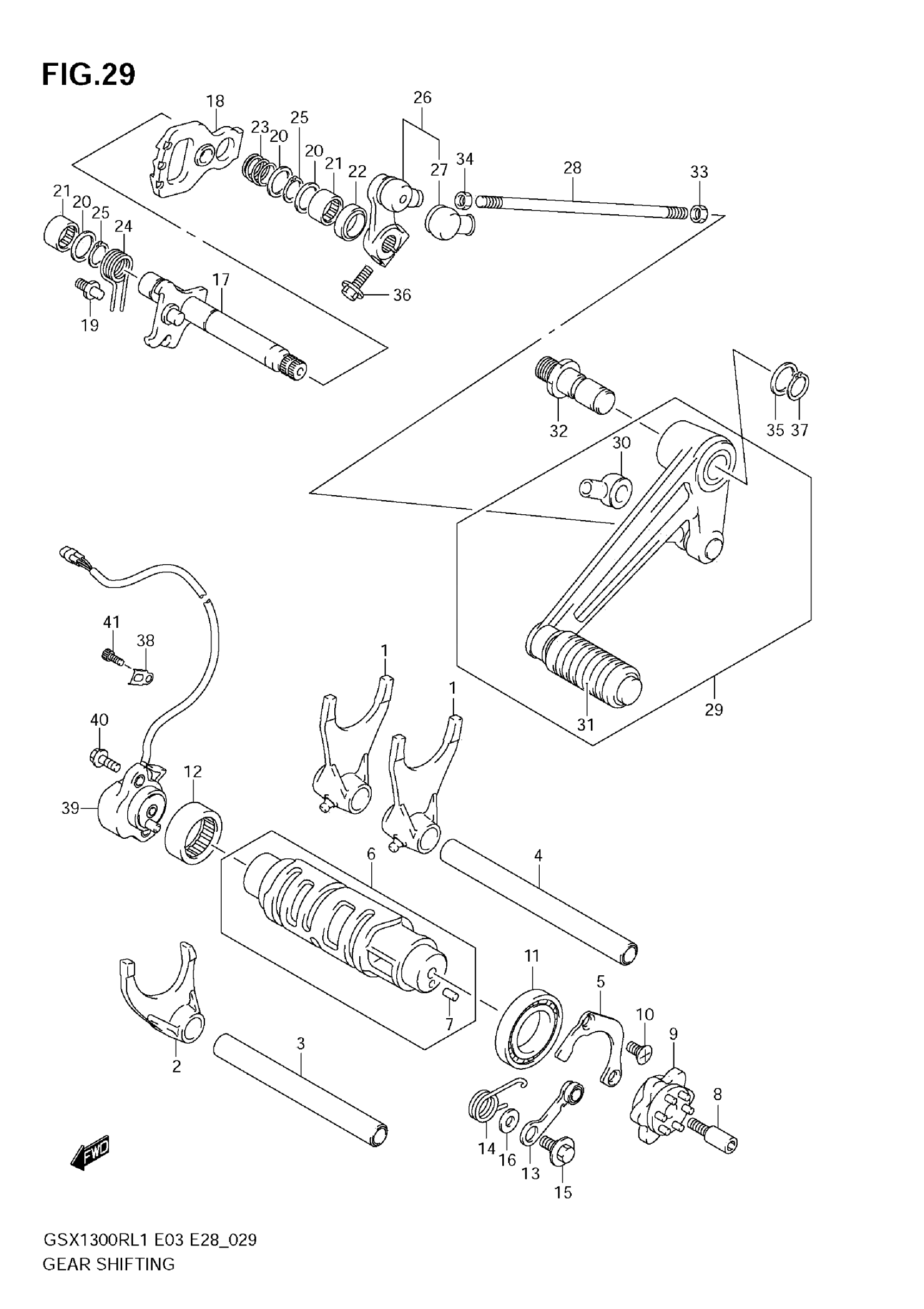

Find the part on the Gear Shifting diagram for your 2011 Suzuki GSX1300RL1, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2011 Suzuki GSX1300RL1 Gear Shifting Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

FORK,GEAR SHIFT NO.1

25211-24F20

2
Out of stock

2

FORK,GEAR SHIFT NO.3

25231-24F20

1
Out of stock

3

SHAFT, GEAR SHIFT NO.2 | L:132

25411-24F00

1
Out of stock

4

SHAFT, GEAR SHIFT NO.1 | L:152

25411-38B01

1
Out of stock

5

RETAINER,SHIFT CAM BEARING

24741-24F10

1
Out of stock

6

CAM, GEAR SHIFT

25310-24F00

1
Out of stock

7

PIN (4X13.8)

04221-04089

1
Out of stock

8

STOPPER,SHIFT CAM DRIVE PLATE

25312-42F01

1
Out of stock

9

PLATE, GEAR SHIFT CAM

25381-13E00

1
Out of stock

10

SCREW (6X12)

09126-06011

2
Out of stock

11

BEARING (25X47X8)

09262-25006

1
Out of stock

12

BEARING (25X32X12) | RH

09263-25018

1
Out of stock

13

STOPPER, SHIFT CAM

25350-24F00

1
Out of stock

14

SPRING, SHIFT CAM STOPPER

25355-24F00

1
Out of stock

15

BOLT (6X14.3)

09111-06041

1
Out of stock

16

WASHER

08211-06141

1
Out of stock

17

SHAFT,GEAR SHIF This part replaces 25510-15H00.

25510-15H01

1
Out of stock

18

PLATE,GEAR SHIFT CAM DRIVE This part replaces 25512-06G10.

25512-06G20

1
Out of stock

19

STOPPER, GEAR SHIFT ARM

25671-01011

1
Out of stock

20

SHIM (14X22X1) | RH

09181-14167

3
Out of stock

21

BEARING (14X20X12)

09263-14027

2
Out of stock

22

SEAL, SHIFT SHAFT (14X22X6) This part replaces 09283-14005.

09283-14006

1
Out of stock

23

SPRING

09440-17009

1
Out of stock

24

SPRING

09444-20001

1
Out of stock

25

CIRCLIP

08331-3114A

2
Out of stock

26

ARM,GEAR SHIFT This part replaces 25520-40F00.

25520-40F01

1
Out of stock

27

.COVER, DUST This part replaces 25526-47000.

25526-47001

1
Out of stock

28

ROD, GEAR SHIFT LINK (L:150)

25525-19F00

1
Out of stock

29

LEVER ASSY,GEAR This part replaces 25600-17G00.

25600-17G02

1
Out of stock

30

.COVER, DUST This part replaces 25526-47000.

25526-47001

1
Out of stock

31

RUBBER, GEAR SHIFT PEDAL

25652-20C00

1
Out of stock

32

SHAFT, GEAR SHIFT LEVER

25617-03F10

1
Out of stock

33

NUT

09140-06020

1
Out of stock

34

NUT | LH

09140-06025

1
Out of stock

35

WASHER (12.5X20X1)

09160-12011

1
Out of stock

36

BOLT

01500-0625A

1
Out of stock

37

CIRCLIP

08331-3112A

1
Out of stock

38

CLAMP, POSITION SENSOR LEAD

31497-45000

3
Out of stock

39

SENSOR ASSY,GEA This part replaces 37730-15H00.

37730-15H02

1
Out of stock

40

BOLT

07120-0516A

2
Out of stock

41

BOLT

07130-0510B

3
Out of stock
