Description

Price

1

GEAR ASSY, PRIMARY DRIVEN | NT:83

21200-24810

$598.90

2

WASHER (25X54X2.4)

09160-25073

$15.75

3

BEARING (35X40X39.8)

09263-35013

$32.08

4

HUB, CLUTCH SLEEVE

21410-24F00

$184.27

5

SPRING, CLUTCH

21413-24F30

$6.12

6

PLATE, CLUTCH DRIVE NO.2 | T:3.8

21441-24F10

$21.99

7

PLATE, CLUTCH DRIVE NO.1 | T:3.0

21441-24F30

$31.90

8

PLATE, CLUTCH DRIVE NO.3 | T:3.8

21442-24F00

$22.11

9

.PLATE,CLUTCH DRIVEN NO.1 (T: | T:2.0

21451-24F00

$10.61

10

PLATE, CLUTCH DRIVEN NO.2 | T:2.3

21451-24F10

$10.61

11

DISC, CLUTCH PRESSURE

21462-24F00

$48.00

12

.SEAT,WAVE WASHER

21471-24F00

$13.05

13

WASHER,CLUTCH PLATE WAVE

21472-06G00

$21.28

14

BOLT, CLUTCH SPRING SUPPORT This part replaces 21481-24F31.

21481-24F32

$9.29

15

BOLT, CLUTCH SPRING

21482-24F30

$3.22

16

CAM SET, CLUTCH

21610-02F12

$266.95

17

.WASHER (25X50X2.5)

09160-25056

$10.63

18

NUT

09159-24010

$11.92

19

WASHER

09164-24006

$3.38

20

ROD, CLUTCH (L:195.5)

23110-24F00

$20.93

21

ROD, CLUTCH PUSH (L:132.5)

23111-26D00

$14.54

22

COVER, CLUTCH RELEASE

23117-46E00

$6.21

23

PIECE, CLUTCH PUSH

23121-31E00

$22.52

24

CYLINDER,CLUTCH This part replaces 23160-15H00.

23160-15H01

$94.85

25

CUP

23163-10F00

$6.80

26

SPRING

23164-10F00

$5.80

27

BLEEDER

59121-01A00

$7.99

28

CAP, BLEEDER

59122-01A00

$3.97

29

WASHER (15.5X28X1)

09160-15045

$3.52

30

BEARING (15X28X2)

09263-15003

$7.49

31

SEAL, CLUTCH PUSH ROD OIL

09285-06015

$7.20

32

BOLT (6X25)

07130-0625A

$2.64

33

SCREW

02112-0610A

$1.59

34

PIN

04211-09129

$1.64

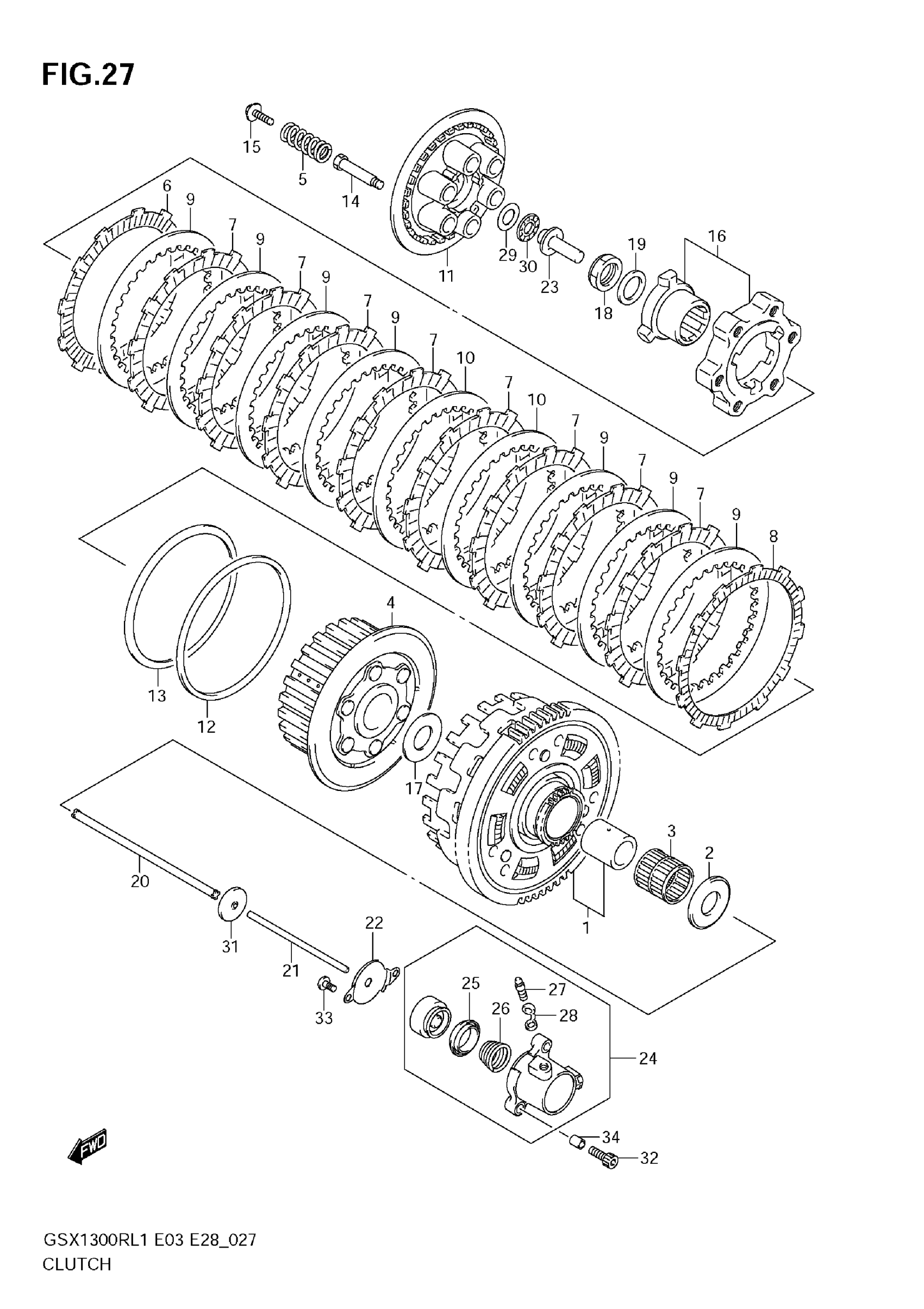

Suzuki GSX1300RL1 (2011) CLUTCH Diagram
