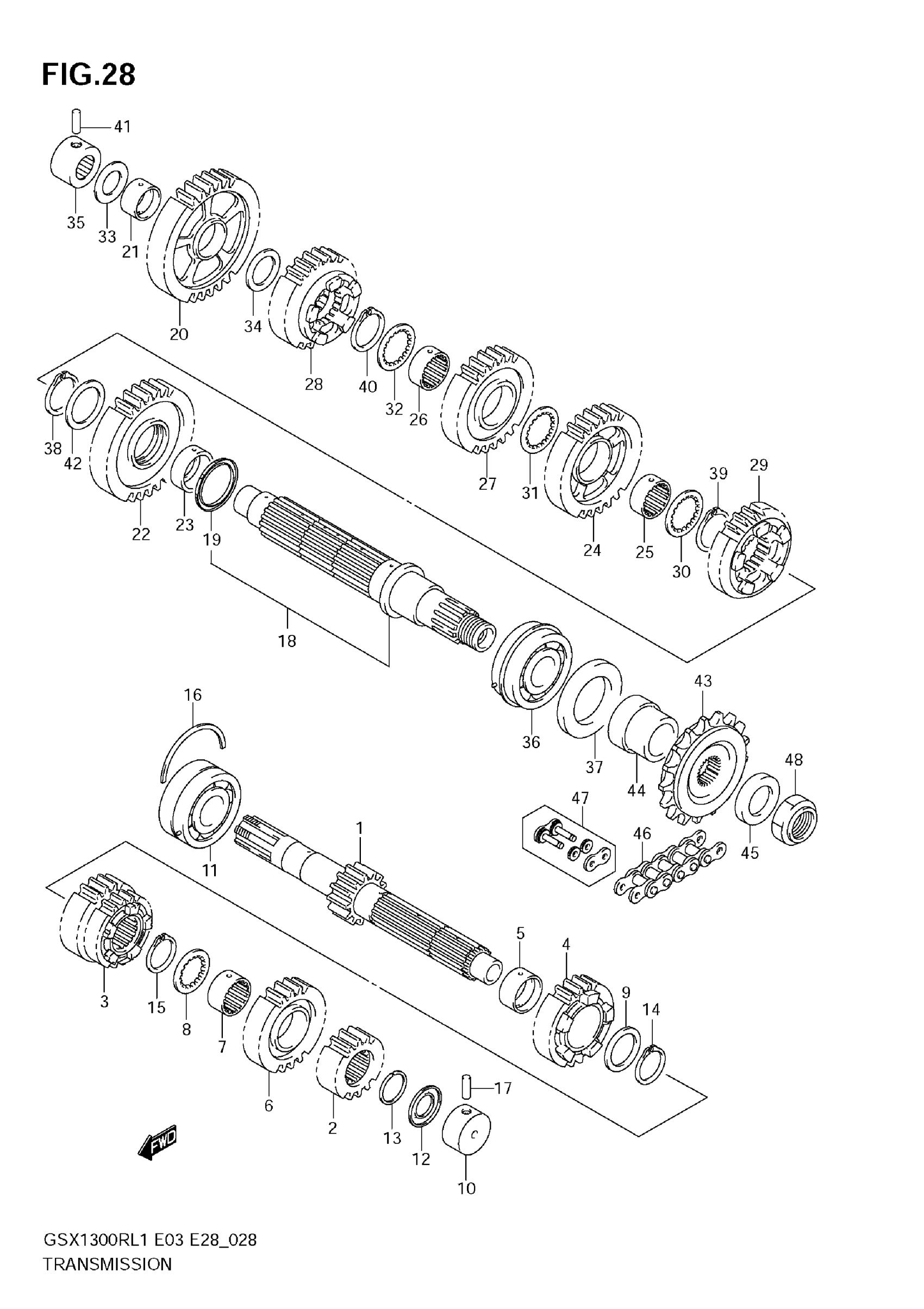

Suzuki GSX1300RL1 (2011) TRANSMISSION Diagram

#

Description
Price

1

SHAFT, COUNTER (NT:13)

24120-24F00

$370.18

2

GEAR,2ND DRIVE (NT:16)

24221-15H00

$147.00

3

GEAR, 3RD & 4TH DRIVE | NT:19/21

24231-15H00

$257.93

4

GEAR,5TH DRIVE (NT:22) This part replaces 24251-15H00.

24251-15H01

$210.02

5

BUSH, 5TH DRIVE GEAR

24252-24F10

$40.03

6

GEAR, 6TH DRIVE (NT:23)

24261-15H00

$210.02

7

BUSH, 6TH DRIVE GEAR

24262-24F10

$40.03

8

LOCK WASHER

09167-27003

$7.38

9

SHIM (27X36X2.5)

09181-27014

$6.87

10

BEARING (20X34X17.5) | LH

09263-20085

$83.37

11

BEARING (25X62X25.4) | RH

09267-25012

$169.68

12

OIL SEAL (20X31.2X2.7)

09285-20006

$5.88

13

CIRCLIP

09380-27004

$3.33

14

CIRCLIP

09380-27006

$2.73

15

CIRCLIP

09380-27006

$2.73

16

C RING | RH

09390-62012

$6.69

17

PIN | LH

04221-07209

$2.50

18

SHAFT, DRIVE

24130-15H00

$337.60

19

RING, DRIVE SHAFT FRICTION

24136-48G01

$44.80

20

GEAR, 1ST DRIVEN (NT:34)

24311-15H00

$214.50

21

BUSH, 1ST DRIVEN GEAR

24312-24F10

$40.03

22

GEAR,2ND DRIVEN (NT:31)

24321-15H00

$214.50

23

BUSH, 2ND DRIVEN GEAR

24322-48G00

$36.25

24

GEAR,3RD DRIVEN (NT:29)

24331-15H00

$214.50

25

BUSH, 3RD DRIVEN GEAR

24332-24F10

$38.53

26

BUSH, 4TH DRIVEN GEAR

24332-24F10

$38.53

27

GEAR,4TH DRIVEN (NT:27)

24341-15H00

$214.50

28

GEAR, 5TH DRIVEN (NT:25) This part replaces 24351-15H00.

24351-15H01

$219.87

29

GEAR,6TH DRIVEN (NT:24)

24361-15H00

$219.87

30

LOCK WASHER

09167-30008

$6.65

31

LOCK WASHER

09167-30008

$6.65

32

LOCK WASHER

09167-30008

$6.65

33

SHIM (20X34X1)

09181-20251

$2.77

34

SHIM (24X34X1)

09181-24005

$3.21

35

BEARING (20X34X20) | RH

09263-20040

$42.95

36

BEARING (30X62X23.8) | LH

09267-30011

$181.72

37

OIL SEAL (42X62X7)

09283-42018

$32.83

38

CIRCLIP

09380-30009

$3.15

39

CIRCLIP

09380-30009

$3.15

40

CIRCLIP

09380-30009

$3.15

41

PIN

04221-07209

$2.50

42

WASHER

08211-30405

$4.53

43

SPROCKET, ENGINE (NT:18)

27510-15H00

$167.05

44

SPACER,ENGINE SPROCKET NO.1

27531-15H00

$42.15

45

SPACER,ENGINE SPROCKET NO.2 (

27532-15H00

$18.00

46

CHAIN ASSY, DRIVE | RK GB50GSVZ4 L:118->114

27600-24F60-118

$661.62

47

JOINT SET, DRIVEN | OPT

27620-24F60

$23.82

48

NUT

09159-22008

$27.24
