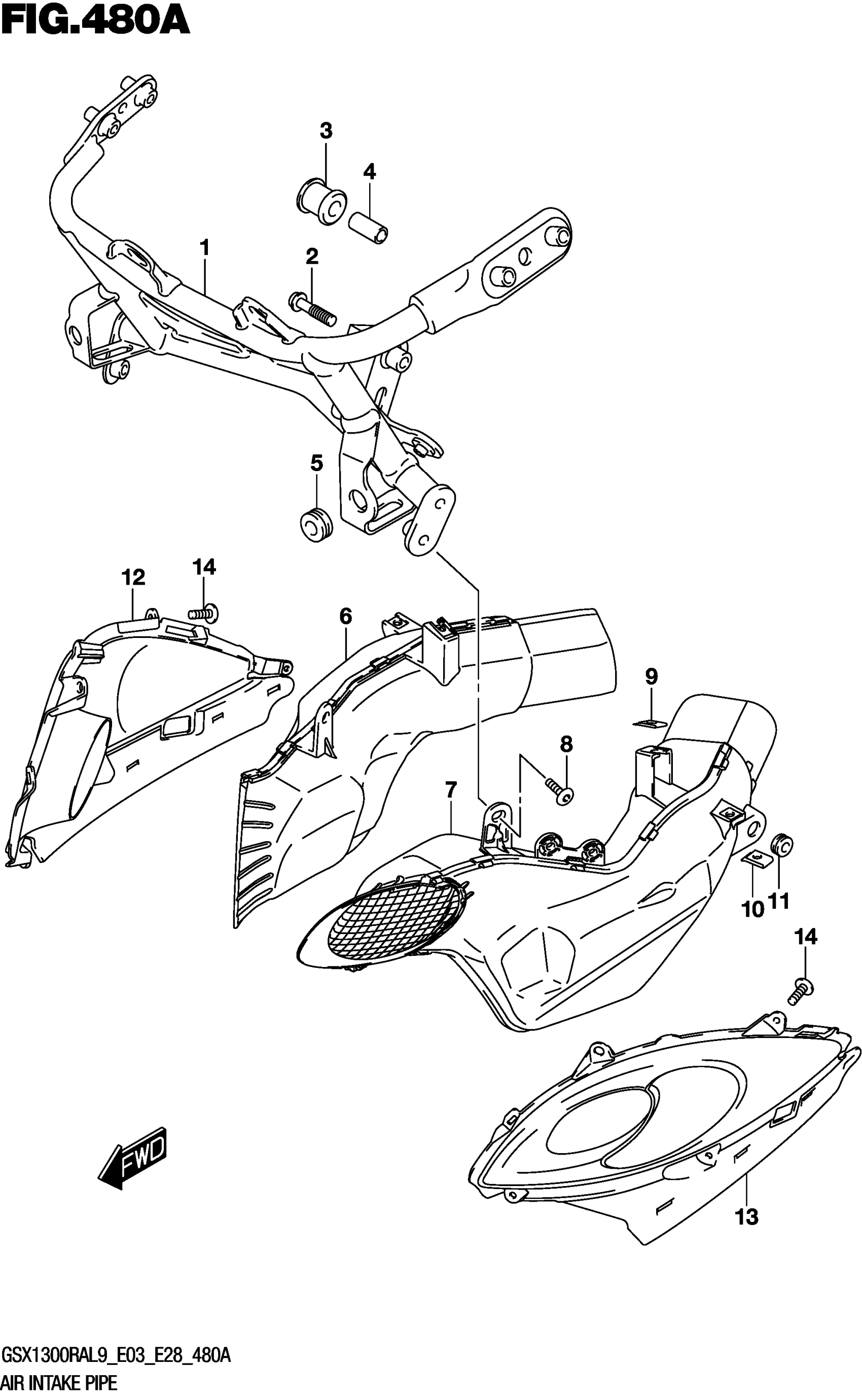

Suzuki GSX1300RAL9 (2019) AIR INTAKE PIPE Diagram

#

Description
Price

1

BRACE, COWLING

94510-15H01

$484.68

2

BOLT (8X40)

09103-08367

$4.12

3

CUSHION,COWLING BRACE

94541-41C00

$4.87

4

SPACER (8.6X12.2X26.5)

09180-08215

$3.84

5

CUSHION (8X26X7)

09320-08028

$2.80

6

PIPE, INTAKE RH

94420-15H01

$156.30

7

PIPE, INTAKE LH

94430-15H01

$156.30

8

SCREW

94423-15H00

$6.57

9

NUT COWL

94484-24F00

$3.63

10

NUT (M5)

09148-05038

$1.97

11

CUSHION (8X26X7)

09320-08028

$2.80

12-1

COVER,INTAKE,R This part replaces 94671-15H00-QEB.

94671-15H01-QEB

$290.48

12-2

COVER,INTAKE,R This part replaces 94671-15H00-YVB.

94671-15H01-YVB

$281.53

13-1

COVER,INTAKE,L This part replaces 94681-15H00-QEB.

94681-15H01-QEB

$320.13

13-2

COVER,INTAKE,L This part replaces 94681-15H00-YVB.

94681-15H01-YVB

$278.92

14

SCREW

03541-0516A

$1.37
