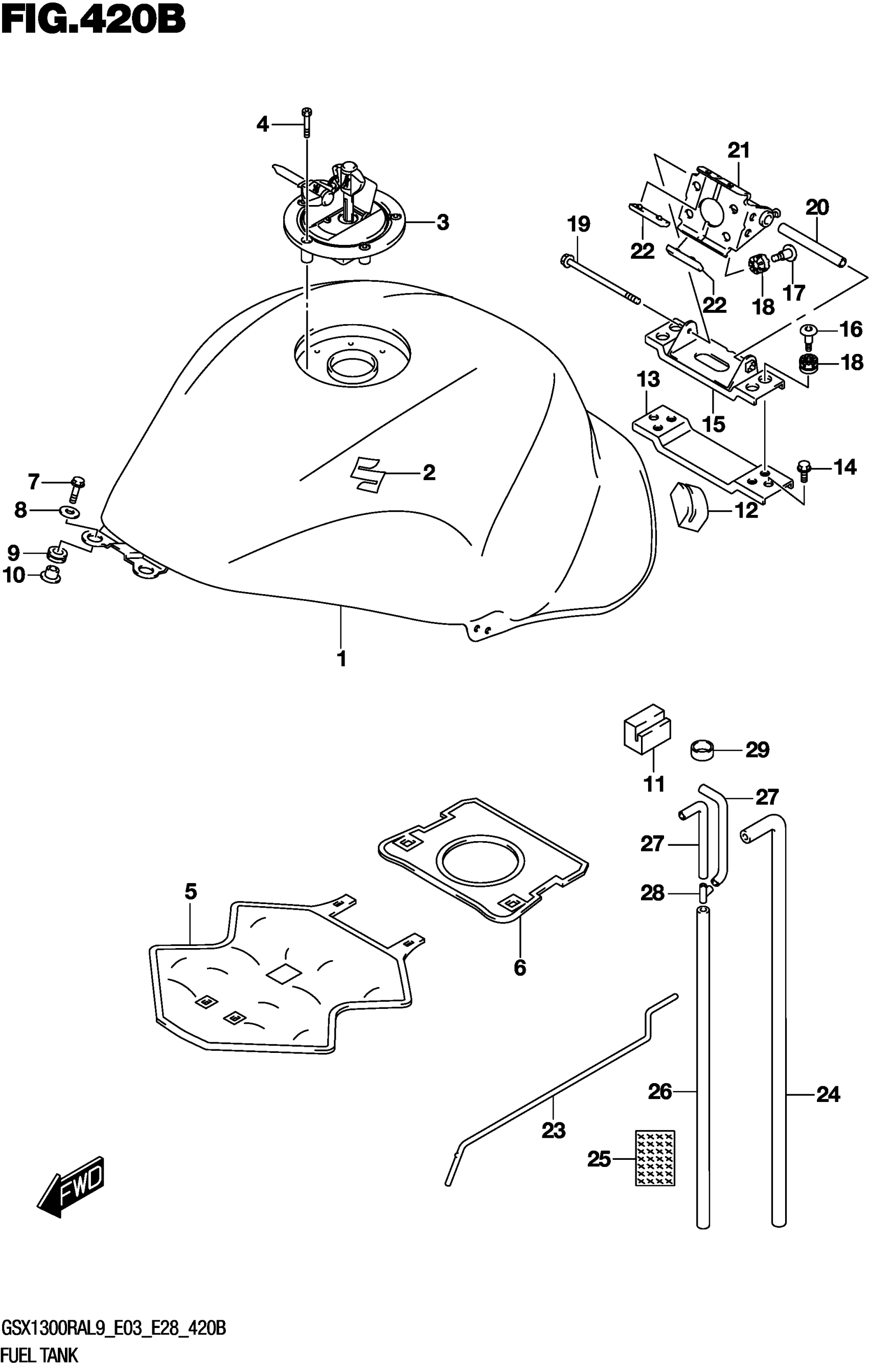

Suzuki GSX1300RAL9 (2019) FUEL TANK (GSX1300RAL9 E28) Diagram

#

Description
Price

1-1

TANK ASSY,FUEL( This part replaces 44100-15H61-QEB.

44100-15H62-QEB

$1,718.90

1-2

TANK ASSY,FUEL( This part replaces 44100-15H61-YVB.

44100-15H62-YVB

$1,559.43

2

EMBLEM, S

68111-47HA0

$37.02

3

CAP SET,FUEL TA This part replaces 44200-16850.

44200-16852

$108.21

4

BOLT (L:20)

09106-05017

$2.80

5

SHIELD,FUEL TANK HEAT NO.1

44191-15H00

$198.55

6

SHIELD, FUEL TANK HEAT NO.2

44191-15H10

$83.62

7

SCREW (6X30)

09139-06204

$5.92

8

WASHER This part replaces 09160-06012.

09160-06054

$1.62

9

CUSHION,FUEL TANK FRONT This part replaces 44511-16G00.

44511-16G01

$3.77

10

SPACER,FUEL TANK FR

44512-16G00

$6.80

11

CUSHION,FUEL TA This part replaces 44541-24F00.

44541-24F01

$5.38

12

CUSHION,FUEL TA This part replaces 44543-15H00.

44543-15H01

$5.78

13

BRACKET,FUEL TANK RR NO.3

44555-15H00

Unavailable

14

BOLT (8X16)

01550-0816A

$2.31

15

BRACKET, FUEL TANK REAR NO.2

44550-15H01

Unavailable

16

SCREW (6X22)

09139-06191

$3.69

17

SCREW (6X22)

09139-06191

$3.69

18

CUSHION (8X18X14)

09320-08071

$3.05

19

BOLT

07120-0695A

$2.40

20

SPACER,FUEL TANK RR

44561-18G00

$15.52

21

BRACKET, FUEL TANK REAR NO.1

44530-15H01

Unavailable

22

CUSHION, SEAT FRONT

45149-44G00

Unavailable

23

STAY,FUEL TANK | OPT

44574-35F00

$13.89

24

HOSE, DRAIN

44423-15H01

$25.20

25

SHIELD, DRAIN HOSE HEAT

44427-15H00

Unavailable

26

HOSE, BREATHER

44424-15H01

$22.88

27

HOSE,FUEL TANK BRTHR NO.3

44424-15H11

$15.48

28

3 WAY

09367-06007

$3.17

29

HOSE

09352-12164-010

Unavailable
