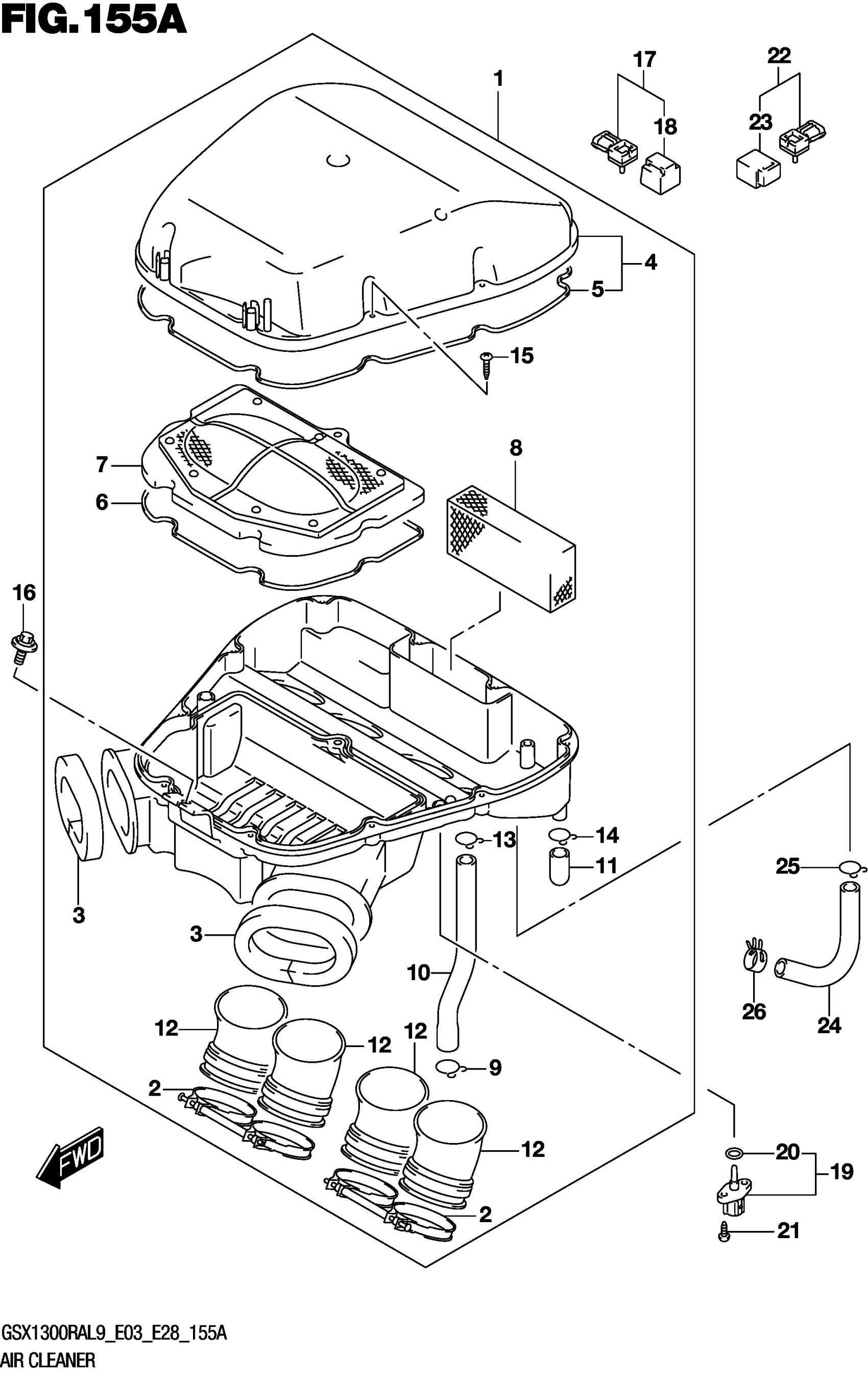

Suzuki GSX1300RAL9 (2019) AIR CLEANER Diagram

#

Description
Price

1

CLEANER ASSY, AIR

13700-15H02

Unavailable

2

CLAMP,INTAKE PIPE

13170-15H10

$25.51

3

.CUSHION, DUCT

13736-15H01

$9.26

4

.CAP, AIR CLEANER

13740-15H00

$107.32

5

..GASKET, CAP

13746-15H00

$13.35

6

.GASKET, CASE

13756-15H00

$9.70

7

.FILTER ASSY

13780-15H00

$41.31

8

.FILTER, BREATHER

13788-15H00

$4.73

9

.CLIP (ID:16.5)

09401-16401

$2.87

10

TUBE,BREATHER This part replaces 13853-15H00.

13853-15H01

$11.80

11

.PLUG

13859-41B10

$6.94

12

TUBE,OUTLET B This part replaces 13882-41G00.

13882-41G01

$27.37

13

.CLIP (ID:14.5)

09401-14101

$2.37

14

.CLIP (ID:14.5)

09401-14101

$2.37

15

SCREW

03541-0525A

$1.80

16

BOLT (6X16)

09116-06130

$2.19

17

SENSOR,BOOST

15630-29G40

$342.38

18

.COVER

15625-29G40

Unavailable

19

SENSOR,AIR TEMP

13650-14G10

$47.66

20

.O-RING

13655-14G10

$11.18

21

SCREW

03511-0516A

$1.88

22

SENSOR, AIR PRESSURE

15630-29G30

$342.38

23

.COVER

15625-29G30

Unavailable

24

HOSE, ISC VALVE

13697-15H00

Unavailable

25

CLIP (ID:15.5)

09401-15101

$2.28

26

CLAMP

09401-16403

$3.08
