2017 Suzuki GSX1300RAL7 Air Intake Pipe Diagram

← All diagrams

Find the part on the Air Intake Pipe diagram for your 2017 Suzuki GSX1300RAL7, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

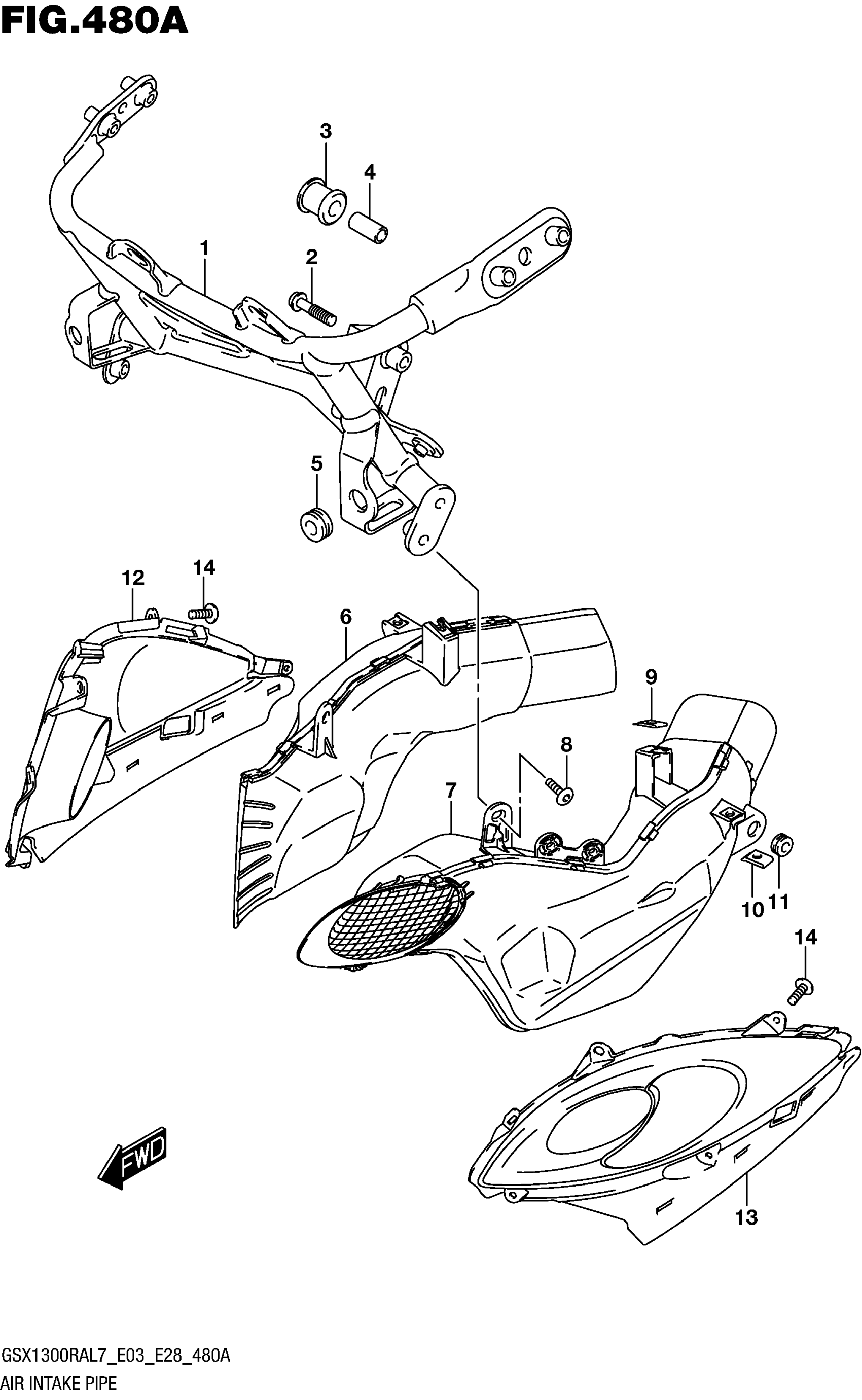

2017 Suzuki GSX1300RAL7 Air Intake Pipe Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

BRACE, COWLING

94510-15H01

1

$484.68

In stock

2

BOLT (8X40)

09103-08367

2

$4.12

In stock

3

CUSHION, UPPER

94541-41C00

1

$5.32

In stock

4

1

$4.14

In stock

5

CUSHION

09320-08028

2
Out of stock

6

PIPE, INTAKE RH

94420-15H01

1

$156.30

In stock

7

PIPE, INTAKE LH

94430-15H01

1

$156.30

In stock

8

SCREW

94423-15H00

2

$6.57

In stock

9

NUT COWL

94484-24F00

2
Out of stock

10

NUT

09148-05038

2
Out of stock

11

CUSHION

09320-08028

2
Out of stock

12-1

1

$281.53

In stock

12-2

1

$371.38

In stock

12-3

1

$317.15

In stock

13-1

1

$278.92

In stock

13-2

1

$278.92

In stock

13-3

1

$278.92

In stock

14

SCREW

03541-0516A

8
Out of stock

15

COLOR :

SPECIAL NOTE

—
Out of stock

15

AGT=YVB(BLACK),YWW(WHITE)

SPECIAL NOTE

—
Out of stock

15

BBD=YKY(BLUE),YVB(BLACK)

SPECIAL NOTE

—
Out of stock
