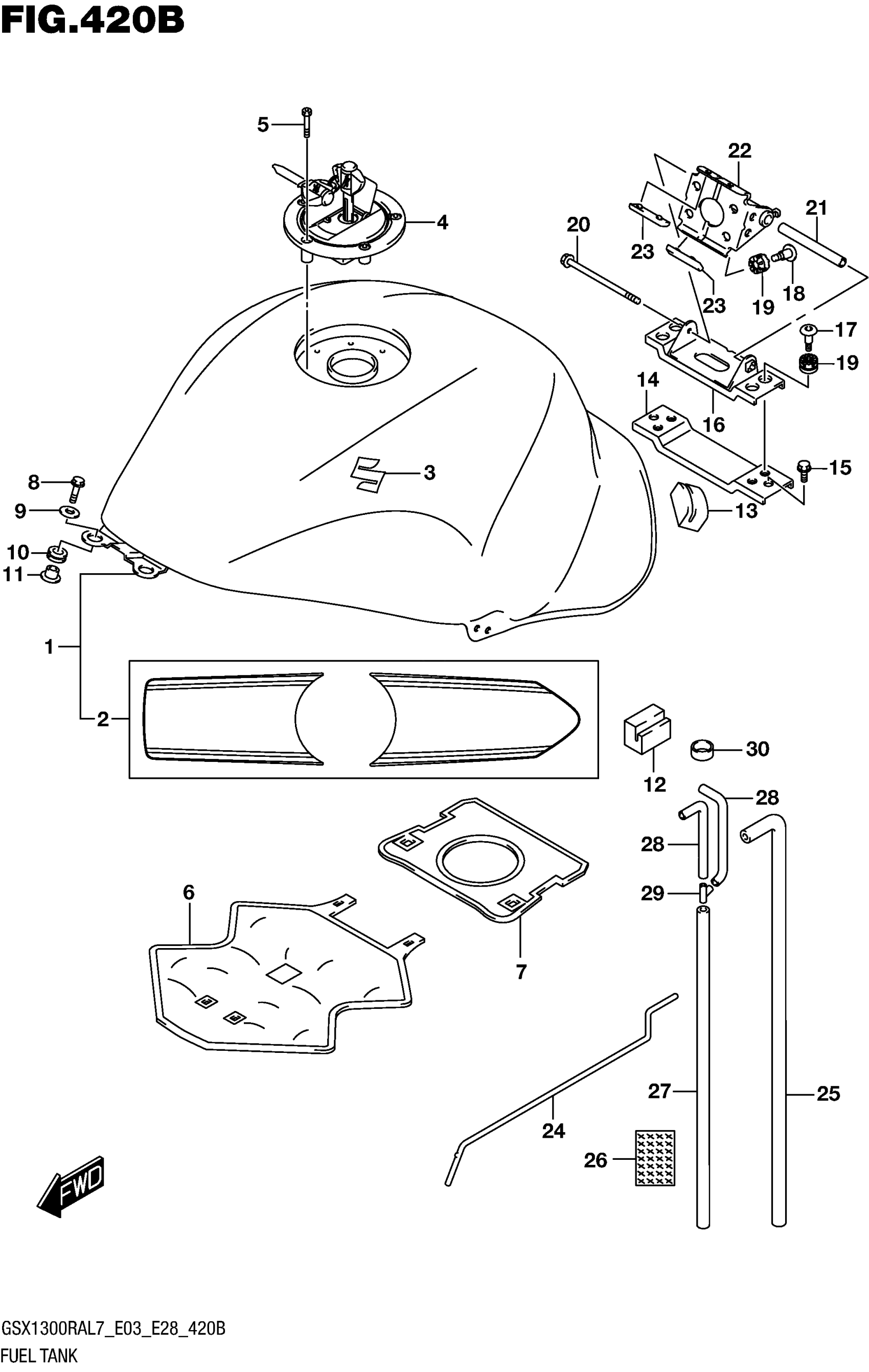

Suzuki GSX1300RAL7 (2017) FUEL TANK (GSX1300RAL7 E28) Diagram

#

Description
Price

1-1

TANK ASSY,FUEL( | FOR YVB This part replaces 44100-15HJ0-YVB.

44100-15HJ1-YVB

$1,717.75

1-2

TANK ASSY,FUEL( | FOR AGT This part replaces 44100-15HJ0-YWW.

44100-15HJ1-YWW

$1,545.23

1-3

TANK ASSY,FUEL( | FOR BBD This part replaces 44100-15HJ0-YKY.

44100-15HJ1-YKY

$1,430.75

2-1

.TAPE SET (BLACK/GRAY) | FOR YVB

68110-15H50-BF2

$81.25

2-2

.TAPE SET (BLACK/WHITE) | FOR YWW

68110-15H50-AGT

$81.25

2-3

.TAPE SET (BLUE/WHITE) | FOR YKY

68110-15H50-AJP

$81.25

3

EMBLEM, "S"

68111-47HA0

$38.68

4

CAP SET,FUEL TA This part replaces 44200-16850.

44200-16852

$112.54

5

BOLT (5X20)

09106-05017

$2.80

6

SHIELD, FUEL TANK HEAT NO.1

44191-15H00

$198.55

7

SHIELD, FUEL TANK HEAT NO.2

44191-15H10

$83.62

8

SCREW (6X30)

09139-06204

$5.92

9

WASHER This part replaces 09160-06012.

09160-06054

$1.66

10

CUSHION,FUEL TANK FRONT This part replaces 44511-16G00.

44511-16G01

$3.94

11

SPACER

44512-16G00

$7.11

12

CUSHION,FUEL TA This part replaces 44541-24F00.

44541-24F01

$5.62

13

CUSHION,FUEL TA This part replaces 44543-15H00.

44543-15H01

$5.78

14

BRACKET, FUEL TANK REAR NO.3

44555-15H00

Unavailable

15

BOLT (8X16)

01550-0816A

$2.38

16

BRACKET, FUEL TANK REAR NO.2

44550-15H01

Unavailable

17

SCREW (6X22)

09139-06191

$3.79

18

SCREW (6X22)

09139-06191

$3.79

19

CUSHION

09320-08071

$3.16

20

BOLT

07120-0695A

$2.40

21

SPACER, FUEL TANK REAR

44561-18G00

$16.22

22

BRACKET, FUEL TANK REAR NO.1

44530-15H01

Unavailable

23

CUSHION, BRACKET

45149-44G00

Unavailable

24

STAY | OPT

44574-35F00

$14.51

25

HOSE, DRAIN This part replaces 44423-15H00.

44423-15H01

$25.20

26

SHIELD, DRAIN HOSE HEAT

44427-15H00

Unavailable

27

HOSE, BREATHER This part replaces 44424-15H00.

44424-15H01

$22.88

28

HOSE,FUEL TANK BRTHR NO.3 This part replaces 44424-15H10.

44424-15H11

$15.48

29

3 WAY

09367-06007

$3.29

30

HOSE (12X16X600) | L:600->10

09352-12163-600

Unavailable

31

COLOR :

SPECIAL NOTE

Unavailable

31

AGT=YVB(BLACK),YWW(WHITE)

SPECIAL NOTE

Unavailable

31

BBD=YKY(BLUE),YVB(BLACK)

SPECIAL NOTE

Unavailable
