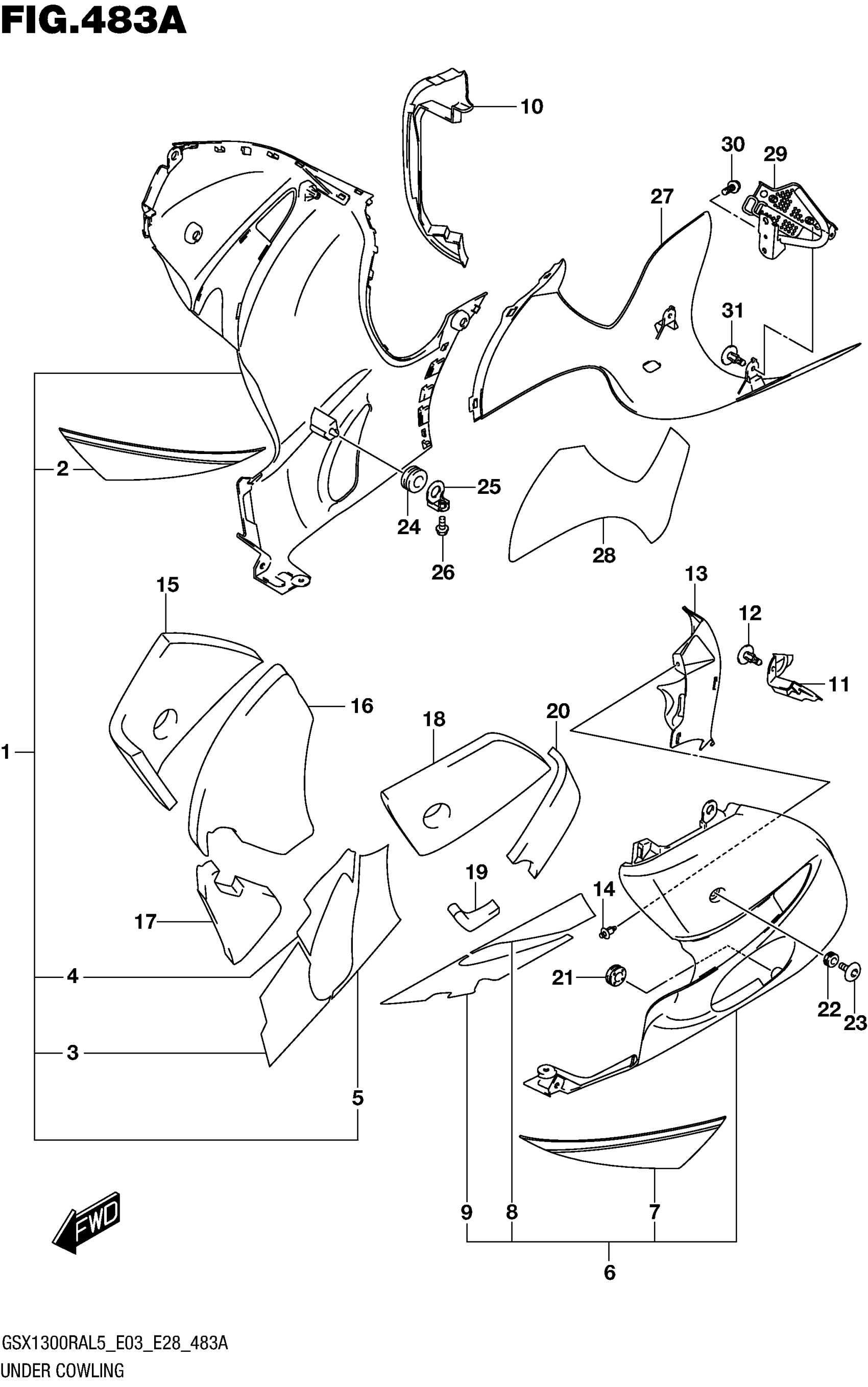

Suzuki GSX1300RAL5 (2015) UNDER COWLING Diagram

#

Description
Price

1

COWLING, UNDER RH (GRAY) | FOR AA3

94470-15H50-YLF

$349.12

1

COWLING, UNDER RH (SILVER) | FOR ARA

94470-15H50-YMD

$365.93

1

COWLING, UNDER RH (SILVER) | FOR ASU

94470-15H50-5JX

$362.62

2

TAPE, UNDER COWLING, RH | FOR YLF

68185-15H50-A3Z

$50.83

2

TAPE, UNDER COWLING, RH | FOR YMD

68185-15H50-A31

Unavailable

2

TAPE, UNDER COWLING, RH | FOR 5JX

68185-15H50-A32

Unavailable

3

SHIELD, HEAT RH NO.1

94472-15H00

$25.95

4

SHIELD, HEAT RH NO.3

94472-15H20

$17.20

5

SHIELD, HEAT RH NO.2

94472-15H10

$25.95

6

COWLING, UNDER LH (GRAY) | FOR AA3

94480-15H50-YLF

$365.93

6

COWLING, UNDER LH (SILVER) | FOR ARA

94480-15H50-YMD

Unavailable

6

COWLING, UNDER LH (SILVER) | FOR ASU

94480-15H50-5JX

$321.07

7

TAPE, UNDER COWLING, LH | FOR YLF

68195-15H50-A3Z

$50.83

7

TAPE, UNDER COWLING, LH | FOR YMD

68195-15H50-A31

Unavailable

7

TAPE, UNDER COWLING, LH | FOR 5JX

68195-15H50-A32

$50.83

8

SHIELD, HEAT LH NO.1

94482-15H00

$27.73

9

SHIELD, HEAT LH NO.2

94482-15H10

$18.42

10

PROTECTOR, RH

94475-15H00

$37.62

11

PROTECTOR, LH

94485-15H00

$20.65

12

CLIP, LH

94479-35F00

$5.14

13

COVER, UNDER LH

94489-15H00

$35.65

14

CLIP (BLACK) | LH

09409-06314-5PK

$2.80

15

CUSHION, UNDER COWL RH NO.1

94478-15H00

$73.63

16

CUSHION, UNDER COWL RH NO.2

94478-15H10

$60.38

17

CUSHION, UNDER COWL RH NO.3

94478-15H20

$19.56

18

CUSHION, UNDER COWL LH NO.1

94488-15H00

$56.87

19

CUSHION, UNDER COWL LH NO.2

94488-15H10

$28.07

20

CUSHION, UNDER COWL LH NO.3 This part replaces 94488-15H20.

94488-15H21

$28.18

21

CUSHION, LH

94479-15H00

$4.22

22

CUSHION

09320-09016

$1.97

23

BOLT (6X20)

09139-06190

$3.77

24

CUSHION

09320-08028

$2.80

25

PLATE, UNDER COWL

94560-15H00

$14.18

26

BOLT

01550-0612B

$2.38

27

COWLING, UNDER REAR (GRAY) | FOR AA3

94661-15H00-YLF

$380.47

27

COWLING, UNDER REAR (SILVER) | FOR ARA,ASU

94661-15H00-YMD

$409.05

28

SHIELD, HEAT

94667-15H00

$31.98

29

BRACKET, REAR COWLING This part replaces 94540-15H00.

94540-15H01

$93.08

30

BOLT (8X16)

01550-0816A

$2.31

31

CLIP

94479-35F00

$5.14
