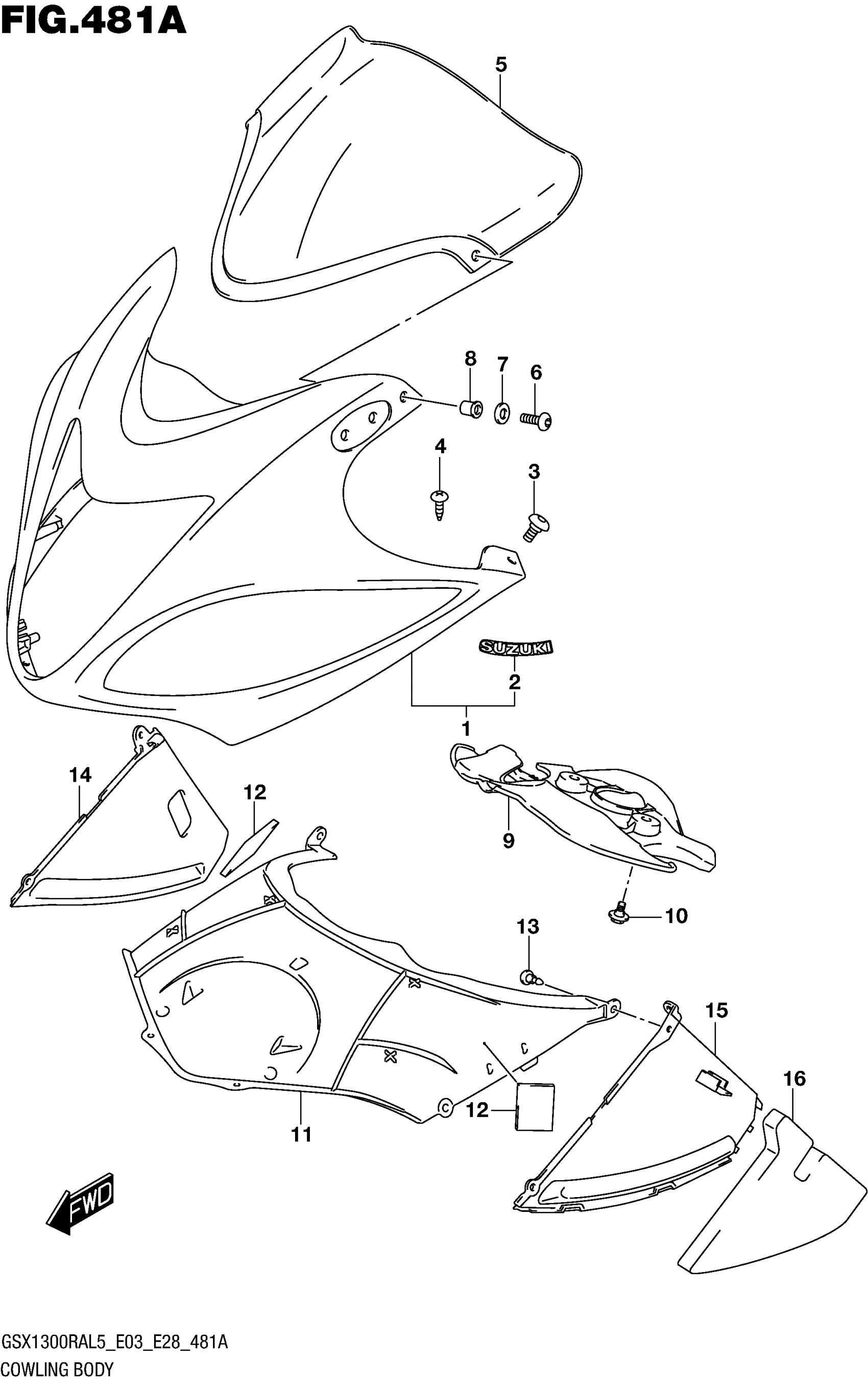

Suzuki GSX1300RAL5 (2015) COWLING BODY (GSX1300RAL5 E03) Diagram

#

Description
Price

1

BODY, COWLING (WHITE) | FOR AA3

94401-15H60-RB5

Unavailable

1

COWLING ASSY,BO | FOR ARA This part replaces 94401-15H60-YKY.

94401-15H62-YKY

$1,181.71

1

COWLING ASSY,BO | FOR ASU This part replaces 94401-15H60-YVB.

94401-15H62-YVB

$638.85

2

EMBLEM, "SUZUKI This part replaces 68281-24F10-17U.

68281-24F11-17U

$14.45

3

SCREW (5X16)

09139-05077

$2.97

4

SCREW (5X16)

09132-05053

$2.26

5

WINDSCREEN

94611-15H00

$328.55

6

SCREW (5X14)

09139-05025

$1.89

7

WASHER

08322-0105B

$2.24

8

NUT

09159-05019

$6.44

9

COVER,LWR BRACKET

94458-15H10

$19.68

10

BOLT (6X12)

09111-06107

$2.66

11

COVER, BODY COWL This part replaces 94419-15H01.

94419-15H02

$34.23

12

CUSHION, COVER

36930-60A10

$2.80

13

CLIP (BLACK)

09409-06314-5PK

$2.80

14

COWL, INNER RH

94461-15H00

$60.70

15

COWL, INNER LH

94462-15H00

$62.77

16

CUSHION, LH

94463-15H00

$46.58
