2015 Suzuki GSX1300RAL5 Footrest Diagram

← All diagrams

Find the part on the Footrest diagram for your 2015 Suzuki GSX1300RAL5, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

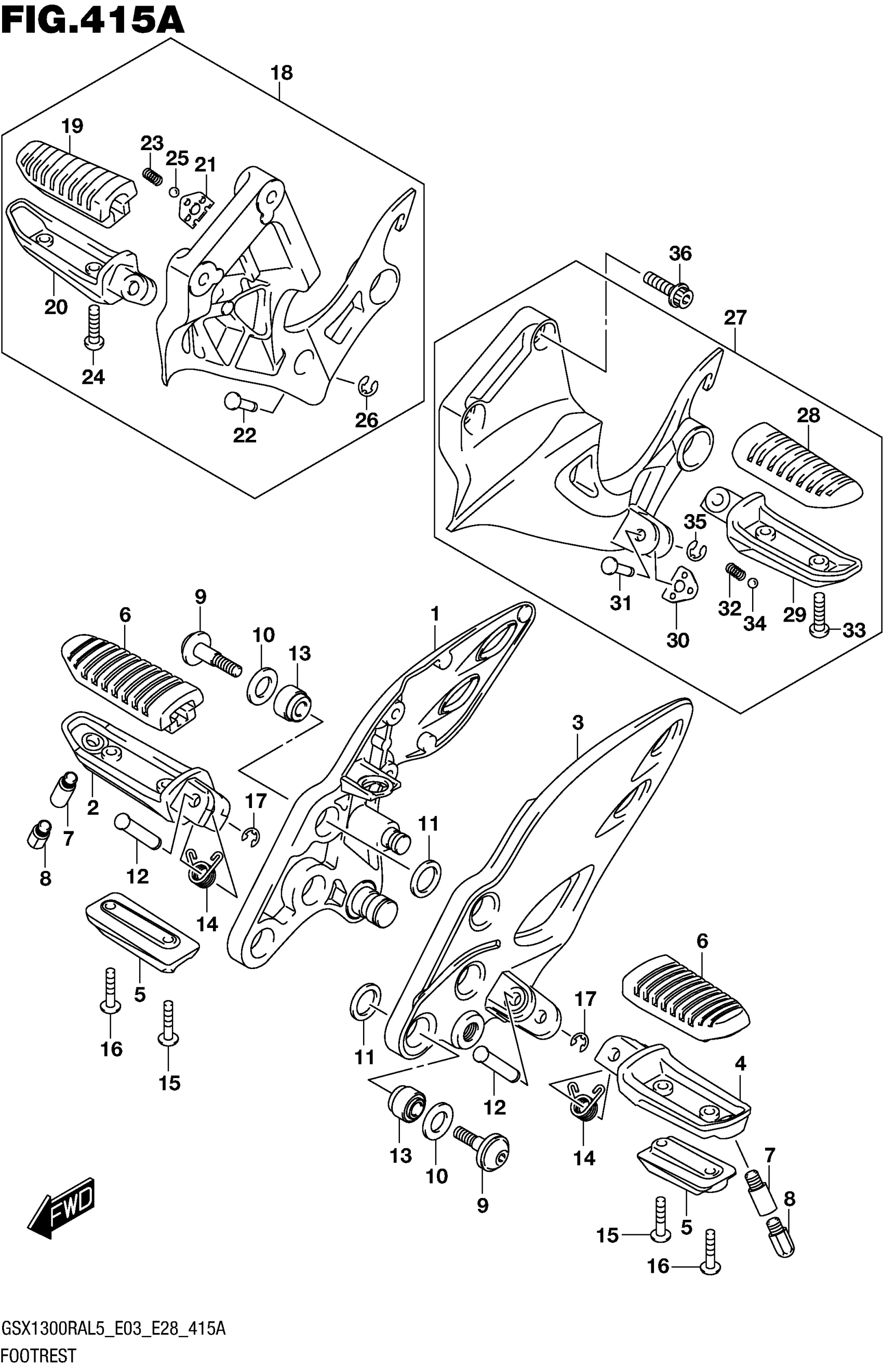

2015 Suzuki GSX1300RAL5 Footrest Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

BRACKET, FRONT FOOTREST RH

43510-15H00

1
Out of stock

2

BAR,FR FOOTREST,R

43511-44G10

1
Out of stock

3

BRACKET, FRONT FOOTREST LH

43521-15H00

1
Out of stock

4

BAR,FR FOOTREST,L

43521-44G10

1
Out of stock

5

BALANCER, FRONT FOOTREST

43536-44G00

2
Out of stock

6

RUBBER, FOOTREST

43550-44G10

2
Out of stock

7

SENSOR,FOOTREST

43576-15H00

2
Out of stock

8

BOLT, BANK SENSOR

43576-15H10

2
Out of stock

9

BOLT (8X30)

09106-08147

6
Out of stock

10

WASHER (13.7X24X2)

09161-13004

6
Out of stock

11

WASHER (17.2X24X2.2)

09161-17002

6
Out of stock

12

PIN

09208-08019

2
Out of stock

13

BUSH (8.4X20X16)

09319-08045

6
Out of stock

14

SPRING

09448-14046

2
Out of stock

15

SCREW

02142-0525A

2
Out of stock

16

SCREW

02142-0530A

2
Out of stock

17

E RING

08332-1106A

2
Out of stock

18

1

$265.18

In stock

19

RUBBER

43550-44G00

1
Out of stock

20

1

$61.88

In stock

21

PLATE,PILLION FOOTREST

43816-01H10

1
Out of stock

22

PIN

09208-08020

1
Out of stock

23

SPRING

09440-05003

1
Out of stock

24

SCREW

02142-0516A

2
Out of stock

25

BALL

06111-07004

1
Out of stock

26

E RING

08332-1106A

1
Out of stock

27

1

$265.18

In stock

28

RUBBER

43550-44G00

1
Out of stock

29

1

$61.88

In stock

30

PLATE,PILLION FOOTREST

43816-01H10

1
Out of stock

31

PIN

09208-08020

1
Out of stock

32

SPRING

09440-05003

1
Out of stock

33

SCREW

02142-0516A

2
Out of stock

34

BALL

06111-07004

1
Out of stock

35

E RING

08332-1106A

1
Out of stock

36

BOLT (8X30)

09106-08121

4
Out of stock
