2014 Suzuki GSX1300RAL4 Throttle Body Diagram

← All diagrams

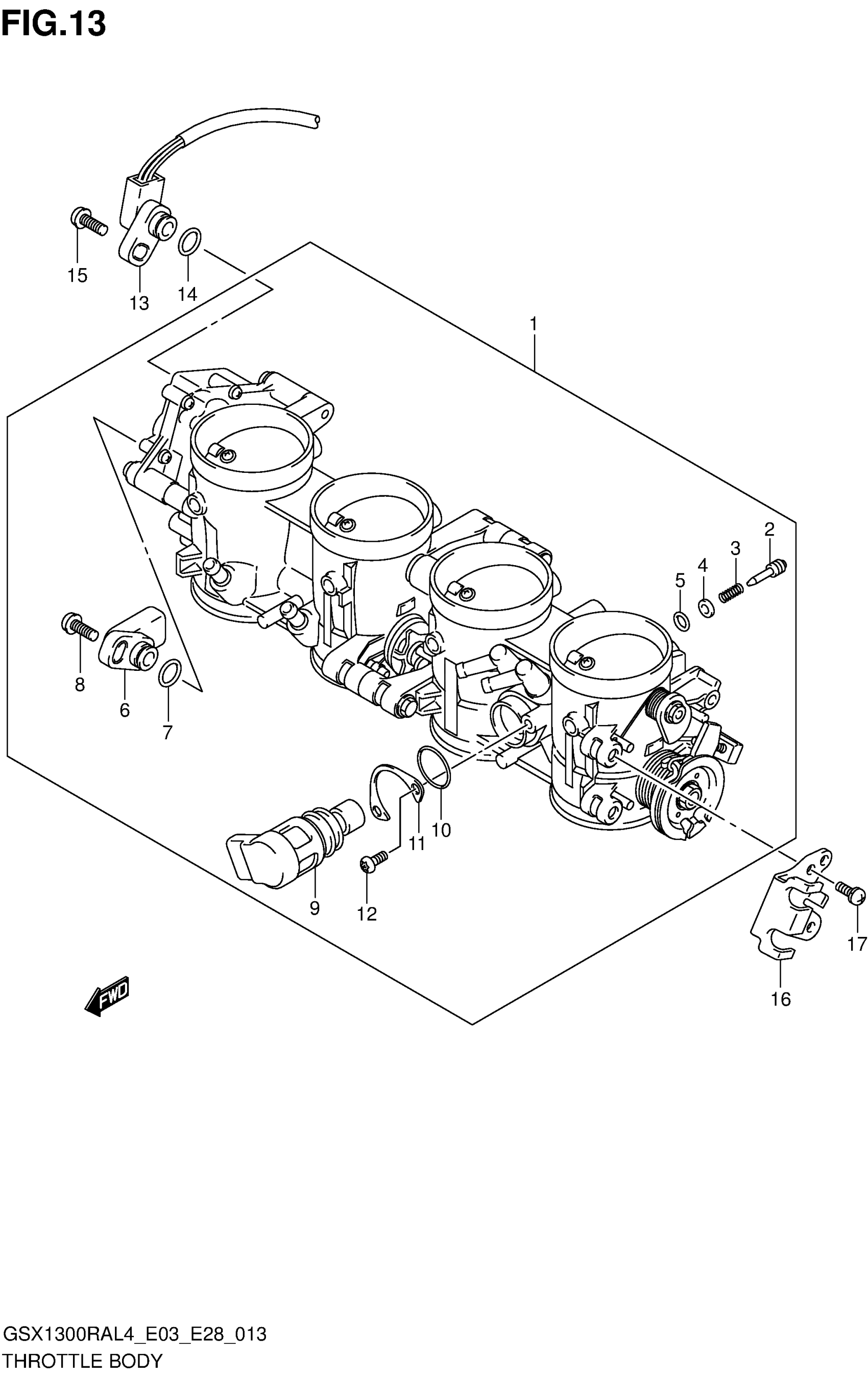

Find the part on the Throttle Body diagram for your 2014 Suzuki GSX1300RAL4, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2014 Suzuki GSX1300RAL4 Throttle Body Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

THROTTLE BODY

13406-15H20

1
Out of stock

2

SCREW, AIR ADJUST

13269-18G00

4
Out of stock

3

SPRING, AIR SCREW

13271-43E00

4
Out of stock

4

WASHER

13291-26E00

4
Out of stock

5

O RING

13295-26E00

4
Out of stock

6

SENSOR ASSY, THROTTLE MAIN

13580-18G00

1
Out of stock

7

O RING

13575-40F00

1
Out of stock

8

SCREW

13605-40F00

1
Out of stock

9

.VALVE ASSY, ISC This part replaces 18117-15H11.

18117-15H12

1
Out of stock

10

O RING

18119-05H00

1
Out of stock

11

PLATE, ISC VALVE

13428-15H00

1
Out of stock

12

SCREW

13605-15H00

2
Out of stock

13

SENSOR ASSY, THROTTLE SUB

13580-40F31

1
Out of stock

14

O RING

13575-40F00

1
Out of stock

15

SCREW

13605-40F00

1
Out of stock

16

PLATE, STAY

13565-15H00

1
Out of stock

17

SCREW

13601-21H00

2
Out of stock
