2014 Suzuki GSX1300RAL4 Fuel Pump Diagram

← All diagrams

Find the part on the Fuel Pump diagram for your 2014 Suzuki GSX1300RAL4, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

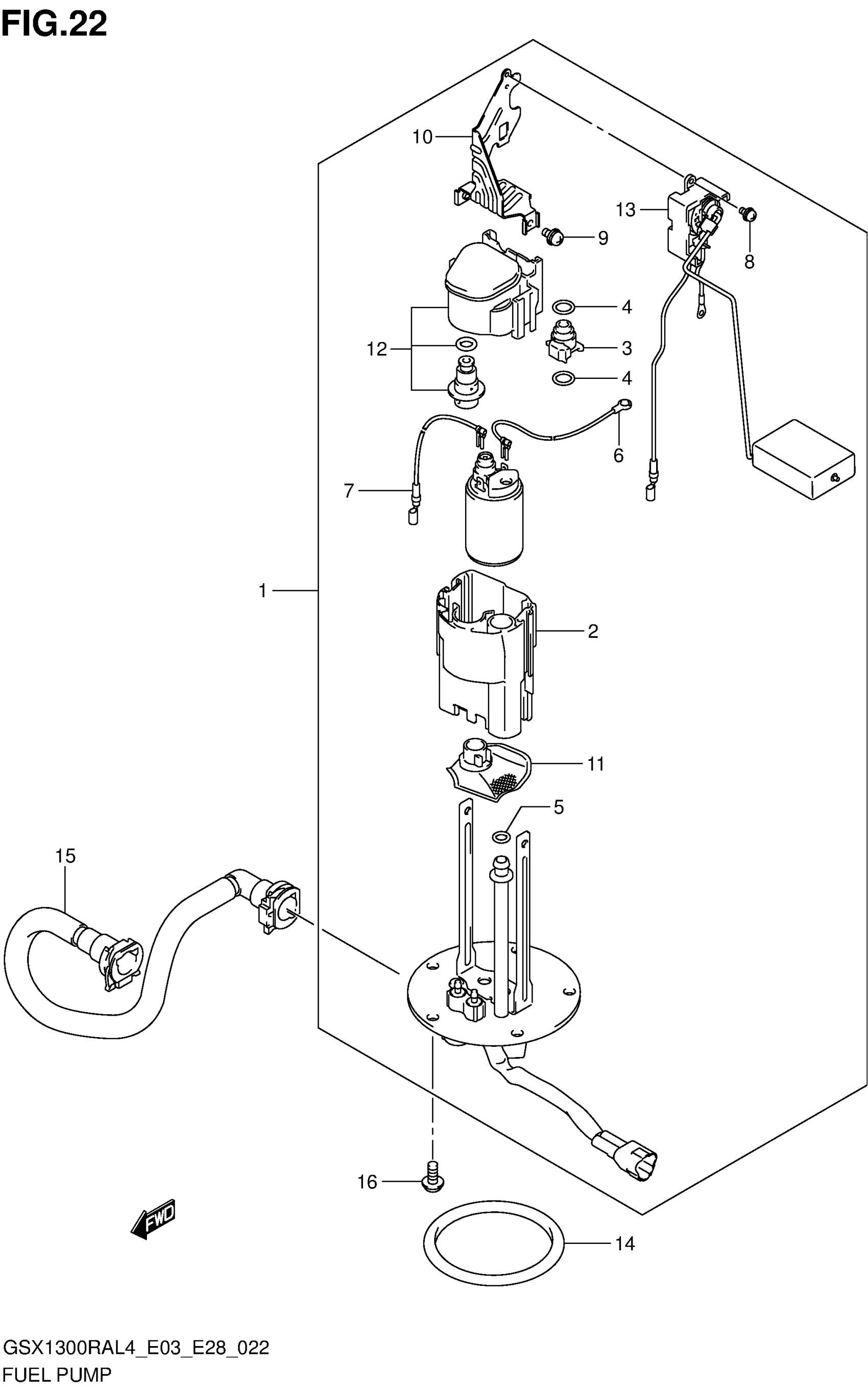

2014 Suzuki GSX1300RAL4 Fuel Pump Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

PUMP ASSY, FUEL This part replaces 15100-15H10.

15100-15H11

1
Out of stock

2

CUP, RESERVOIR

15111-27G00

1
Out of stock

3

JOINT

15112-05H00

1
Out of stock

4

O RING

15113-05H00

2
Out of stock

5

O RING

15113-35F00

1
Out of stock

6

WIRE, EARTH

15114-14J00

1
Out of stock

7

.WIRE,LEAD

15115-08J00

1
Out of stock

8

SCREW

15116-10F00

1
Out of stock

9

SCREW

15116-10F00

3
Out of stock

10

BRACKET, GAUGE

15181-15H10

1
Out of stock

11

STRAINER

15420-05H00

1
Out of stock

12

REGULATOR

15610-14J00

1
Out of stock

13

GAUGE ASSY, FUEL LEVEL

34810-15H10

1
Out of stock

14

O-RING

15201-35F00

1
Out of stock

15

HOSE, FUEL

15810-15H10

1
Out of stock

16

BOLT

07120-0612A

5
Out of stock
