2014 Suzuki GSX1300RAL4 2ND AIR Diagram

← All diagrams

Find the part on the 2ND AIR diagram for your 2014 Suzuki GSX1300RAL4, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

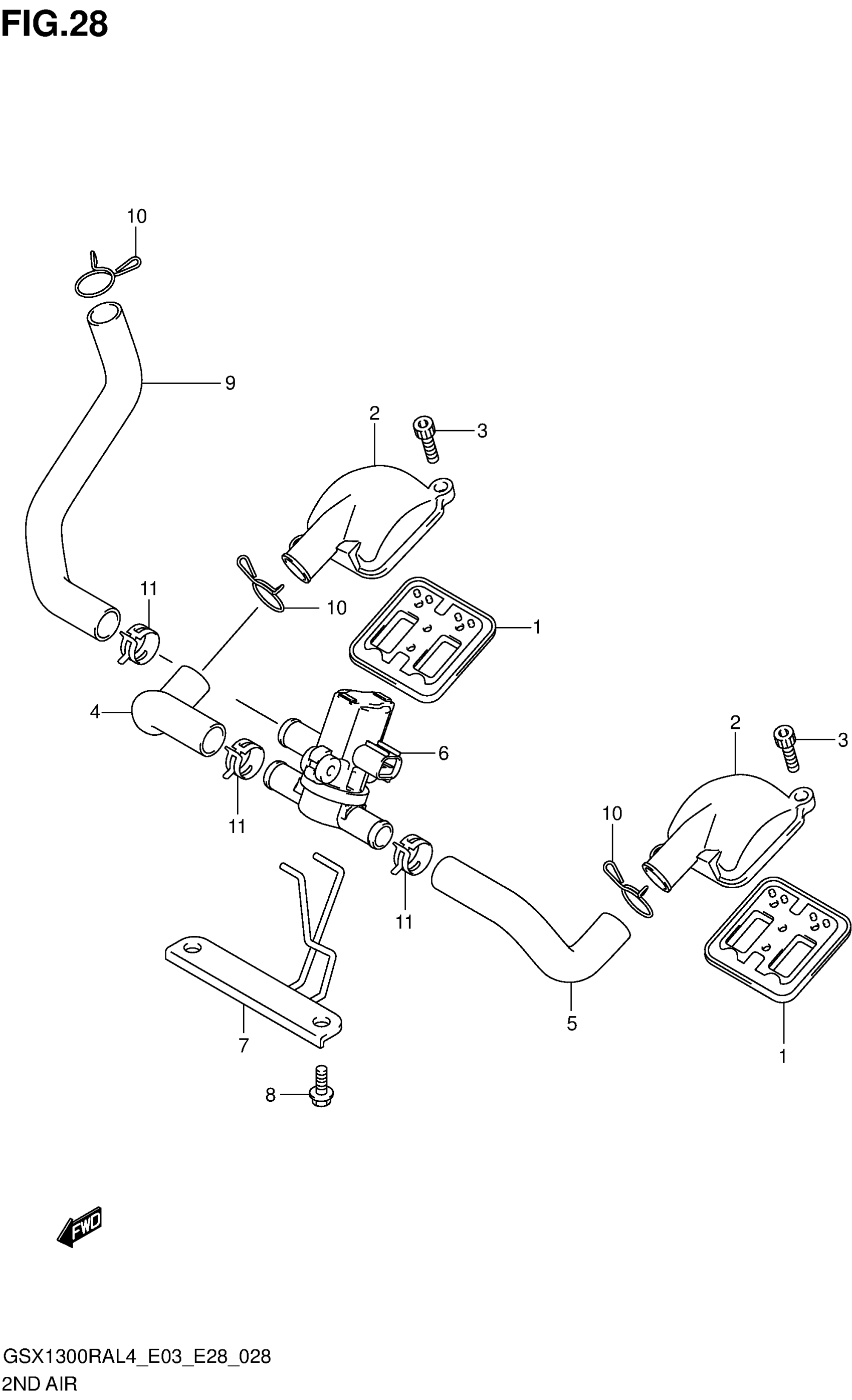

2014 Suzuki GSX1300RAL4 2ND AIR Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

2

$111.91

In stock

2

COVER

18531-15H00

2
Out of stock

3

BOLT (6X16)

09106-06073

4
Out of stock

4

HOSE,2ND AIR VALVE,R

18461-15H00

1

$26.23

In stock

5

HOSE,2ND AIR VALVE,L

18471-15H00

1

$27.85

In stock

6

VALVE ASSY,AIR CUT

18510-29G31

1

$144.57

In stock

7

BRACKET,2ND AIR VALVE

18610-15H00

1
Out of stock

8

BOLT (6X16)

09103-06283

2

$2.92

In stock

9

HOSE, 2ND AIR CLEANER

18711-15H00

1

$42.68

In stock

10

CLIP

09401-17201

3
Out of stock

11

CLIP

09401-17401

3
Out of stock
