2014 Suzuki GSX1300RAL4 Side Cowling Diagram

← All diagrams

Find the part on the Side Cowling diagram for your 2014 Suzuki GSX1300RAL4, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

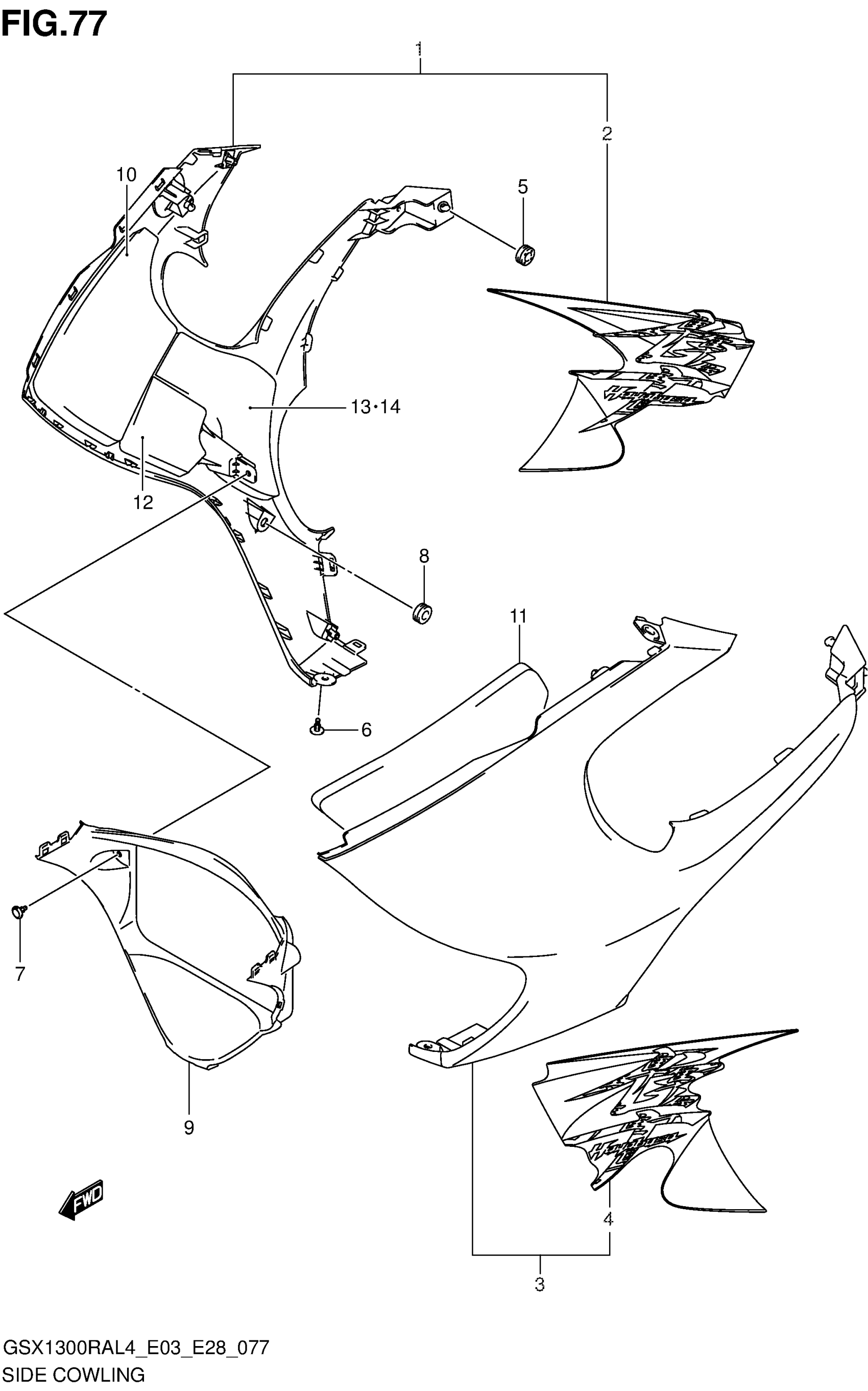

2014 Suzuki GSX1300RAL4 Side Cowling Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

COWLING, SIDE RH (GRAY) | FOR AA3

94450-15H50-YLF

1
Out of stock

1

COWLING, SIDE RH (WHITE) | FOR AGS

94450-15H50-YWW

1
Out of stock

1

COWLING, SIDE RH (WHITE) | FOR AJP

94450-15H50-AHX

—
Out of stock

2

TAPE, SIDE COWLING RH | FOR YLF

68685-15H40-AWK

1
Out of stock

2

TAPE, SIDE COWLING RH | FOR YWW

68685-15H40-AWL

1
Out of stock

2

TAPE, SIDE COWLING RH | FOR AHX

68685-15H40-AWM

—
Out of stock

3

COWLING, SIDE LH (GRAY) | FOR AA3

94460-15H50-YLF

1
Out of stock

3

COWLING, SIDE LH (WHITE) | FOR AGS

94460-15H50-YWW

1
Out of stock

3

COWLING, SIDE LH (WHITE) | FOR AJP

94460-15H50-AHX

—
Out of stock

4

TAPE, SIDE COWLING LH | FOR YLF

68695-15H40-AWK

1
Out of stock

4

TAPE, SIDE COWLING LH | FOR YWW

68695-15H40-AWL

1
Out of stock

4

TAPE, SIDE COWLING LH | FOR AHX

68695-15H40-AWM

—
Out of stock

5

CUSHION

09320-08028

2
Out of stock

6

CLIP

94479-35F00

2
Out of stock

7

CLIP

94479-35F00

2
Out of stock

8

CUSHION

09321-10018

2
Out of stock

9

COWLING, UNDER CENTER

94498-15H00

1
Out of stock

10

CUSHION, SIDE UPPER RH This part replaces 94476-15H00.

94476-15H01

1
Out of stock

11

CUSHION, SIDE UPPER LH This part replaces 94486-15H00.

94486-15H01

1
Out of stock

12

CUSHION, SIDE LOWER

94476-15H10

2
Out of stock

13

SHIELD, SIDE RH

94474-15H00

1
Out of stock

14

SHIELD, SIDE LH

94484-15H00

1
Out of stock
