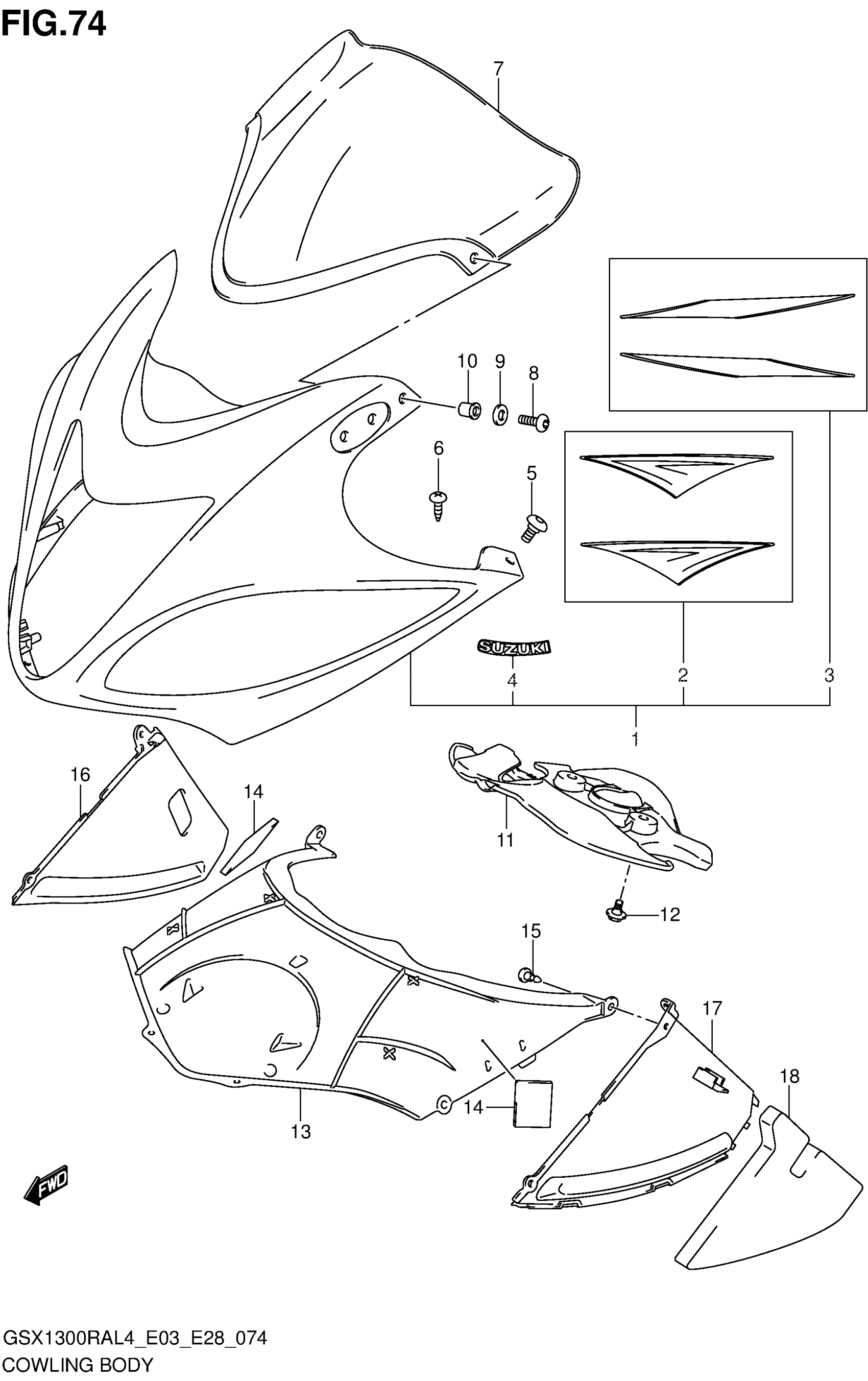

Suzuki GSX1300RAL4 (2014) COWLING BODY Diagram

#

Description
Price

1

COWLING ASSY,BO | FOR AA3 This part replaces 94401-15H40-6UX.

94401-15H41-6UX

$607.95

1

COWLING ASSY,BO | FOR AGS This part replaces 94401-15H40-YVZ.

94401-15H41-YVZ

$596.70

1

BODY, COWLING (BLUE) | FOR AJP

94401-15H40-YKY

Unavailable

2

TAPE SET, BODY COWLING UPPER | FOR 6UX

68270-15H40-AV8

Unavailable

2

TAPE SET, BODY COWLING UPPER | FOR YVZ

68270-15H40-AV9

$76.83

2

TAPE SET, BODY COWLING UPPER | FOR YKY

68270-15H40-AWF

Unavailable

3

TAPE SET, BODY COWLING LOWER (GRAY/ BALCK)

68270-15H50-AA3

Unavailable

3

TAPE SET, BODY COWLING LOWER (RED/WHITE)

68270-15H50-AGS

$52.12

3

TAPE SET, BODY COWLING LOWER (BLUE/WHITE)

68270-15H50-AJP

Unavailable

4

EMBLEM, "SUZUKI | FOR AA3 This part replaces 68281-24F10-17U.

68281-24F11-17U

$14.45

4

EMBLEM,"SUZUKI" | FOR AGS,AJP This part replaces 68281-24F10-YWW.

68281-24F11-YWW

$11.10

5

SCREW (5X16)

09139-05077

$3.06

6

SCREW (5X16)

09132-05053

$2.33

7

WINDSCREEN

94611-15H00

$328.55

8

SCREW (5X14)

09139-05025

$1.89

9

WASHER

08322-0105B

$2.31

10

NUT

09159-05019

$6.63

11

COVER,LWR BRACKET

94458-15H10

$19.68

12

BOLT (6X12)

09111-06107

$2.66

13

COVER, BODY COWL This part replaces 94419-15H01.

94419-15H02

$34.23

14

CUSHION, COVER

36930-60A10

$2.80

15

CLIP (BLACK)

09409-06314-5PK

$2.80

16

COWL, INNER RH

94461-15H00

$60.70

17

COWL, INNER LH

94462-15H00

$62.77

18

CUSHION, LH

94463-15H00

$46.58
