2014 Suzuki GSX1300RAL4 Seat Diagram

← All diagrams

Find the part on the Seat diagram for your 2014 Suzuki GSX1300RAL4, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

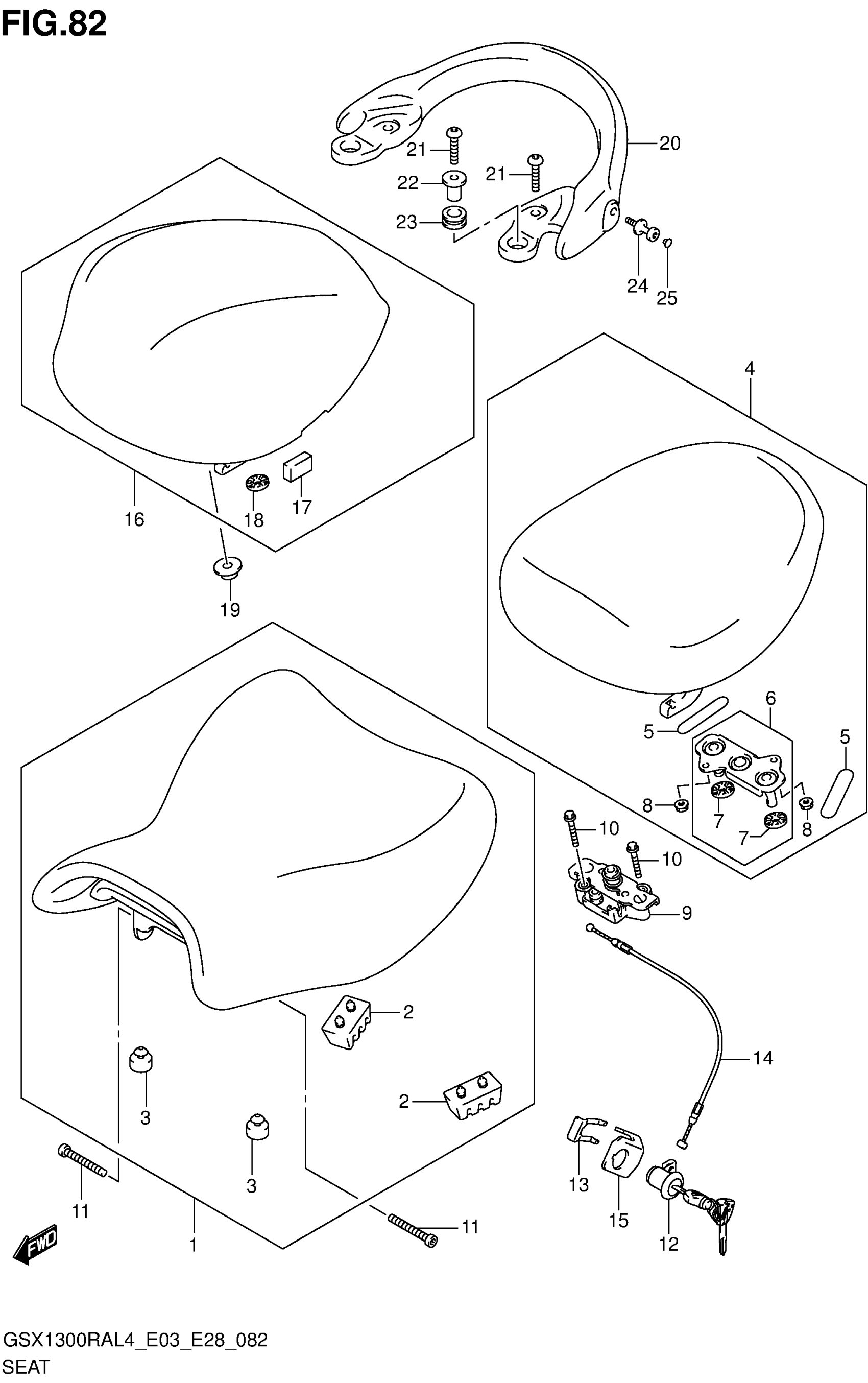

2014 Suzuki GSX1300RAL4 Seat Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

SEAT ASSY This part replaces 45100-15H01-EJY.

45100-15H03-EJY

1
Out of stock

2

CUSHION

45149-45330

2
Out of stock

3

CUSHION

09321-10011

2
Out of stock

4

SEAT ASSY,PILLI This part replaces 45300-15H10-U6H.

45300-15H12-U6H

1
Out of stock

5

CUSHION This part replaces 45149-15H00.

45149-15H10

2
Out of stock

6

STRIKER, SEAT LOCK

45290-15H00

1
Out of stock

7

CUSHION

45213-42F00

2
Out of stock

8

NUT

08316-1006A

2
Out of stock

9

BRACKET, SEAT SUPPORT

45220-15H00

1
Out of stock

10

BOLT

01547-0630A

2
Out of stock

11

BOLT,SEAT FR

45191-15H00

2
Out of stock

12

LOCK SET, SEAT This part replaces 95700-14F00.

95700-14810

1
Out of stock

13

PLATE, SEAT LOCK

45289-11F00

1
Out of stock

14

CABLE, SEAT LOCK

45280-18G01

1
Out of stock

15

GUIDE, CABLE

45288-14F20

1
Out of stock

16

BOX, SEAT TAIL (BLACK)

45550-15H01-YVB

1
Out of stock

16

BOX, SEAT TAIL (RED)

45550-15H01-YVZ

1
Out of stock

16

BOX, SEAT TAIL (BLUE)

45550-15H01-YKY

1
Out of stock

17

CUSHION

45553-15H00

2
Out of stock

18

CUSHION

45213-42F00

2
Out of stock

19

.WASHER,FRAME COVER

47190-24F01

2
Out of stock

20

HANDLE, PILLION RIDER (BLACK) This part replaces 46211-15H00-YVB.

46211-15H01-YVB

1
Out of stock

20

HANDLE,PILLION This part replaces 46211-15H00-YVZ.

46211-15H01-YVZ

1
Out of stock

20

HANDLE, PILLION RIDER (BLUE) This part replaces 46211-15H00-YKY.

46211-15H01-YKY

1
Out of stock

21

BOLT (8X33)

09106-08137

4
Out of stock

22

WASHER, PILLION RIDER HANDLE

47190-24F11

2
Out of stock

23

CUSHION, PILLION RIDER HANDLE

46217-24F00

2
Out of stock

24

HOOK, HANDLE

46212-24F11

2
Out of stock

25

CAP (OD:10)

09250-05009

2
Out of stock
