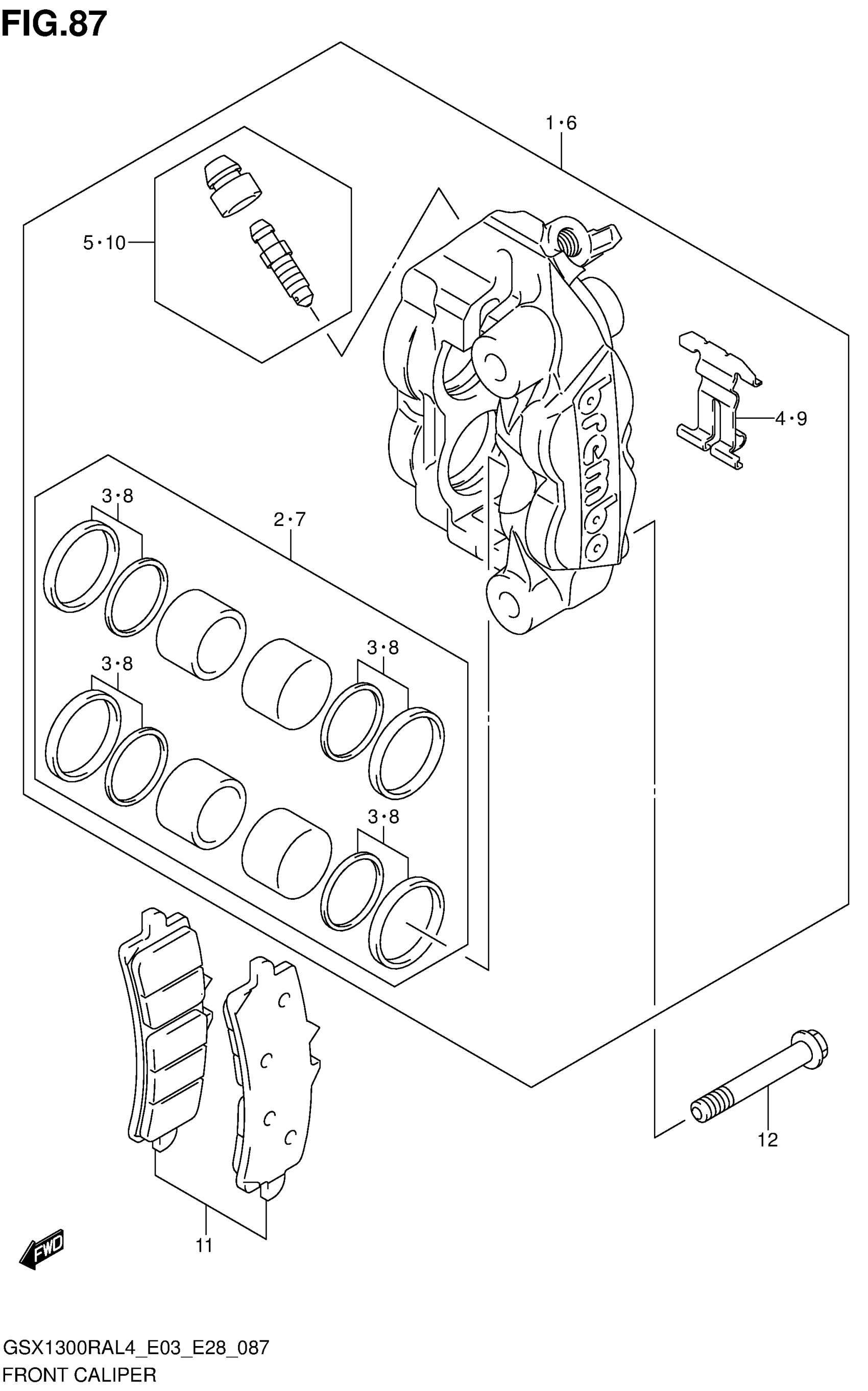

Suzuki GSX1300RAL4 (2014) FRONT CALIPER Diagram

#

Description

Price

1

CALIPER ASSY, FRONT RH

59100-14J10-999

$779.78

2

PISTON SET

59100-14810

$93.32

3

SEAL SET, PISTON

59100-14820

$57.99

4

SPRING, PAD

59151-14J00

$22.06

5

BLEEDER SET

59100-14840

$23.74

6

CALIPER ASSY, FRONT LH

59300-14J10-999

$772.50

7

PISTON SET

59100-14810

$93.32

8

SEAL SET, PISTON

59100-14820

$57.99

9

SPRING, PAD

59151-14J00

$22.06

10

BLEEDER SET

59100-14840

$23.74

11

PAD SET (T:4.0)

59100-14860

$157.35

12

BOLT (10X70)

09103-10450

$4.42
