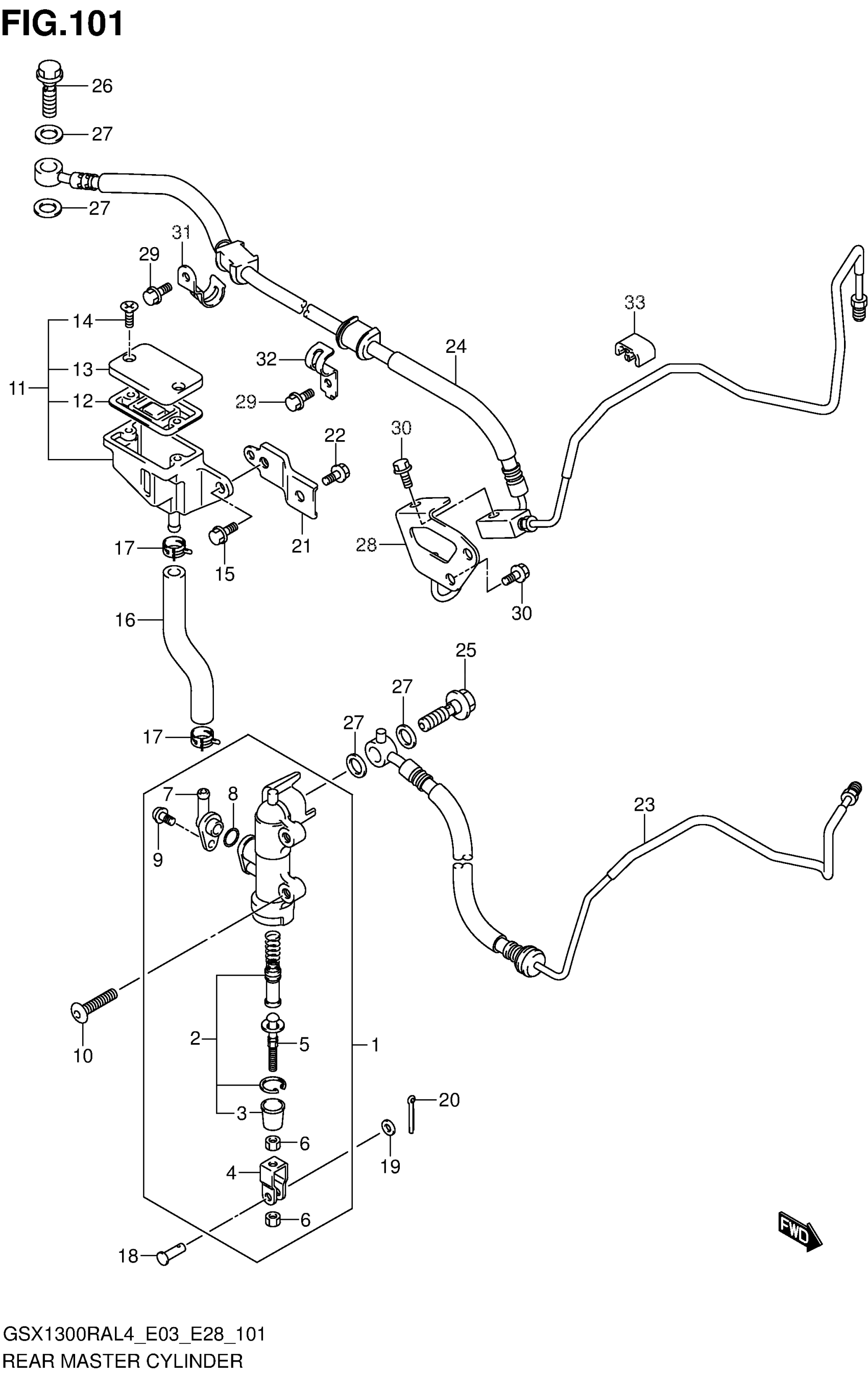

Suzuki GSX1300RAL4 (2014) REAR MASTER CYLINDER (GSX1300RAL4 E28) Diagram

#

Description
Price

1

CYLINDER ASSY, REAR MASTER

69600-15H00

$348.28

2

.PISTON/CUP SET This part replaces 69600-04820.

69600-04821

$30.88

3

.BOOT

69691-00A00

$5.22

4

YOKE

69692-27A30

$13.59

5

ROD, PUSH

69670-27A30

$29.60

6

NUT

69693-05A00

$1.86

7

CONNECTOR

69672-05A00

$5.47

8

O RING

69686-34200

$2.80

9

SCREW

02112-7412A

$2.67

10

SCREW (6X20)

09139-06028

$3.44

11

TANK ASSY,RR RESERVOIR

69740-01D02

$67.43

12

DIAPHRAGM

59667-04700

$9.36

13

CAP

59669-05D00

$16.49

14

SCREW

69689-04A00

$2.15

15

BOLT

01547-0612A

$2.09

16

HOSE, RR RESERVOIR TANK

69731-24F00

$21.32

17

CLIP

09401-13417

$2.31

18

PIN (6X18.2)

09200-06068

$3.82

19

WASHER

08322-0106A

$1.89

20

PIN

04111-2015A

$1.25

21

BRACKET, RESERVOIR TANK

69750-15H00

$13.30

22

BOLT

01550-0612A

$2.01

23

HOSE ASSY,RR BR This part replaces 69200-15H00.

69200-15H01

$86.58

24

HOSE ASSY,RR BR This part replaces 69400-15H00.

69400-15H01

$100.77

25

UNION

09360-10061

$6.07

26

UNION

09360-10062

$5.99

27

WASHER (10X15X1.5)

09161-10009

$1.89

28

CLAMP,RR BRAKE HOSE

69260-15H00

Unavailable

29

BOLT

01547-0612A

$2.09

30

BOLT

01547-0616A

$2.09

31

CLAMP, REAR BRAKE HOSE

69268-15H00

$14.27

32

CLAMP,RR BRAKE HOSE NO.1

69275-15H00

$5.72

33

CLAMP

09403-06324

Unavailable
