Description

Price

1

PUMP ASSY,WATER | Includes Item(s) 2 - 13 This part replaces 17400-24F10.

17400-24F11

$229.93

2

CASE

17411-24F00

$159.88

3

IMPELLER

17491-17E01

$25.21

4

GASKET

09168-06025

$2.80

5

.SEAL,MECHANICAL This part replaces 17470-02F10.

17470-02F11

$26.75

6

.SEAL,OIL (10X21X5)

17461-48G00

$12.45

7

SHAFT

17511-24F10

$138.35

8

WASHER

17432-07G00

$2.61

9

LOCK WASHER

09164-06006

$2.66

10

.O-RING This part replaces 17418-33400.

17418-33401

$4.09

11

.O-RING

17435-33400

$13.99

12

SCREW

02112-0616A

$1.43

13

BOLT (6X13)

09100-06099

$2.08

14

BOLT

01547-0635A

$2.31

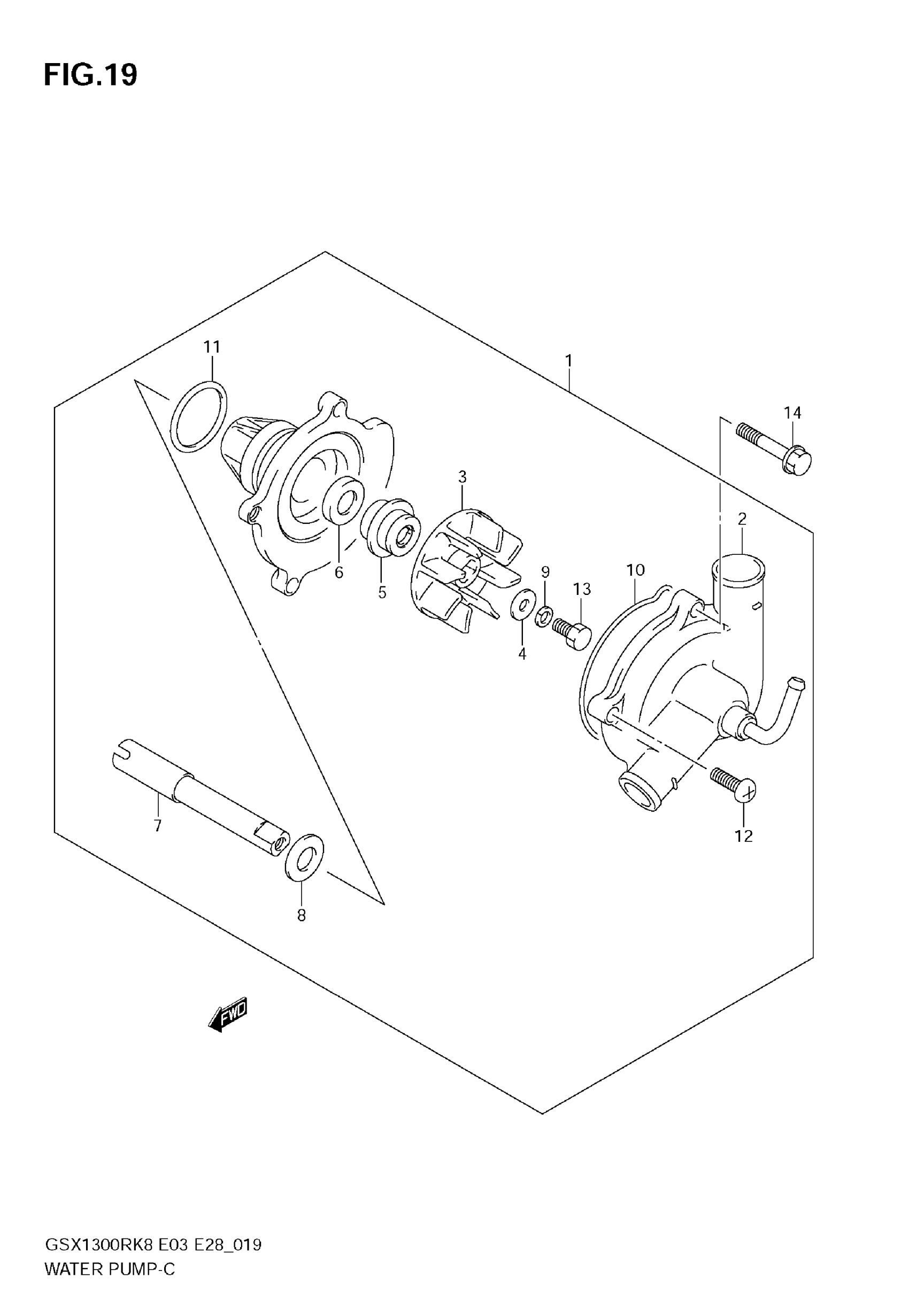

Suzuki GSX1300R (2009) WATER PUMP Diagram
