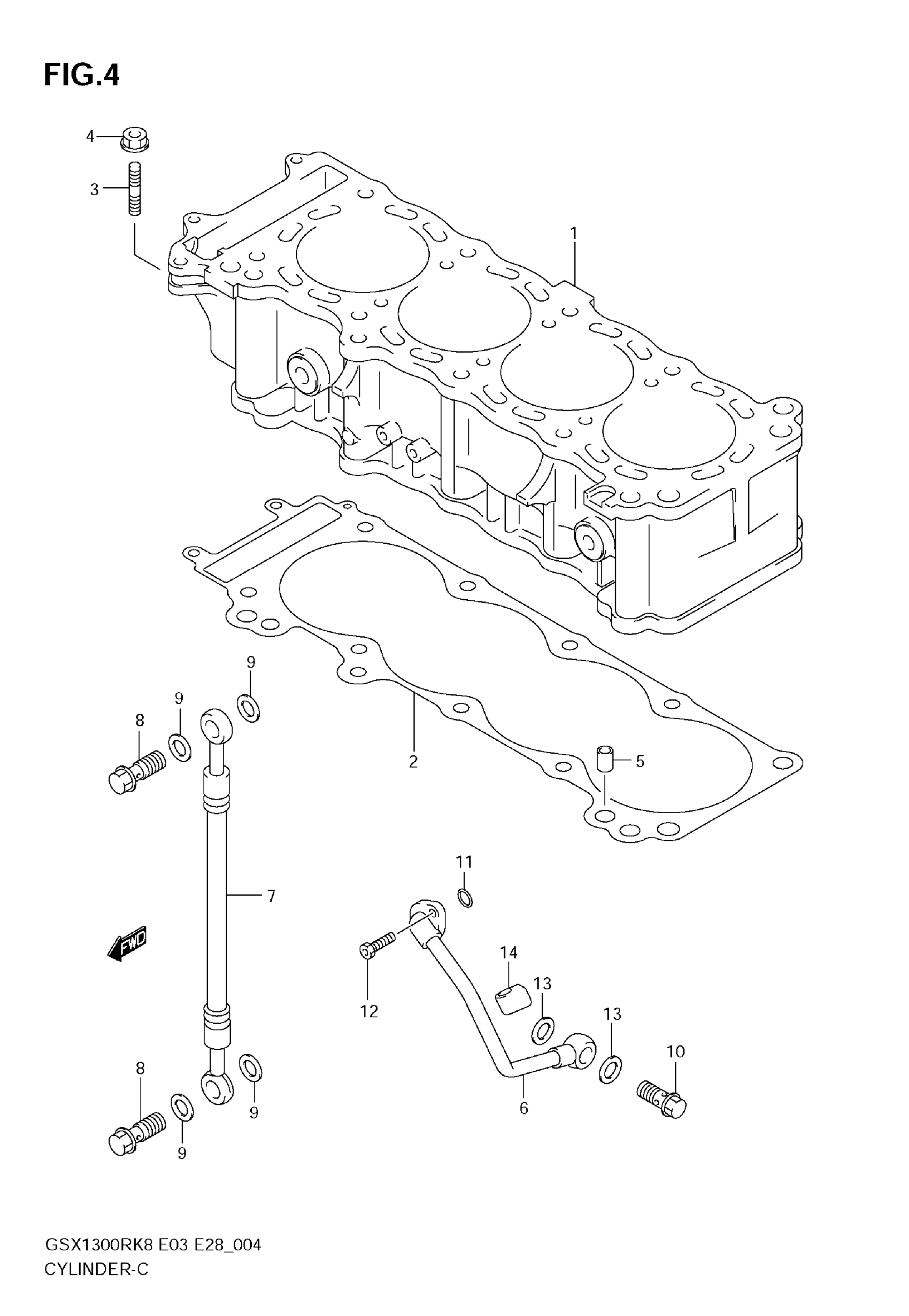

Suzuki GSX1300R (2009) CYLINDER Diagram

#

Description
Price

1

CYLINDER

11210-15H00-0F0

$2,218.27

2

GASKET

11241-15H00

$49.46

3

BOLT,STUD

01421-0625B

$2.50

4

NUT

08316-1006B

$2.57

5

PIN

04211-11169

$1.82

6

PIPE,CRANKCASE OIL

11280-24F00

$60.56

7

HOSE, OIL

11282-24F00

$77.40

8

BOLT, CYLINDER HEAD HOSE UNION

09360-10062

$5.99

9

GASKET

09168-10007

$1.76

10

BOLT, OIL PIPE UNION

09360-14012

$10.10

11

O RING, OIL PIPE

09280-12012

$4.32

12

BOLT, OIL PIPE (6X16)

09106-06073

$2.44

13

.GASKET (14X20X1.5)

09168-14015

$2.09

14

CUSHION,CRANKCASE OIL PIPE This part replaces 11283-24F00.

11283-24F01

$5.73
