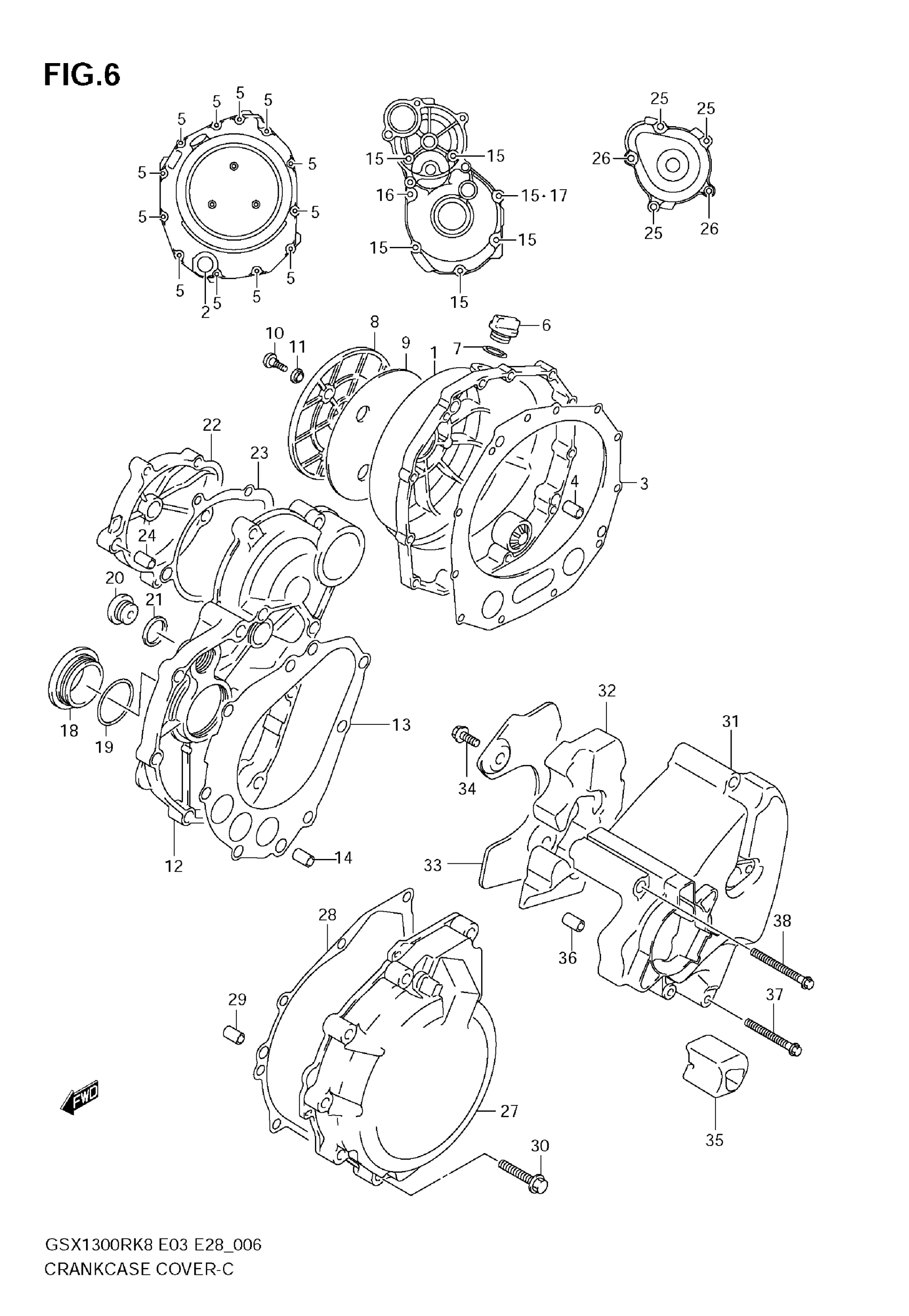

Suzuki GSX1300R (2009) CRANKCASE COVER Diagram

#

Description
Price

1

COVER, CLUTCH | Includes Item(s) 2

11340-24F01

$331.67

2

LENS, OIL LEVEL

11971-33210

$16.66

3

GASKET, CLUTCH COVER

11482-24F00

$17.17

4

PIN

04211-09189

$1.64

5

BOLT (6X30)

09103-06213

$2.53

6

PLUG,ENGINE OIL FILLER

11971-25D00

$4.67

7

O RING (D:3.1,ID:16.8)

09280-17003

$1.64

8

COVER, CLUTCH OUTER

11371-24F00

$87.55

9

CUSHION, CLUTCH OUTER COVER

11372-24F00

$15.07

10

SCREW

09139-06107

$3.15

11

WASHER, CL OUTER COVER SCREW

11373-24F00

$4.62

12

COVER,STARTER CLUTCH

11380-24F20

$208.63

13

GASKET, STARTER CLUTCH COVER

11491-24F01

$9.06

14

PIN

04211-09149

$1.64

15

BOLT (6X25)

09103-06212

$2.53

16

BOLT (6X35)

09103-06214

$2.57

17

GASKET

09168-06023

$2.01

18

PLUG, SHAFT HOLE

09259-36021

$12.45

19

.O-RING (D:3.1,ID:32.7)

09280-33004

$2.24

20

PLUG, TDC (16X8)

09248-16012

$4.19

21

GASKET

09168-16002

$1.89

22

CAP,STARTER IDLE GEAR

11382-24F20

$69.44

23

GASKET, STARTER IDLE GEAR CAP

11492-24F00

$6.61

24

PIN

04211-09149

$1.64

25

BOLT (6X25)

09103-06212

$2.53

26

BOLT (6X35)

09103-06214

$2.57

27

COVER, MAGNETO

11351-24F00

$92.85

28

GASKET, MAGNETO COVER

11483-24F00

$10.30

29

PIN

04211-09149

$1.64

30

BOLT (6X30)

09103-06213

$2.53

31

COVER, ENGINE SPROCKET

11361-15H00

$191.80

32

DAMPER, ENGINE SPROCKET COVER

11362-15H00

$20.65

33

PLATE, ENGINE SPROCKET COVER

11363-15H00

$17.53

34

BOLT

09103-06172

$1.62

35

PROTECTOR,ENGIN This part replaces 11364-15H00.

11364-15H01

$7.43

36

PIN

04211-09149

$1.64

37

BOLT (6X55)

09103-06216

$2.80

38

BOLT (6X65)

09103-06239

$2.65
