2009 Suzuki GSX1300BK Handlebar Diagram

← All diagrams

Find the part on the Handlebar diagram for your 2009 Suzuki GSX1300BK, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

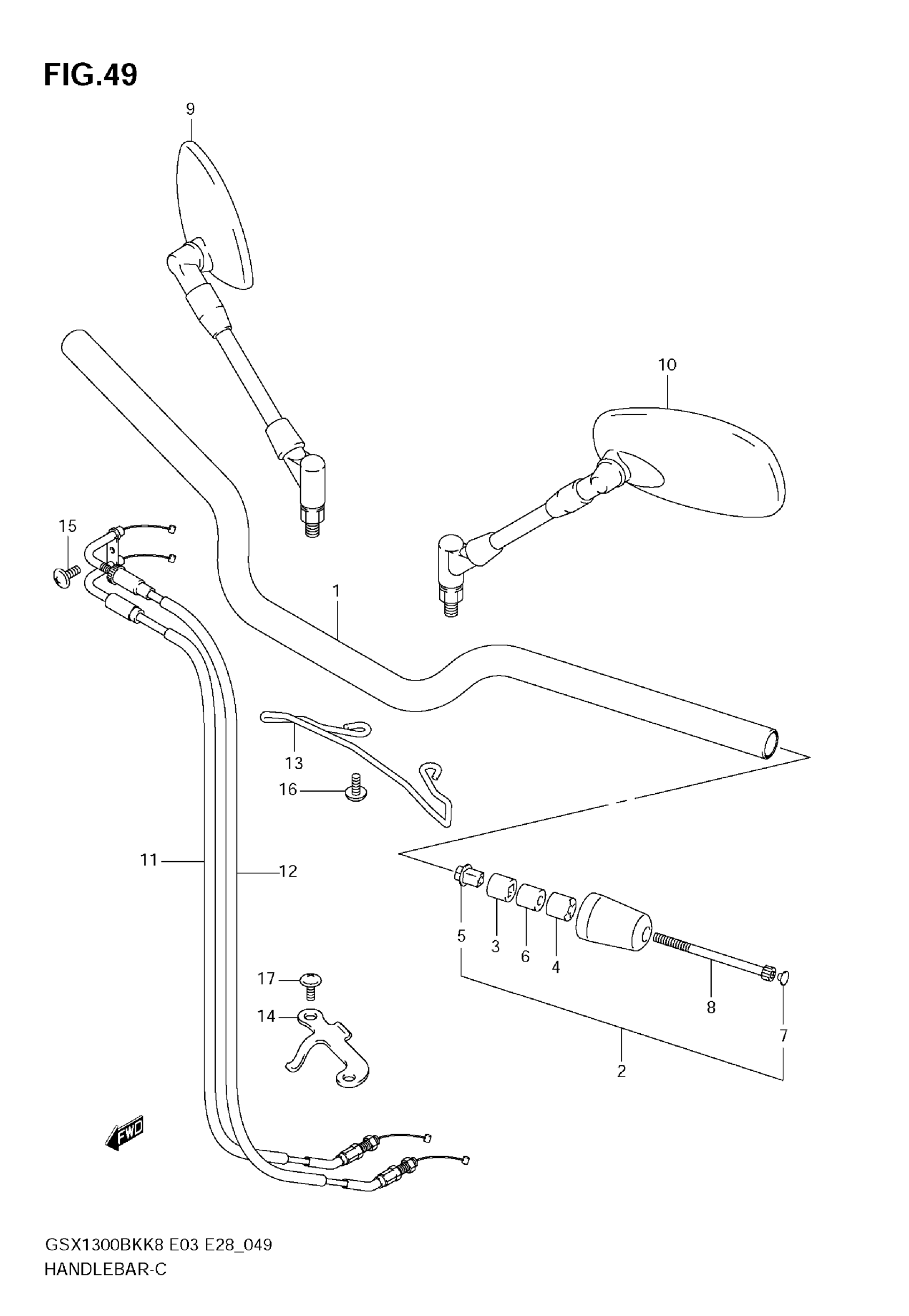

2009 Suzuki GSX1300BK Handlebar Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

HANDLEBAR

56111-23H00

1
Out of stock

2

BALANCER SET,HA | Includes Item(s) 3 - 8 This part replaces 56200-23830.

56200-23831

2
Out of stock

3

.EXPANDER,HANDLE BALANCER This part replaces 56272-10G00.

56272-10G01

2
Out of stock

4

.EXPANDER,HANDLE BALANCER

56272-42F00

2
Out of stock

5

NUT, HANDLE BALANCER

56273-10G10

2
Out of stock

6

.SPACER (6.5X16X15)

09180-06161

2
Out of stock

7

CAP

09250-05009

2
Out of stock

8

BOLT

07130-0690A

2

$4.75

In stock

9

MIRROR ASSY,RR This part replaces 56500-41F40.

56500-41F41

1
Out of stock

10

MIRROR ASSY,RR This part replaces 56600-41F40.

56600-41F41

1
Out of stock

11

CABLE ASSY, THROTTLE NO.1 | WITHOUT ABS

58300-23H00

1
Out of stock

11

CABLE ASSY, THROTTLE NO.1 | WITH ABS

58300-23H20

1
Out of stock

12

CABLE ASSY, THROTTLE NO.2 | WITHOUT ABS

58300-23H10

1
Out of stock

12

CABLE ASSY, THROTTLE NO.2 | WITH ABS

58300-23H30

1
Out of stock

13

GUIDE, CABLE | WITHOUT ABS

58621-23H00

1
Out of stock

13

GUIDE, CABLE | WITH ABS

58621-23H10

—
Out of stock

14

GUIDE, THROTTLE CABLE

58622-23H00

1
Out of stock

15

SCREW, THROTTLE CABLE

09125-05042

1
Out of stock

16

SCREW, CABLE GUIDE

09139-06030

2
Out of stock

17

SCREW, THROTTLE CABLE GUIDE

03541-0620A

2
Out of stock
