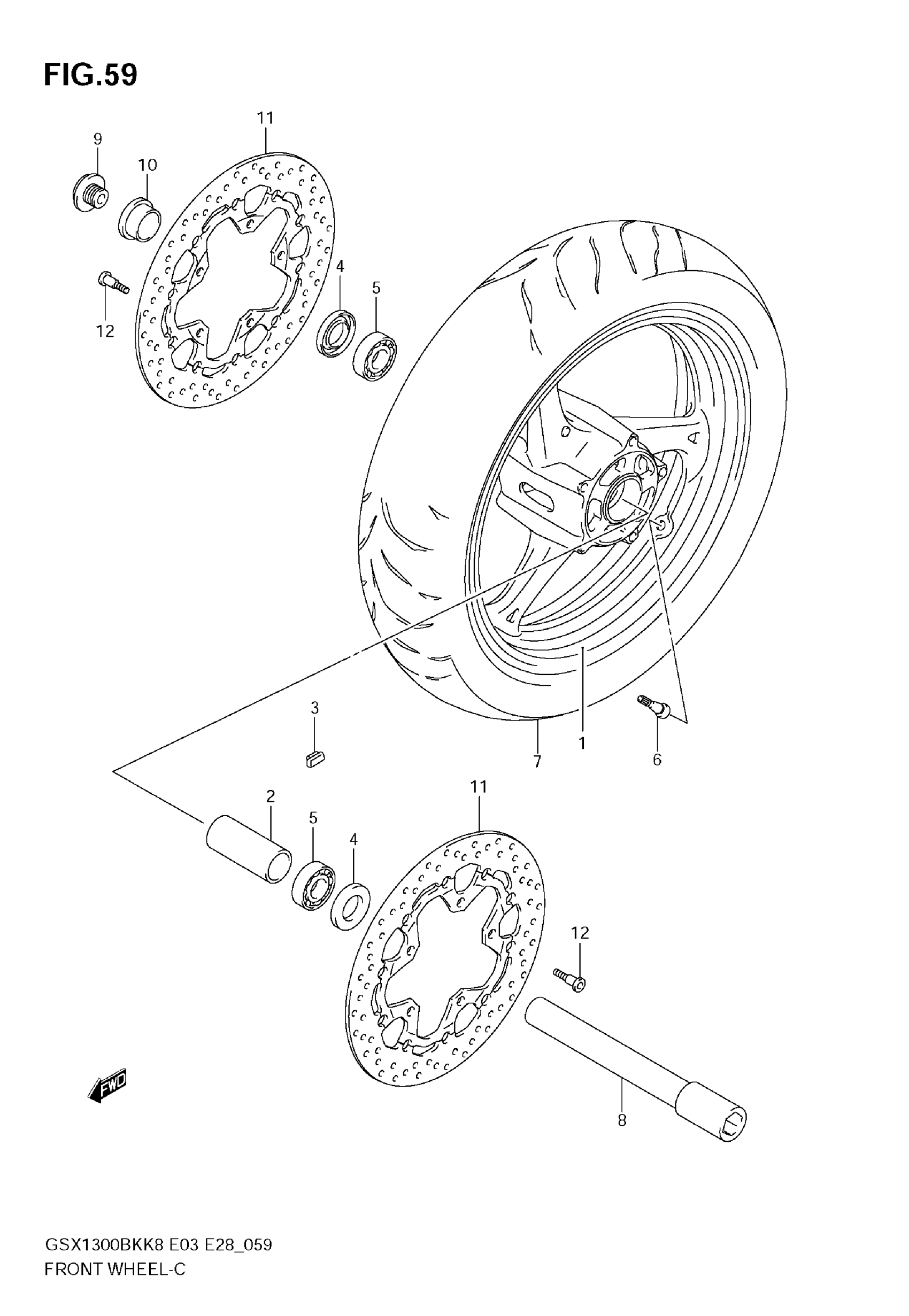

Suzuki GSX1300BK (2009) FRONT WHEEL (GSX1300BKK8/K9) Diagram

#

Description

Price

1

WHEEL,FR(17M/CX This part replaces 54111-15H00-019.

54111-15H01-019

$828.58

2

SPACER, FR HUB BEARING

54731-33E20

$55.32

3

BALANCER, WHEEL NO.1

55411-39G00

Unavailable

3

BALANCER, WHEEL NO.2

55412-39G00

Unavailable

3

BALANCER, WHEEL NO.3

55413-39G00

Unavailable

4

.SEAL,OIL (32X52X7)

09285-32004

$7.20

5

BEARING, FRONT HUB

09262-25061

$29.88

6

VALVE ASSY, WHEEL RIM

43130-24A00

$8.10

7

TIRE, FRONT

55110-23H00

Unavailable

8

AXLE, FRONT

54711-15H00

$183.30

9

BOLT, FRONT AXLE This part replaces 54712-41G00.

54712-41G10

$14.82

10

SPACER, FRONT AXLE, RH This part replaces 54751-41G00.

54751-41G10

$17.99

11

DISC, FRONT BRAKE This part replaces 59210-15H00.

59210-15H10

$312.58

12

BOLT, DISC

09106-08160

$3.22
