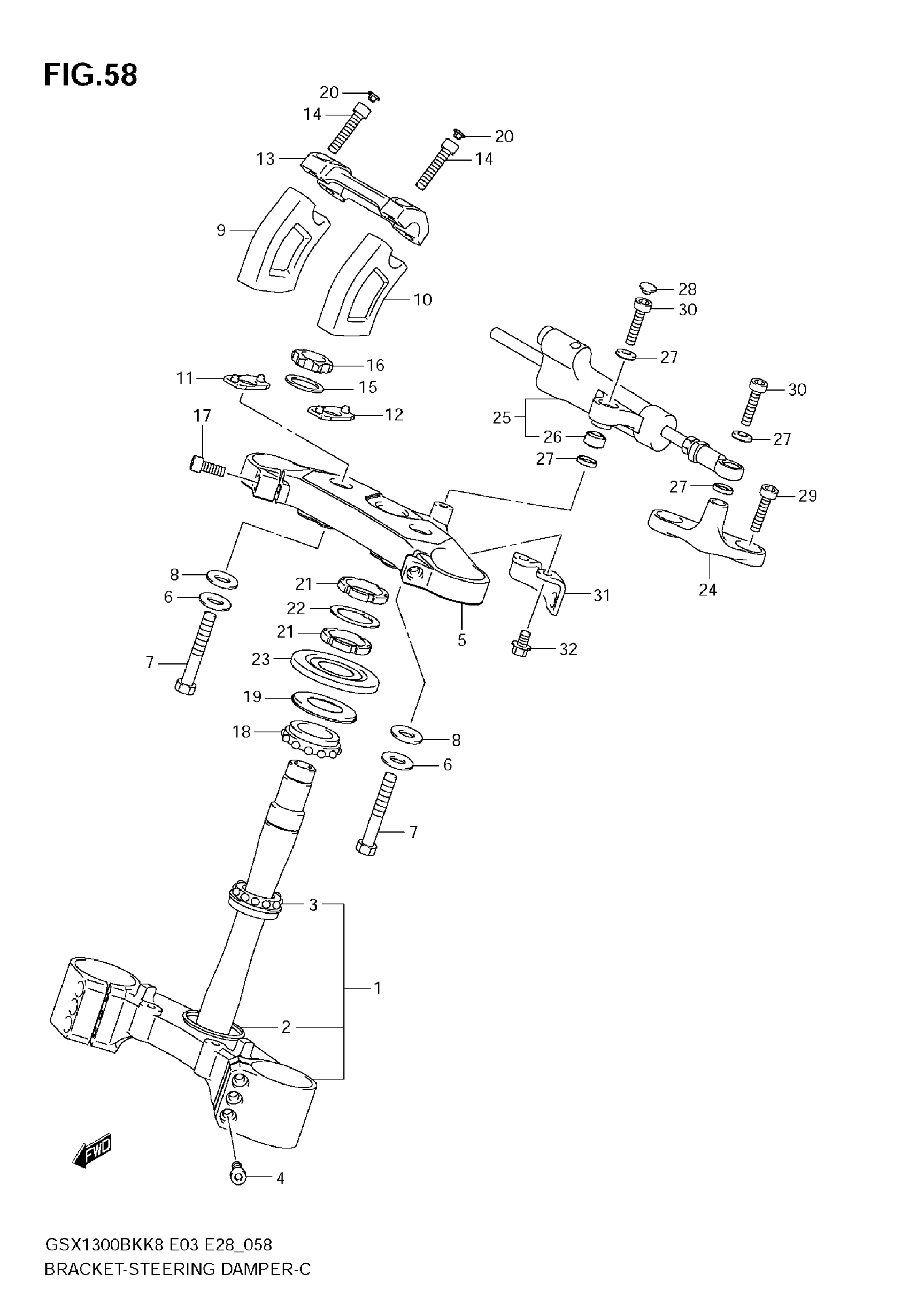

Find the part on the Bracket/steering Damper diagram for your 2009 Suzuki GSX1300BK, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2009 Suzuki GSX1300BK Bracket/steering Damper Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

BRACKET, UNDER | Includes Item(s) 2 - 3

51410-23H00

1
Out of stock

2

SEAL, STEERING LOWER

51644-12C00

1
Out of stock

3

BEARING, 30X55X17

09267-30010

1
Out of stock

4

BOLT

07130-08357

6
Out of stock

5

BRACKET, UPPER

51311-23H00

1
Out of stock

6

WASHER

51355-42F00

2
Out of stock

7

BOLT

51226-23H00

2
Out of stock

8

RUBBER, HANDLE HOLDER

56245-16G00

2
Out of stock

9

HOLDER, LOWER R

56224-23H00

1
Out of stock

10

HOLDER, LOWER L

56225-23H00

1
Out of stock

11

RUBBER, HANDLE HOLDER

56244-23H00

1
Out of stock

12

RUBBER, HOLDER

56245-23H00

1
Out of stock

13

HOLDER, UPPER

56211-23H00

1
Out of stock

14

BOLT

07130-08308

4
Out of stock

15

WASHER

51356-24F50

1
Out of stock

16

NUT

51353-24F00

1
Out of stock

17

BOLT, STEM HEAD

51328-05H00

2
Out of stock

18

BEARING, 30X55X17

09267-30010

1
Out of stock

19

SEAL, STEERING UPPER

51644-12C00

1
Out of stock

20

CAP, HANDLE HOLDER BOLT

09250-06011

4
Out of stock

21

NUT, STEERING STEM

51631-33E00

2
Out of stock

22

WASHER, STEERING STEM

51641-33E00

1
Out of stock

23

COVER, STEERING UPPER

51643-41G00

1
Out of stock

24

BRACKET, STEERING DAMPER

51711-23H00

1
Out of stock

25

DAMPER ASSY, STEERING | Includes Item(s) 26

51750-23H00

1
Out of stock

26

BEARING, STEERING DAMPER

09269-08003

1
Out of stock

27

SEAL, PILLOWBALL DUST

64339-14101

4
Out of stock

28

CAP, STEERING DAMPER BOLT

09250-06011

2
Out of stock

29

BOLT, STEERING DAMPER BRKT

07130-0825A

2
Out of stock

30

BOLT, STEERING DAMPER

07130-0830A

2
Out of stock

31

PLATE, STEERING LOCK

51911-23H00

1
Out of stock

32

SCREW, STEERING LOCK PLATE

09103-08351

2
Out of stock
