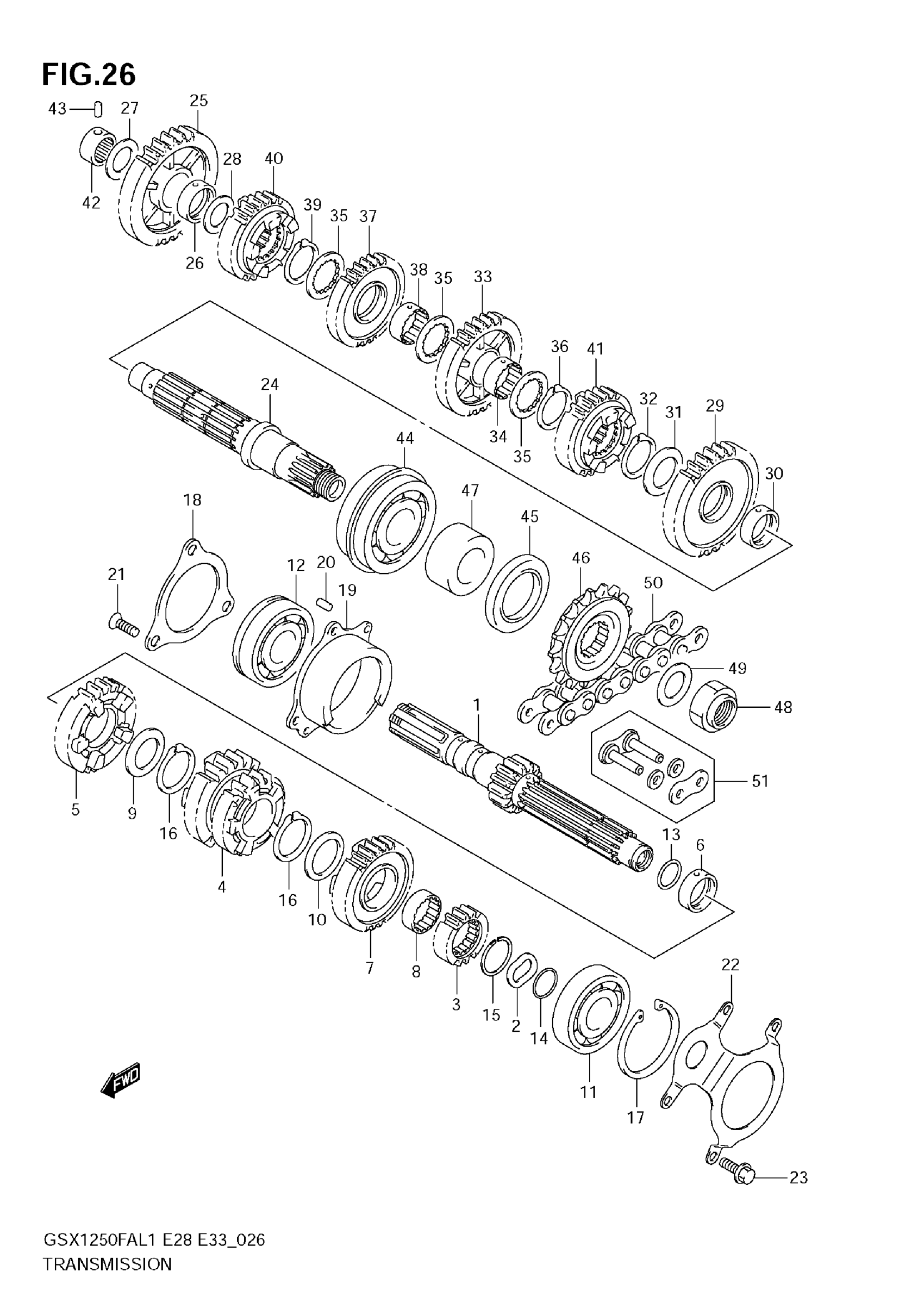

Suzuki GSX1250FAL1 (2011) TRANSMISSION Diagram

#

Description
Price

1

SHAFT, COUNTER | NT:13

24120-18H10

Unavailable

2

WASHER, COUNTER

24127-18H00

Unavailable

3

GEAR, 2ND DRIVE | NT:17

24221-18H10

Unavailable

4

GEAR, 3RD & 4TH DRIVE | NT:20/23

24231-18H00

Unavailable

5

GEAR, 5TH DRIVE | NT:25

24251-18H00

Unavailable

6

BUSH, 5TH DRIVE GEAR

24252-35F00

$27.88

7

GEAR, 6TH DRIVE | NT:28

24261-18H00

Unavailable

8

BUSH, 6TH DRIVE

24262-35F10

$32.40

9

WASHER (27X36X1)

09160-27008

$4.00

10

LOCK WASHER

09167-27001

$2.56

11

BEARING (20X52X15) | LH

09262-20080

$42.13

12

BEARING (25X62X17) | RH

09262-25163

Unavailable

13

O RING (D:1.9,ID:16.6)

09280-17004

$3.98

14

O RING (D:1,ID:19.5)

09280-20001

$1.52

15

CIRCLIP

09380-27004

$3.44

16

CIRCLIP

09380-27006

$2.80

17

CIRCLIP This part replaces 08331-4152A.

08331-41529

$4.83

18

RETAINER, COUNTER SHAFT, RH

24751-18H00

Unavailable

19

HOUSING, COUNTER SHAFT, RH

24771-18H10

Unavailable

20

PIN

04221-06129

$1.87

21

SCREW (6X20)

09139-06159

$4.45

22

RETAINER, CLUTCH PUSH ROD

24741-18H10

Unavailable

23

BOLT (6X12)

09103-06236

$2.80

24

SHAFT, DRIVE

24131-18H20

Unavailable

25

GEAR, 1ST DRIVEN | NT:40

24311-18H00

Unavailable

26

BUSH, 1ST DRIVEN

24312-02F00

$31.78

27

SHIM (20X34X1) | RH

09181-20251

$2.80

28

SHIM (22X34X1) | LH

09181-22223

$2.95

29

GEAR, 2ND DRIVEN | NT:35

24321-18H00

Unavailable

30

BUSH, 2ND DRIVEN

24322-02F01

$24.28

31

WASHER (27X36X1)

09160-27008

$4.00

32

CIRCLIP

09380-27006

$2.80

33

GEAR, 3RD DRIVEN | NT:31

24331-18H00

Unavailable

34

BUSH,3RD DRIVEN GEAR

24332-46H00

$43.95

35

WASHER, 3RD & 4TH DRIVEN

24333-02F00

$6.62

36

CIRCLIP

09380-27006

$2.80

37

GEAR, 4TH DRIVEN | NT:30

24341-18H00

Unavailable

38

BUSH,3RD DRIVEN GEAR

24332-46H00

$43.95

39

CIRCLIP

09380-27006

$2.80

40

GEAR, 5TH DRIVEN | NT:29

24351-18H00

Unavailable

41

GEAR, 6TH DRIVEN | NT:30

24361-18H00

Unavailable

42

BEARING (20X34X13.5) | RH

09263-20087

$54.53

43

PIN (6X10) | RH

09261-06003

$1.87

44

BEARING (30X62X23.8) | LH

09267-30011

$181.72

45

OIL SEAL (42X62X7)

09283-42018

$33.82

46

SPROCKET, ENGINE | NT:18

27510-21A40

$173.42

47

SPACER, SPROCKET

27531-18H00

Unavailable

48

NUT

09159-20004

$14.56

49

WASHER (25X40X1.4)

09160-25035

$5.27

50

CHAIN ASSY (RK50GSVZ3M,120LE) | L:120>118

27600-24F20-120

$384.08

51

JOINT SET, CHAIN | OPT

27620-24F20

$24.73
