2011 Suzuki GSX1250FAL1 Clutch Diagram

← All diagrams

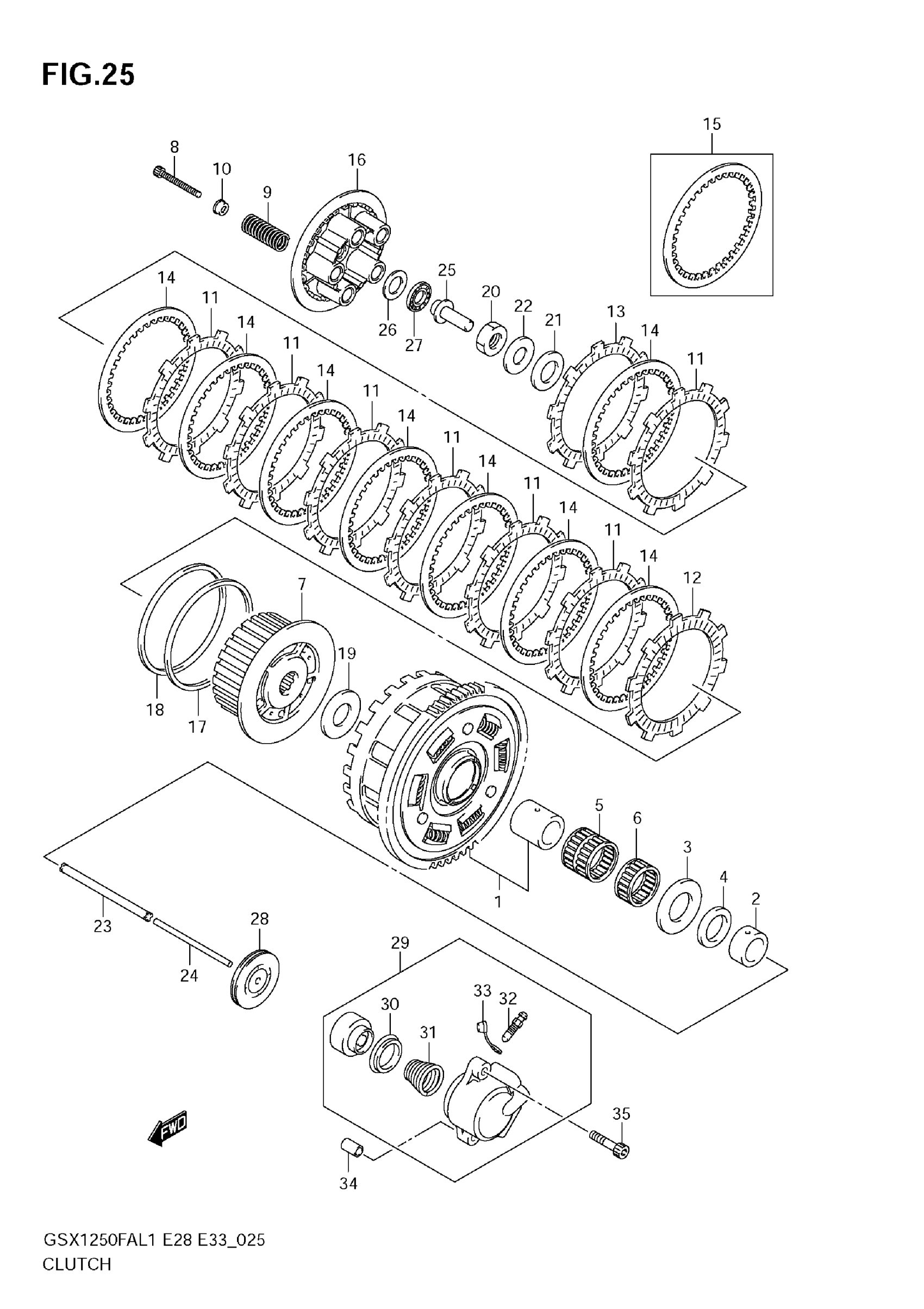

Find the part on the Clutch diagram for your 2011 Suzuki GSX1250FAL1, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2011 Suzuki GSX1250FAL1 Clutch Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

GEAR ASSY, PRIMARY DRIVEN | NT:72

21200-18820

1
Out of stock

2

SPACER, OIL PUMP DRIVE

21253-01H10

1
Out of stock

3

WASHER (25X54X2.4)

09160-25073

1
Out of stock

4

WASHER (25X30X3)

09160-25036

1
Out of stock

5

BEARING (35X40X26.8)

09263-35015

1
Out of stock

6

BEARING (35X40X12)

09263-35045

1
Out of stock

7

HUB, CLUTCH SLEEVE

21410-18H00

1
Out of stock

8

BOLT, CLUTCH SPRING

21412-18H00

5
Out of stock

9

SPRING, CLUTCH

21413-18H00

5
Out of stock

10

WASHER, CLUTCH SPRING

21414-29F00

5
Out of stock

11

PLATE, CLUTCH DRIVE NO.1

21441-24F40

7
Out of stock

12

PLATE, CLUTCH DRIVE NO.2

21442-24F00

1
Out of stock

13

PLATE, CLUTCH DRIVE NO.3

21441-24F10

1
Out of stock

14

.PLATE,CLUTCH DRIVEN NO.1 (T: | T:2.0

21451-24F00

8
Out of stock

15

PLATE, CLUTCH DRIVEN NO.2

21451-24F10

1
Out of stock

16

DISK, CLUTCH PRESSURE

21462-18H00

1
Out of stock

17

.SEAT,WAVE WASHER

21471-24F00

1
Out of stock

18

.WASHER,CLUTCH PLATE WAVE

21472-24F00

1
Out of stock

19

.WASHER (25X50X2.5)

09160-25056

1
Out of stock

20

NUT

09159-24010

1
Out of stock

21

SHIM (25X38X1)

09181-25223

1
Out of stock

22

WASHER

09164-24008

1
Out of stock

23

ROD, CLUTCH PUSH RH | L:169

23110-18H00

1
Out of stock

24

ROD, CLUTCH PUSH LH | L:138

23111-42F00

1
Out of stock

25

PIECE, CLUTCH PUSH

23121-31E20

1
Out of stock

26

WASHER (15.5X28X1)

09160-15045

1
Out of stock

27

BEARING (15X28X2)

09263-15003

1
Out of stock

28

OIL SEAL (6X52X10)

09283-06011

1
Out of stock

29

CLYINDER,CLUTCH This part replaces 23160-18H10.

23160-18H11

1
Out of stock

30

CUP

23163-05A00

1
Out of stock

31

SPRING

23164-05A00

1
Out of stock

32

BLEEDER

59121-01A00

1
Out of stock

33

CAP, BLEEDER

59122-01A00

1
Out of stock

34

PIN

04211-09129

2
Out of stock

35

BOLT (6X30)

09103-06251

2
Out of stock
