2011 Suzuki GSX1250FAL1 Gear Shifting Diagram

← All diagrams

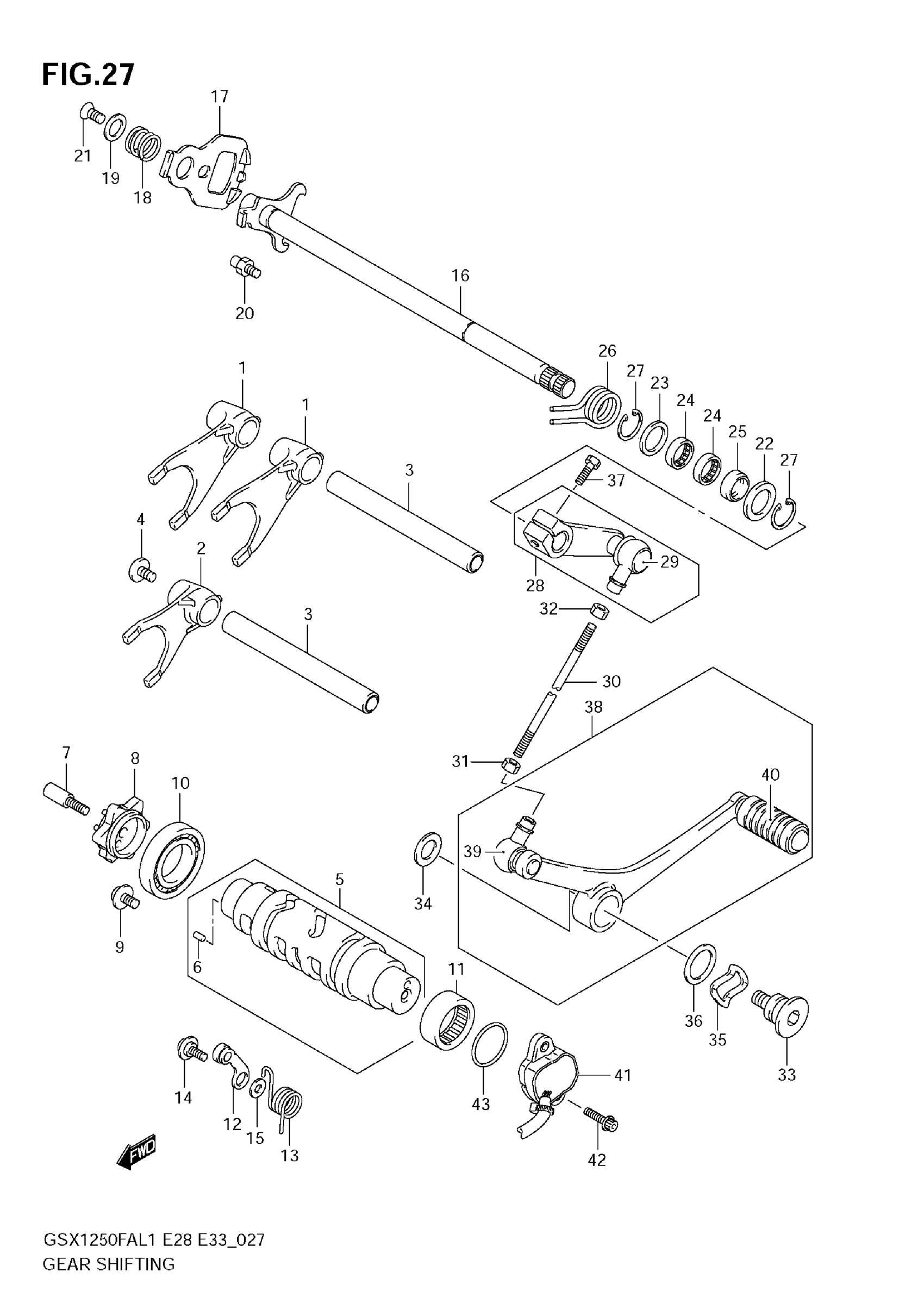

Find the part on the Gear Shifting diagram for your 2011 Suzuki GSX1250FAL1, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2011 Suzuki GSX1250FAL1 Gear Shifting Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

FORK, GEAR SHIFT NO.1

25211-01H01

2
Out of stock

2

FORK,GEAR SHIFT NO.3 This part replaces 25231-01H01.

25231-01H02

1
Out of stock

3

SHAFT, GEAR SHIFT FORK | L:128

25411-27A00

2
Out of stock

4

SCREW (6X12)

09136-06147

1
Out of stock

5

CAM, GEAR SHIFT

25310-18H00

1
Out of stock

6

PIN (4X13.8)

04221-04089

1
Out of stock

7

BOLT, GEAR SHIFT CAM

25312-42F01

1
Out of stock

8

PLATE, GEAR SHIFT CAM

25381-13E30

1
Out of stock

9

SCREW (6X12)

09136-06147

2
Out of stock

10

BEARING (25X47X8)

09262-25006

1
Out of stock

11

BEARING (25X32X12) | LH

09263-25018

1
Out of stock

12

STOPPER,SHIFT CAM This part replaces 25350-06G00.

25350-06G10

1
Out of stock

13

SPRING, GEAR SHIFT STOPPER

25355-46H00

1
Out of stock

14

BOLT (6X14.3)

09111-06041

1
Out of stock

15

WASHER

08211-06141

1
Out of stock

16

SHAFT, GEAR SHIFT

25510-18H00

1
Out of stock

17

PLATE,GEAR SHIFT CAM DRIVE This part replaces 25512-06G10.

25512-06G20

1
Out of stock

18

SPRING, GEAR SHIFT RETURN

25518-01H00

1
Out of stock

19

WASHER, GEAR SHIFT END

25519-01H00

1
Out of stock

20

STOPPER, GEAR SHIFT

25671-01011

1
Out of stock

21

SCREW (6X16)

09126-06014

1
Out of stock

22

WASHER (14X29X0.8) | LH

09160-14016

1
Out of stock

23

SHIM (14X24X1)

09181-14195

1
Out of stock

24

BEARING (14X20X12)

09263-14027

2
Out of stock

25

SEAL, SHIFT SHAFT (14X22X6) This part replaces 09283-14005.

09283-14006

1
Out of stock

26

SPRING

09444-20001

1
Out of stock

27

CIRCLIP

08331-3114A

2
Out of stock

28

ARM, GEAR SHIFT LINK

25520-18H00

1
Out of stock

29

.COVER, DUST This part replaces 25526-47000.

25526-47001

1
Out of stock

30

ROD, GEAR SHIFT LINK

25525-05A10

1
Out of stock

31

NUT | LH

09140-06025

1
Out of stock

32

.NUT

08310-00067

1
Out of stock

33

BOLT,GEAR SHIFT LEVER

25617-18H00

1
Out of stock

34

WASHER (10X28X2.3)

09160-10149

1
Out of stock

35

WASHER

09164-18011

1
Out of stock

36

SHIM (18X26X0.8)

09181-18007

1
Out of stock

37

BOLT

01500-0620A

1
Out of stock

38

LEVER ASSY,GEAR This part replaces 25600-18H00.

25600-18H01

1
Out of stock

39

.COVER, DUST This part replaces 25526-47000.

25526-47001

1
Out of stock

40

RUBBER

25652-20C00

1
Out of stock

41

SENSOR ASSY,GEA This part replaces 37730-18H01.

37730-18H03

1
Out of stock

42

BOLT (5X16)

09106-05023

2
Out of stock

43

O RING (D:2.4,ID:26.2)

09280-26005

1
Out of stock
