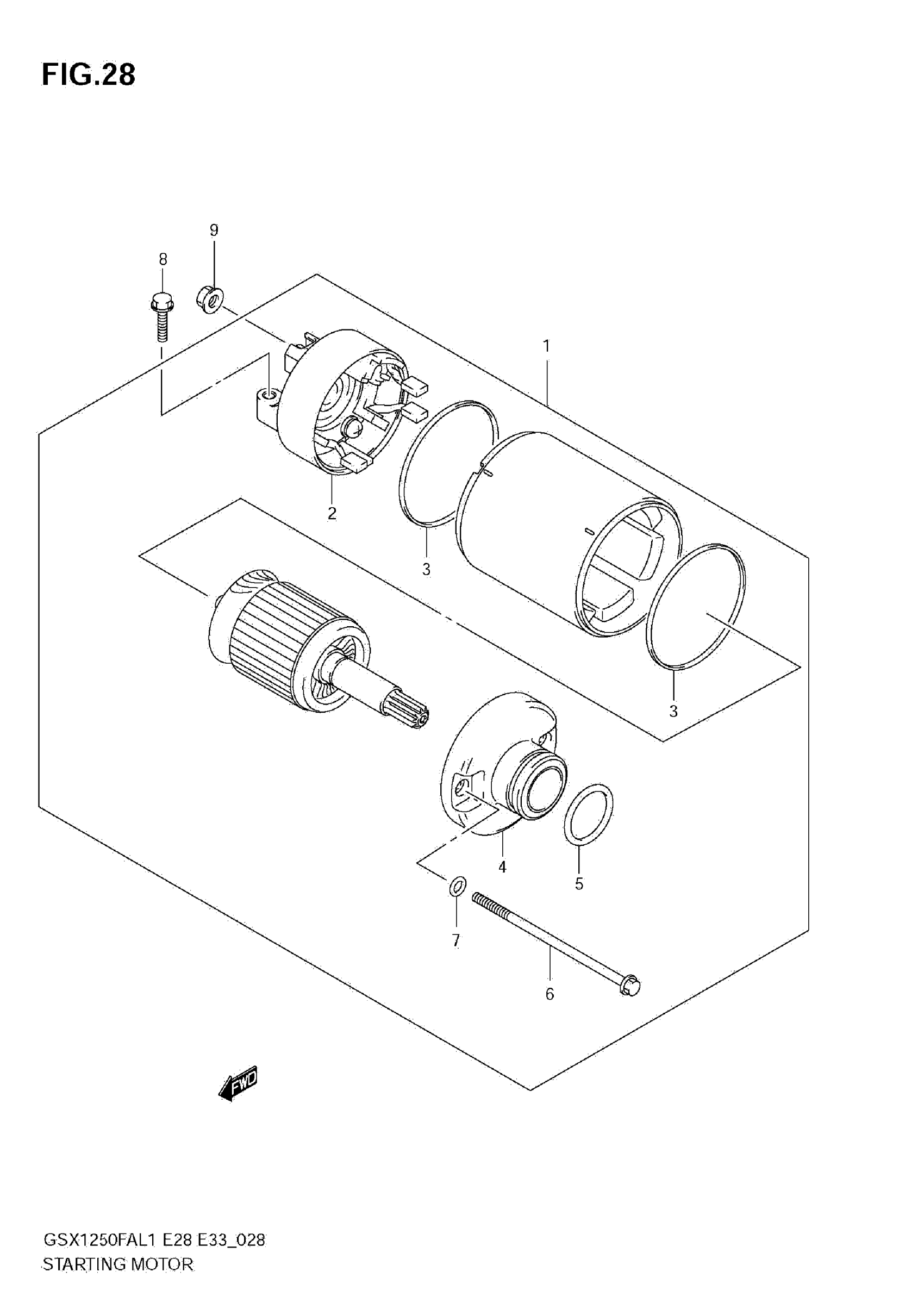

Suzuki GSX1250FAL1 (2011) STARTING MOTOR Diagram

#

Description
Price

1

MOTOR ASSY,STAR This part replaces 31100-18H00.

31100-18H11

$822.42

2

FRAME ASSY

31175-18H00

Unavailable

3

O RING This part replaces 31264-31300.

31264-32E00

$6.57

4

HOUSING ASSY | WITH OIL SEAL

31150-18H00

Unavailable

5

.O-RING (D:3,ID:24.5)

09280-24003

$1.61

6

BOLT

31281-18H00

Unavailable

7

O RING

31143-49040

$4.92

8

BOLT (6X25)

09103-06212

$2.53

9

NUT

08361-3506A

$1.88
