1993 Suzuki GSX1100GP Handlebar Diagram

← All diagrams

Find the part on the Handlebar diagram for your 1993 Suzuki GSX1100GP, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

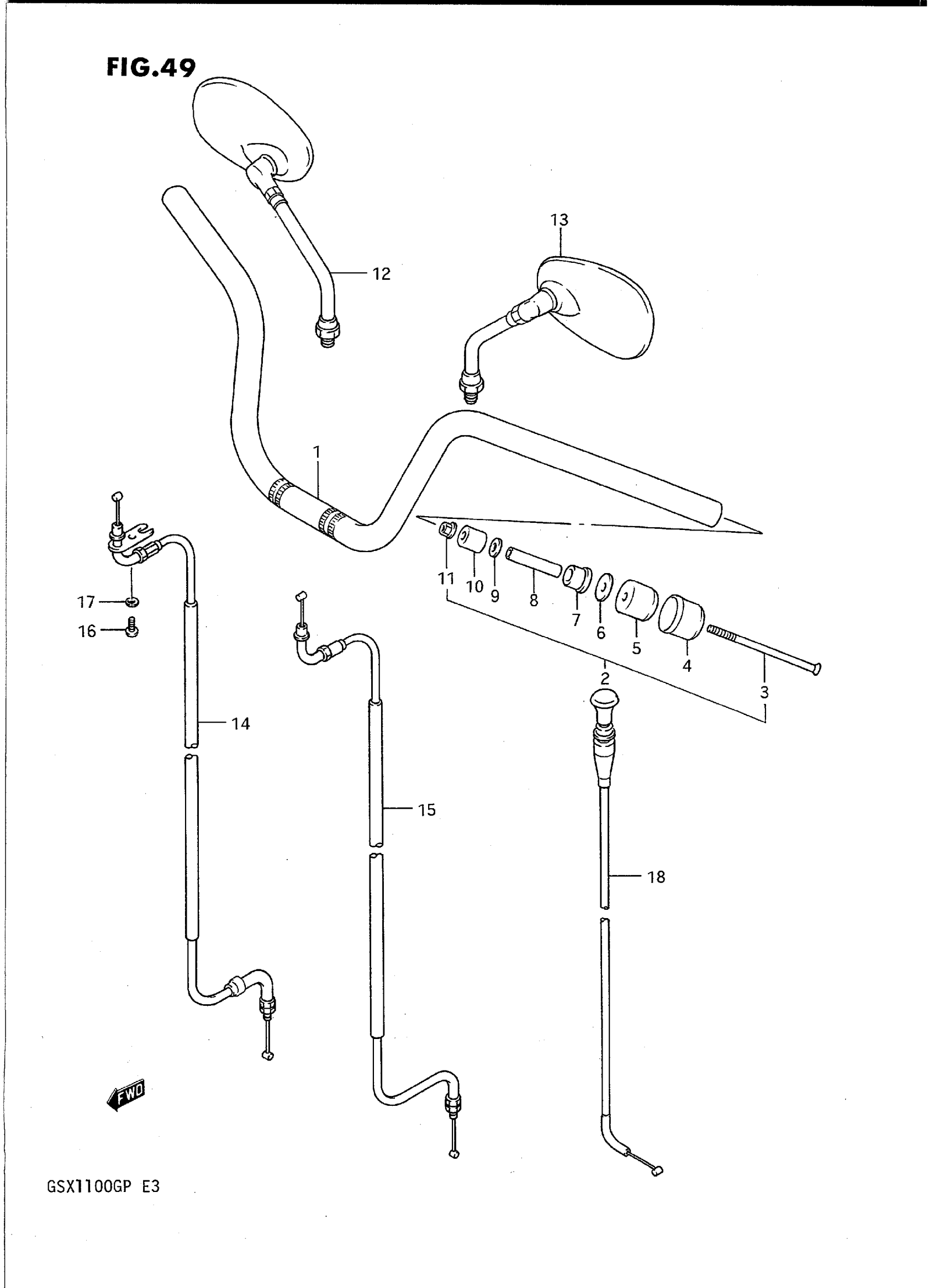

1993 Suzuki GSX1100GP Handlebar Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

HANDLEBAR This part replaces 56111-26D10.

56111-26D11

1
Out of stock

2

BALANCER SET | Includes Item(s) 3 - 11 This part replaces 56200-26820.

56200-38811

2
Out of stock

3

SCREW

09127-06019

2
Out of stock

4

CAP

56274-26D00

2
Out of stock

5

BALANCER

56271-26D10

2
Out of stock

6

SPACER This part replaces 56275-26D00.

56275-26D01

2
Out of stock

7

EXPANDER, OUTER This part replaces 56272-26D00.

56272-26D01

2
Out of stock

8

SPACER

56276-17D00

2
Out of stock

9

WASHER (6.5X18X1.0)

09160-06028

2
Out of stock

10

BALANCER SET This part replaces 56271-26D00.

56200-38811

2
Out of stock

11

NUT

09159-06024

2
Out of stock

12

MIRROR ASSY,REA This part replaces 56500-10D30.

56500-10DA1

1
Out of stock

13

MIRROR ASSY,REA This part replaces 56600-10D30.

56600-10D41

1
Out of stock

14

CABLE ASSY,THRO | MODEL M This part replaces 58300-26D20.

58300-26D23

1
Out of stock

14

CABLE ASSY,THRO | MODEL N/P This part replaces 58300-26D22.

58300-26D23

1
Out of stock

15

CABLE ASSY, THR | MODEL M This part replaces 58300-26D30.

58300-26D33

1
Out of stock

15

CABLE ASSY, THR | MODEL N/P This part replaces 58300-26D32.

58300-26D33

1
Out of stock

16

SCREW

02112-05087

1

$1.55

In stock

17

LOCK WASHER This part replaces 08321-21057.

08321-0105A

1
Out of stock

18

CABLE ASSY,STAR This part replaces 58400-26D00.

58400-26D01

1
Out of stock
