1993 Suzuki GSX1100GP Front Damper Diagram

← All diagrams

Find the part on the Front Damper diagram for your 1993 Suzuki GSX1100GP, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

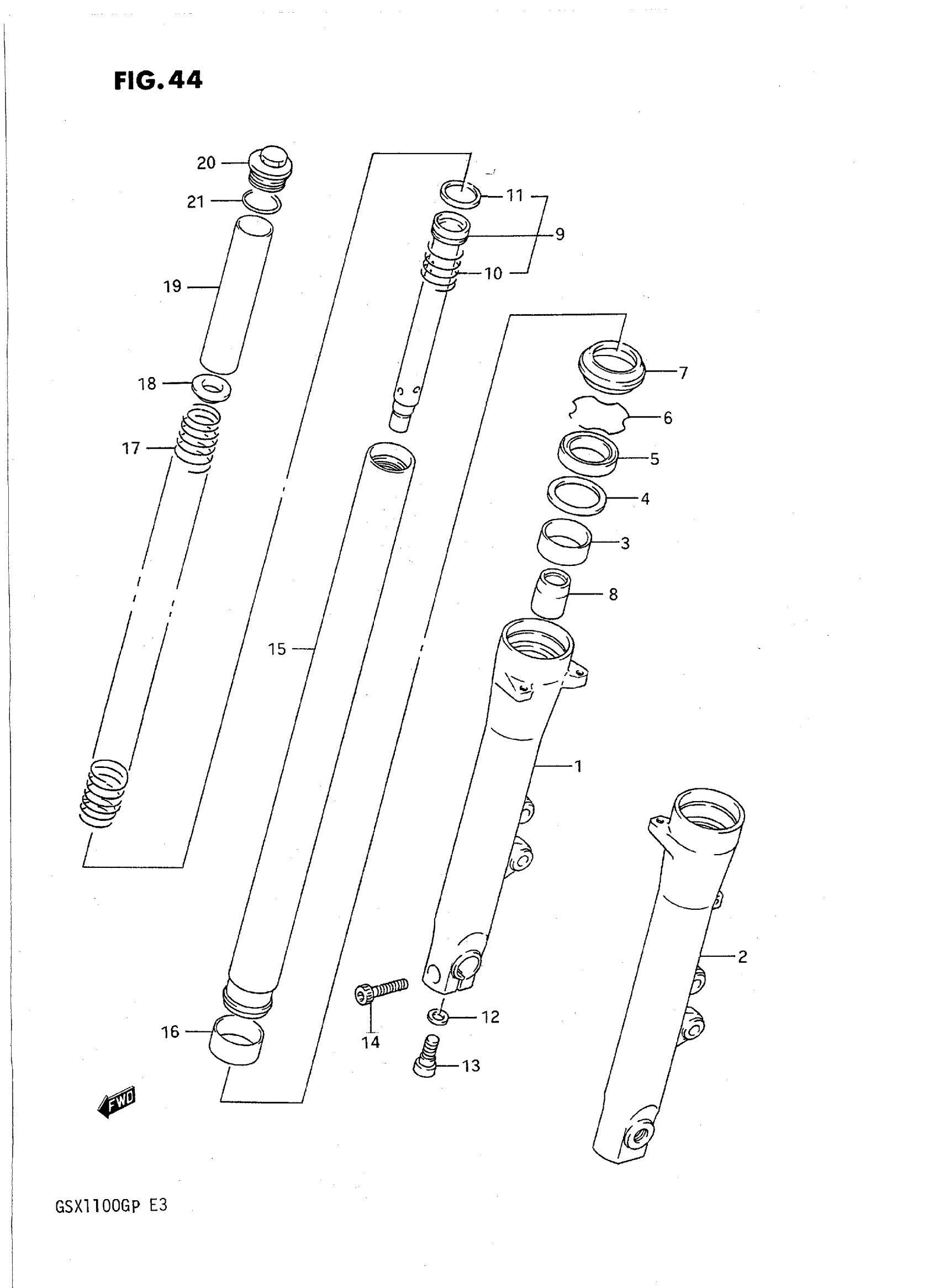

1993 Suzuki GSX1100GP Front Damper Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

DAMPER ASSY, RH | MODEL M

51103-26D10

1
Out of stock

DAMPER ASSY, RH | MODEL N/P

51103-26D50

1
Out of stock

DAMPER ASSY, LH | MODEL M

51104-26D10

1
Out of stock

DAMPER ASSY, LH | MODEL N/P; Includes Item(s) 1 - 21

51104-26D50

1
Out of stock

1

TUBE, OUTER RH

51130-26D00

1
Out of stock

2

TUBE, OUTER LH

51140-26D00

1
Out of stock

3

METAL, SLIDE

51167-40C00

2
Out of stock

4

WASHER

51158-14200

2
Out of stock

5

SEAL, OIL This part replaces 51153-40C00.

51153-46E20

2
Out of stock

6

RING, SNAP

51156-14200

2
Out of stock

7

SEAL, DUST

51173-40C00

2
Out of stock

8

PIECE, OIL LOCK

51195-06C00

2
Out of stock

9

CYLINDER | MODEL M This part replaces 51146-26D10.

51146-26D00

2
Out of stock

9

CYLINDER | MODEL N/P

51146-26D00

2
Out of stock

10

SPRING, REBOUND

51177-26D00

2
Out of stock

11

RING, PISTON

51196-31D00

2
Out of stock

12

GASKET

51148-14200

2
Out of stock

13

BOLT

51147-14200

2
Out of stock

14

BOLT This part replaces 07110-08407.

07130-08407

1
Out of stock

15

TUBE, INNER

51110-26D10

2
Out of stock

16

PISTON

51121-40C00

2
Out of stock

17

SPRING, MAIN | MODEL M This part replaces 51171-26D10.

51171-26D00

2
Out of stock

17

SPRING, MAIN | MODEL N/P

51171-26D00

2
Out of stock

18

GUIDE, SPRING

51172-26D00

2
Out of stock

19

SPACER | MODEL M

51176-26D10

2
Out of stock

19

SPACER | MODEL N/P

51176-26D50

2
Out of stock

20

CAP | MODEL M This part replaces 51351-26D00.

51351-31D00

2
Out of stock

20

CAP, FORK | MODEL N/P

51351-31D00

2
Out of stock

21

.O RING This part replaces 51117-14200.

51117-14201

2
Out of stock
