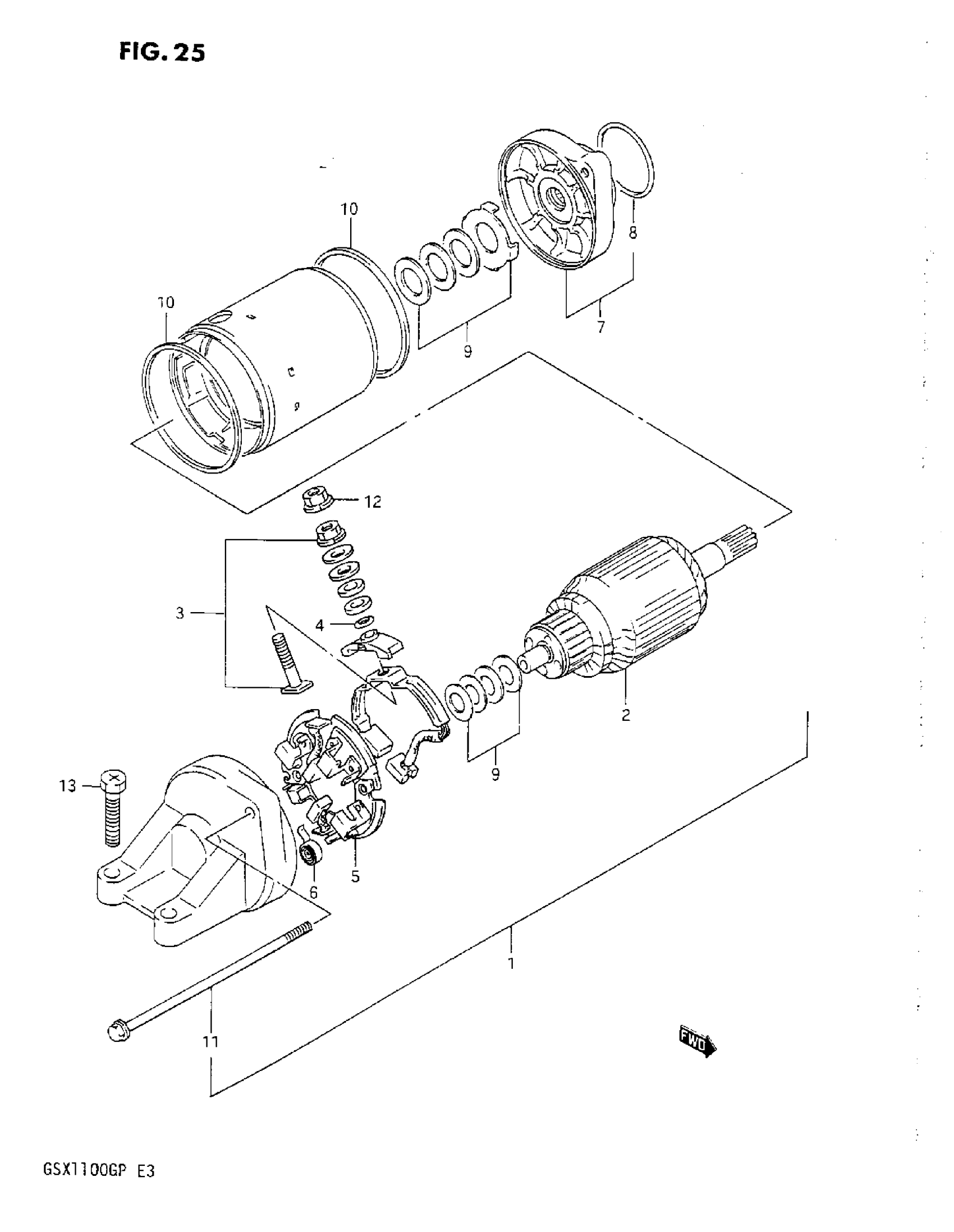

Suzuki GSX1100G (1993) STARTING MOTOR Diagram

#

Description
Price

1

MOTOR ASSY, STARTING This part replaces 31100-26D00.

31100-26D10

Unavailable

2

ARMATURE

31310-40C02

Unavailable

3

TERMINAL SET, BRUSH

31130-38B00

$78.27

4

O-RING

31143-49040

$3.50

5

HOLDER SET, BRUSH

31132-38B00

$78.27

6

SPRING, BRUSH

31135-38B00

$6.10

7

BRACKET ASSY, FRONT

31150-26D00

Unavailable

8

.O RING This part replaces 31156-40C00.

31156-48B00

$13.57

9

WASHER SET

31170-19B10

$14.18

10

O RING This part replaces 31264-31300.

31264-32E00

$6.29

11

BOLT

31280-26D00

$23.08

12

NUT This part replaces 08361-35066.

08361-3506A

$1.81

13

BOLT, STARTING MOTOR This part replaces 09128-06024.

09103-06212

$2.53
