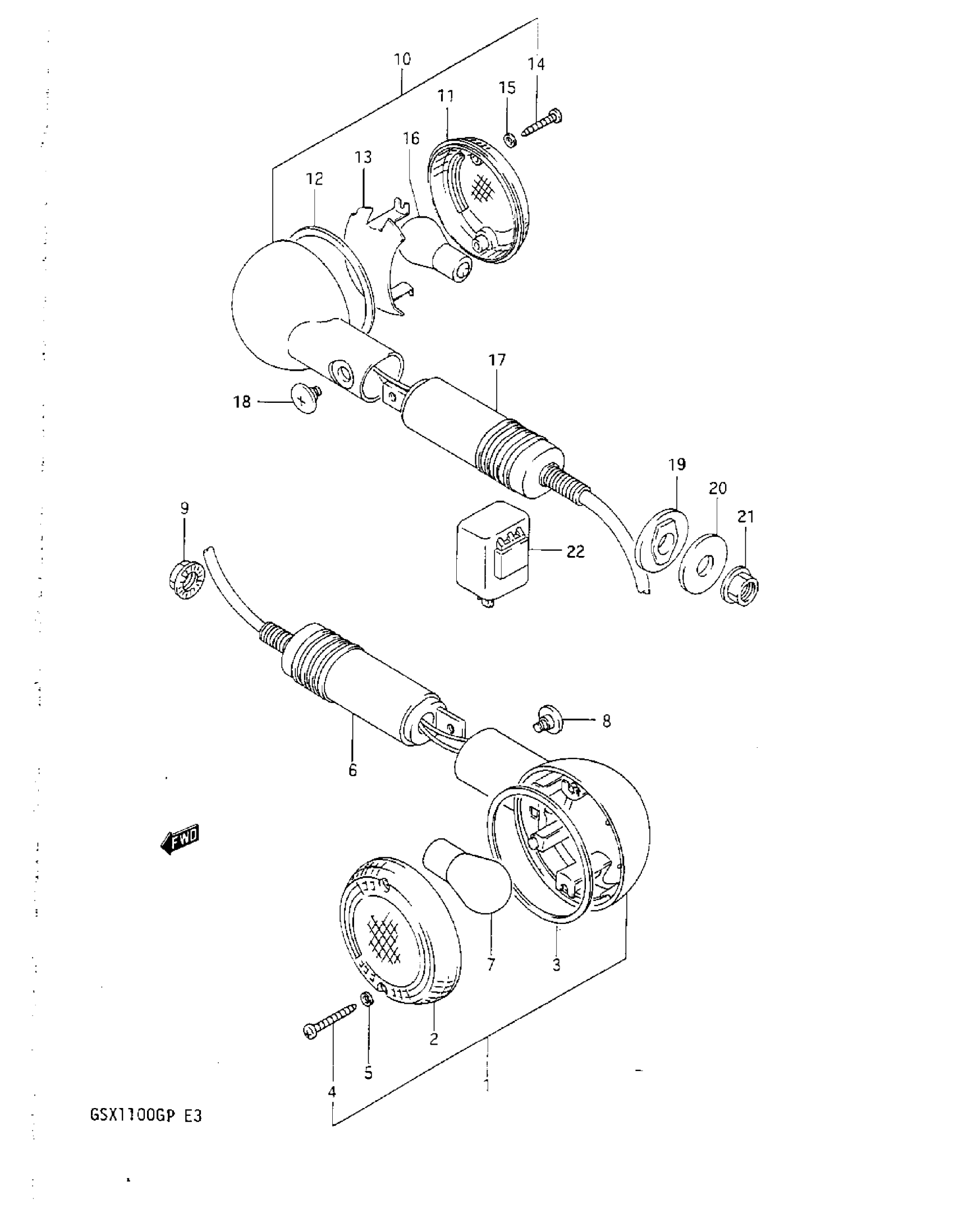

Suzuki GSX1100G (1993) TURN SIGNAL LAMP Diagram

#

Description
Price

1

LAMP ASSY, FRONT TURN RH

35601-26D00

Unavailable

1

LAMP ASSY, FRONT TURN RH This part replaces 35602-26D00.

35601-26D00

Unavailable

2

LENS

35612-38A01

$13.02

3

GASKET

35613-38A00

$10.99

4

SCREW This part replaces 03211-04256.

03211-0425B

$2.95

5

GASKET

35627-43010

$2.29

6

STAY, TURN LAMP

35619-45C00

Unavailable

7

BULB (12V, 21/5W)

09471-12128

$6.08

8

SCREW

35623-38A01

$4.75

9

NUT This part replaces 08316-26105.

08316-2010B

$4.38

10

LAMP ASSY, REAR TURN RH

35603-45C30

Unavailable

10

LAMP ASSY, REAR TURN RH This part replaces 35604-45C30.

35603-45C30

Unavailable

11

LENS

35652-38A21

$15.43

12

GASKET

35613-38A00

$10.99

13

REFLECTOR

35654-38A20

Unavailable

14

SCREW This part replaces 03211-04256.

03211-0425B

$2.95

15

GASKET

35627-43010

$2.29

16

BULB (12V, 21W)

09471-12045

$2.95

17

STAY, TURN LAMP

35659-45C00

Unavailable

18

SCREW

35623-38A01

$4.75

19

SPACER

35695-17C00

$3.69

20

WASHER

09160-10094

$4.03

21

NUT | MODEL M This part replaces 08316-26105.

08316-2010B

$4.38

21

NUT | MODEL N/P This part replaces 08310-12108.

08310-00107

$2.19

22

RELAY ASSY, TURNSIGNAL This part replaces 38610-31310.

38610-31X50

$90.45
