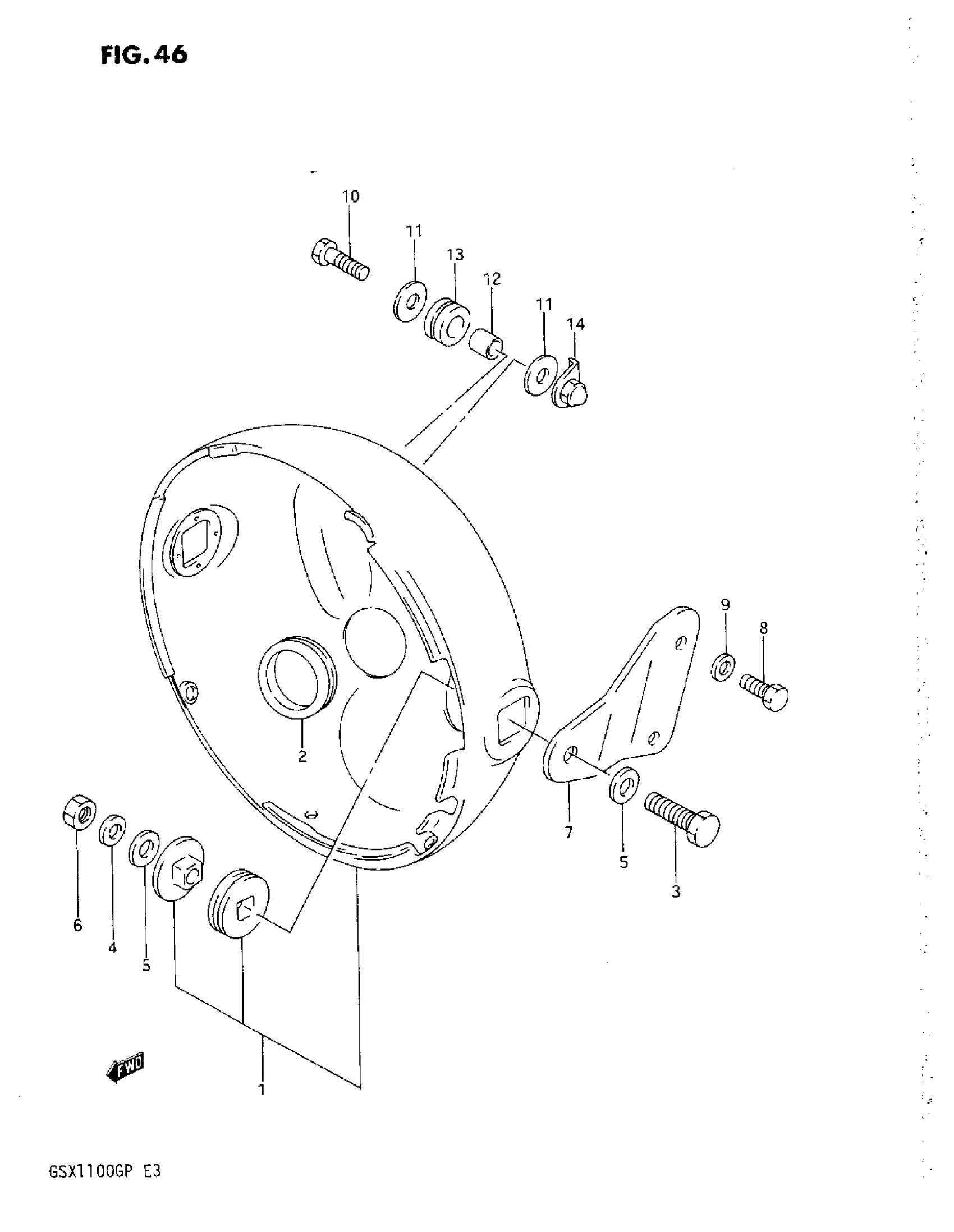

Suzuki GSX1100G (1993) HEADLAMP HOUSING Diagram

#

Description
Price

1

HOUSING, HEADLAMP

51810-01D11

Unavailable

2

GROMMET This part replaces 51817-01D00.

51817-01D01

Unavailable

3

BOLT

01204-08307

$2.00

4

.LOCK WASHER This part replaces 08321-21088.

08321-01087

$1.83

5

WASHER This part replaces 08322-11088.

08322-01087

$1.86

6

NUT This part replaces 08310-12088.

08310-00087

$1.83

7

STAY, HEADLAMP HOUSING RH

51851-26D00

Unavailable

7

STAY, HEADLAMP HOUSING LH

51861-26D00

Unavailable

8

BOLT

01204-06127

$2.25

9

WASHER This part replaces 08322-21067.

08322-01067

$1.86

10

BOLT This part replaces 01234-06258.

01234-0625A

Unavailable

11

WASHER This part replaces 09160-06006.

09160-06084

$1.77

12

SPACER

09180-07004

$2.38

13

CUSHION

09320-10015

$2.53

14

PLATE

51815-06C00

Unavailable
