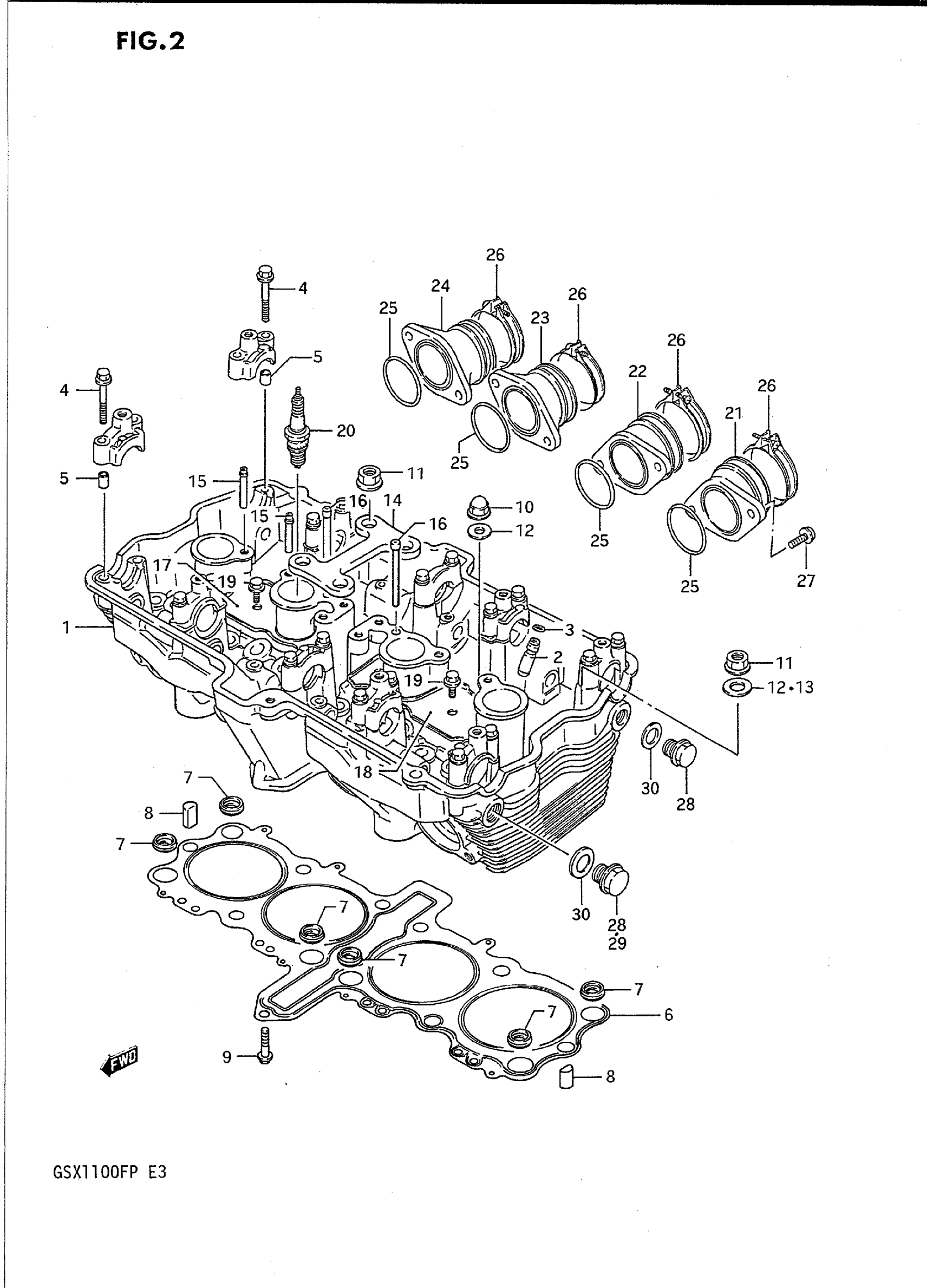

Suzuki GSX1100FP (1993) CYLINDER HEAD Diagram

#

Description
Price

1

HEAD ASSY, CYLINDER | MODEL J This part replaces 11100-48B02.

11100-48B03

Unavailable

1

HEAD ASSY, CYLINDER | MODEL K/L/M/N/P

11100-48B03

Unavailable

1

HEAD ASSY, CYLINDER | MODEL JCALIFORNIA ONLY This part replaces 11100-48B10.

11100-48B11

Unavailable

1

HEAD ASSY, CYLINDER | MODEL K/L/M/N/PCALIFORNIA ONLY; Includes Item(s) 2 - 5

11100-48B11

Unavailable

2

GUIDE, VALVE

11116-06B70

$45.97

3

.RING (10X85)

09381-10004

$1.35

4

BOLT (6X39)

09103-06026

$1.84

5

PIN

09206-08001

$1.77

6

GASKET,CYLINDER | MODEL J This part replaces 11141-48B11.

11141-48B22

Unavailable

6

GASKET,CYLINDER | MODEL K/L/M/NMODEL J/K/L/M/N CALIFORNIA This part replaces 11141-48B20.

11141-48B22

Unavailable

6

GASKET,CYLINDER | MODEL P This part replaces 11141-48B21.

11141-48B22

Unavailable

7

O RING This part replaces 11143-48B01.

11143-32F00

$5.91

8

PIN

09209-11007

$21.60

9

BOLT | MODEL J/K/LMODEL M ~F.NO.100613 This part replaces 01517-06254.

01550-0625A

$1.97

9

BOLT | MODEL M F.NO.100614~MODEL N/P This part replaces 01517-06305.

01550-0630A

$2.31

10

NUT | MODEL JMODEL K/L/M/N/P

09159-10069

$7.67

11

NUT | MODEL JMODEL K/L/M/N/P This part replaces 08316-16106.

08316-1010B

$2.65

12

.GASKET (10.2X20X2.3) | MODEL JMODEL K/L/M/N/P

09168-10031

$2.01

13

WASHER (10.5X22X2.3) | MODEL K/L/M/N/P This part replaces 09160-10060.

09160-10039

$2.24

14

PLATE, HEAD REINFORCEMENT | MODEL K/L/M/N/P

11138-40C00

Unavailable

15

PIPE, OIL NO.1,2

11131-27A00

$7.22

16

PIPE, OIL NO.3

11133-27A00

Unavailable

17

PLATE, OIL PIPE RH

11135-27A02

Unavailable

18

PLATE, OIL PIPE LH

11136-27A02

Unavailable

19

BOLT This part replaces 01517-06128.

01550-06127

$2.31

20

SPARK PLUG (NGK,JR9B)

09482-00389

$6.14

20

SPARK PLUG (NGK,JR10B) | OPT

09482-00391

$5.81

21

PIPE, INTAKE LH | MODEL J/K/L/M/N This part replaces 13110-06B00.

13101-06B00

Unavailable

21

PIPE, INTAKE LH | MODEL P

13101-06B00

Unavailable

22

PIPE, INTAKE ML | MODEL J/K/L/M/N This part replaces 13120-06B00.

13102-06B00

Unavailable

22

PIPE, INTAKE ML | MODEL P

13102-06B00

Unavailable

23

PIPE, INTAKE MR | MODEL J/K/L/M/N This part replaces 13130-06B00.

13103-06B00

Unavailable

23

PIPE, INTAKE MR | MODEL P

13103-06B00

Unavailable

24

PIPE, INTAKE RH | MODEL J/K/L/M/N This part replaces 13140-06B00.

13104-06B00

Unavailable

24

PIPE, INTAKE RH | MODEL P

13104-06B00

Unavailable

25

O-RING (D:2.4,ID:39.7) This part replaces 09280-40010.

09280-40020

$2.80

26

CLAMP

09402-50208

$4.30

27

SCREW This part replaces 02152-06165.

02112-0616A

$1.43

28

PLUG, CYLINDER HEAD | CALIFORNIA ONLY

09247-14034

Unavailable

29

PLUG, CYLINDER HEAD, EX | CALIFORNIA ONLY

09247-14032

$5.75

30

GASKET

09168-14004

$1.69
