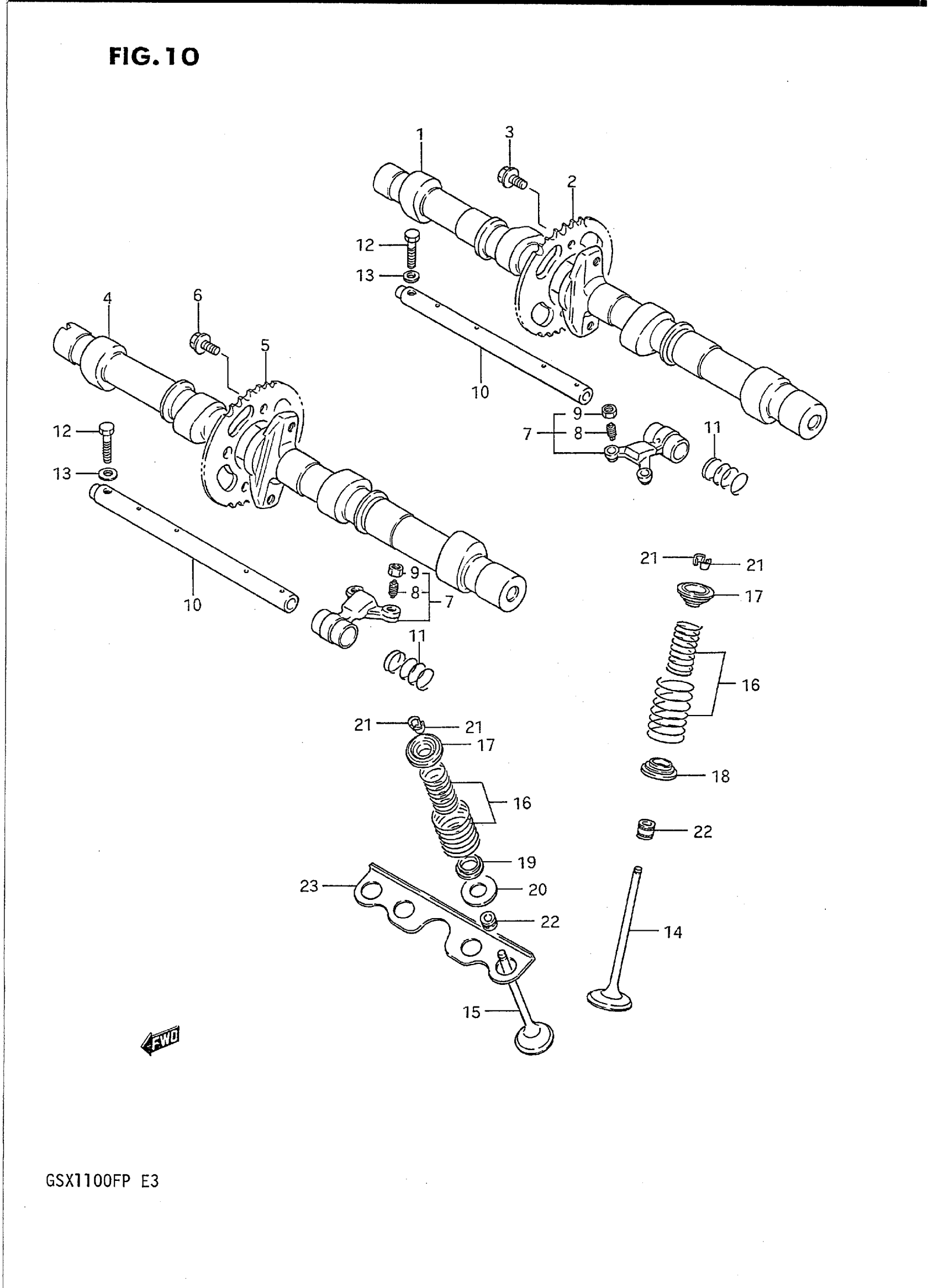

Suzuki GSX1100FP (1993) CAM SHAFT - VALVE Diagram

#

Description
Price

1

CAM SHAFT, INTAKE | MODEL J/K/L This part replaces 12711-06B03.

12711-06B90

Unavailable

1

CAM SHAFT, INTAKE | MODEL M/N/P

12711-06B90

Unavailable

2

SPROCKET, CAM SHAFT

12741-06B00

Unavailable

3

BOLT

09103-07001

$2.51

4

CAM SHAFT, EXHAUST | MODEL J/K/L This part replaces 12721-06B03.

12721-06B90

Unavailable

4

CAM SHAFT, EXHAUST | MODEL M/N/P

12721-06B90

Unavailable

5

SPROCKET, CAM SHAFT

12741-06B00

Unavailable

6

BOLT

09103-07001

$2.51

7

ARM, VALVE ROCKER | Includes Item(s) 8 - 9 This part replaces 12840-27A00.

12840-27A01

$86.55

8

SCREW, TAPPET ADJUSTING This part replaces 12842-49210.

12842-49201

$7.48

9

.NUT,TAPPET ADJUSTING This part replaces 12843-04A00.

12843-27A00

$2.80

10

SHAFT, VALVE ROCKER ARM

12861-27A00

Unavailable

11

SPRING

09440-13014

$2.67

12

BOLT This part replaces 01107-06306.

01500-0630A

$2.21

13

.WASHER This part replaces 08322-21066.

08322-0106B

$2.24

14

VALVE, INTAKE

12911-06B02

$53.58

15

VALVE, EXHAUST

12912-06B00

Unavailable

16

SPRING SET, VALVE

12920-06B00

$13.02

17

RETAINER, SPRING

12931-27A01

$9.50

18

SEAT,VALVE SPRING | MODEL J/K/L/M/N This part replaces 12933-27A00.

12933-81400

$4.86

18

SEAT,VALVE SPRING | MODEL P

12933-81400

$4.86

19

SEAT, SPRING EXHAUST | MODEL J/K/L/M/N This part replaces 12934-27A00.

12934-27A01

$3.92

19

SEAT, EXHAUST INNER | MODEL P

12934-27A01

$3.92

20

SEAT, EXHAUST OUTER

12935-27A00

$3.67

21

COTTER, VALVE

12932-27A00

$2.20

22

OIL SEAL

09289-05011

$5.70

23

PLATE This part replaces 11137-27A01.

11137-27A02

Unavailable
