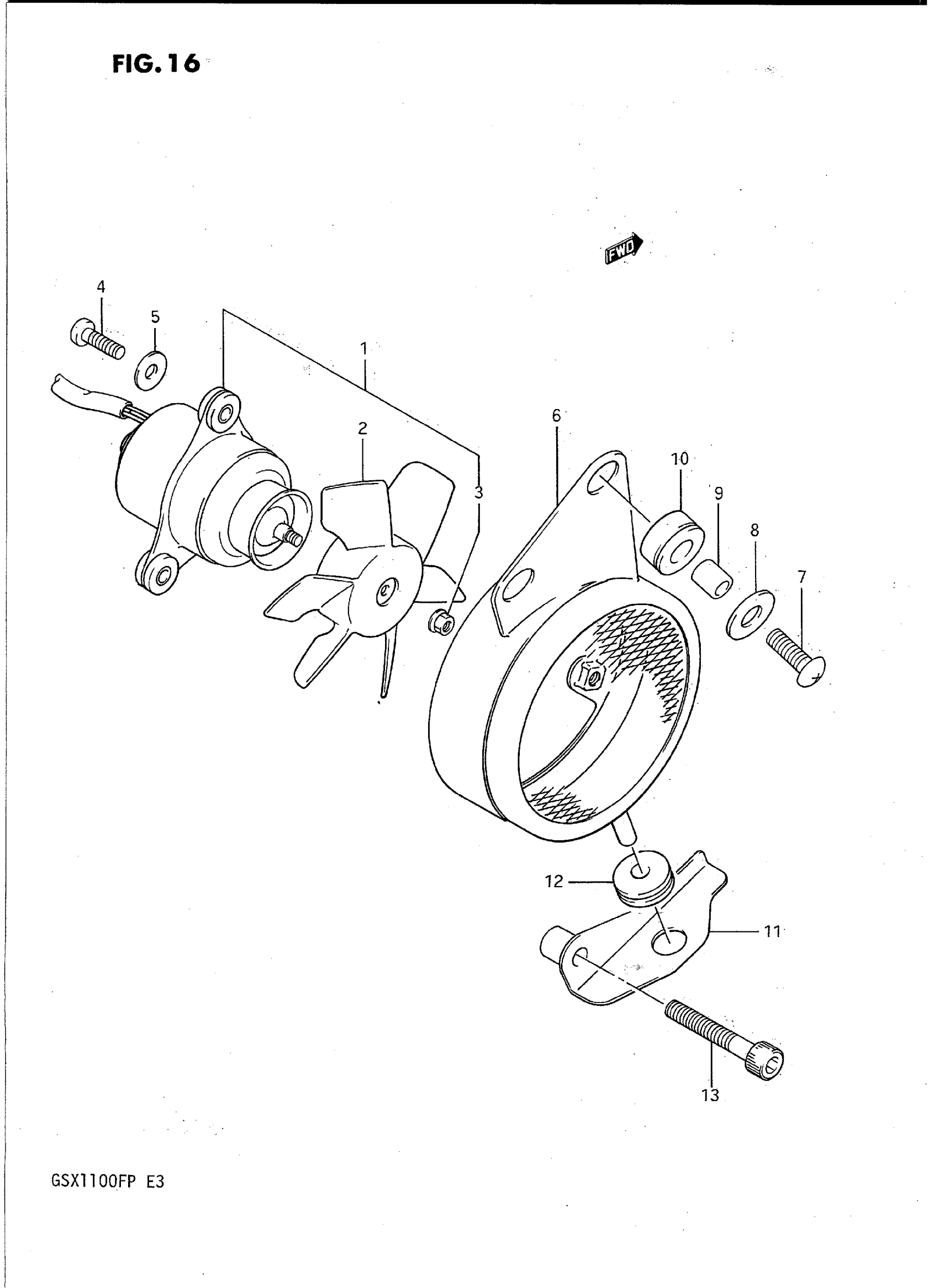

Suzuki GSX1100FP (1993) COOLING FAN (CALIFORNIA ONLY) Diagram

#

Description

Price

1

FAN ASSY, COOLING | Includes Item(s) 2 - 3

17100-48B00

Unavailable

2

FAN

17120-48B00

Unavailable

3

NUT This part replaces 08316-16036.

08316-10033

Unavailable

4

SCREW This part replaces 02112-04165.

02112-0416A

$1.24

5

WASHER This part replaces 09160-04017.

09160-04022

$2.35

6

SHROUD, FAN

17250-48B01

Unavailable

7

SCREW This part replaces 02142-06205.

02142-0620A

$1.38

8

WASHER

09160-06056

$1.73

9

SPACER

09180-06137

Unavailable

10

CUSHION

09320-09036

$4.70

11

BRACKET, FAN SHROUD

17260-48B01

Unavailable

12

CUSHION This part replaces 09320-05006.

09320-06504

$4.47

13

BOLT, STATOR This part replaces 07110-06405.

07130-0640B

$3.10
