1993 Suzuki GSX1100FP Clutch Diagram

← All diagrams

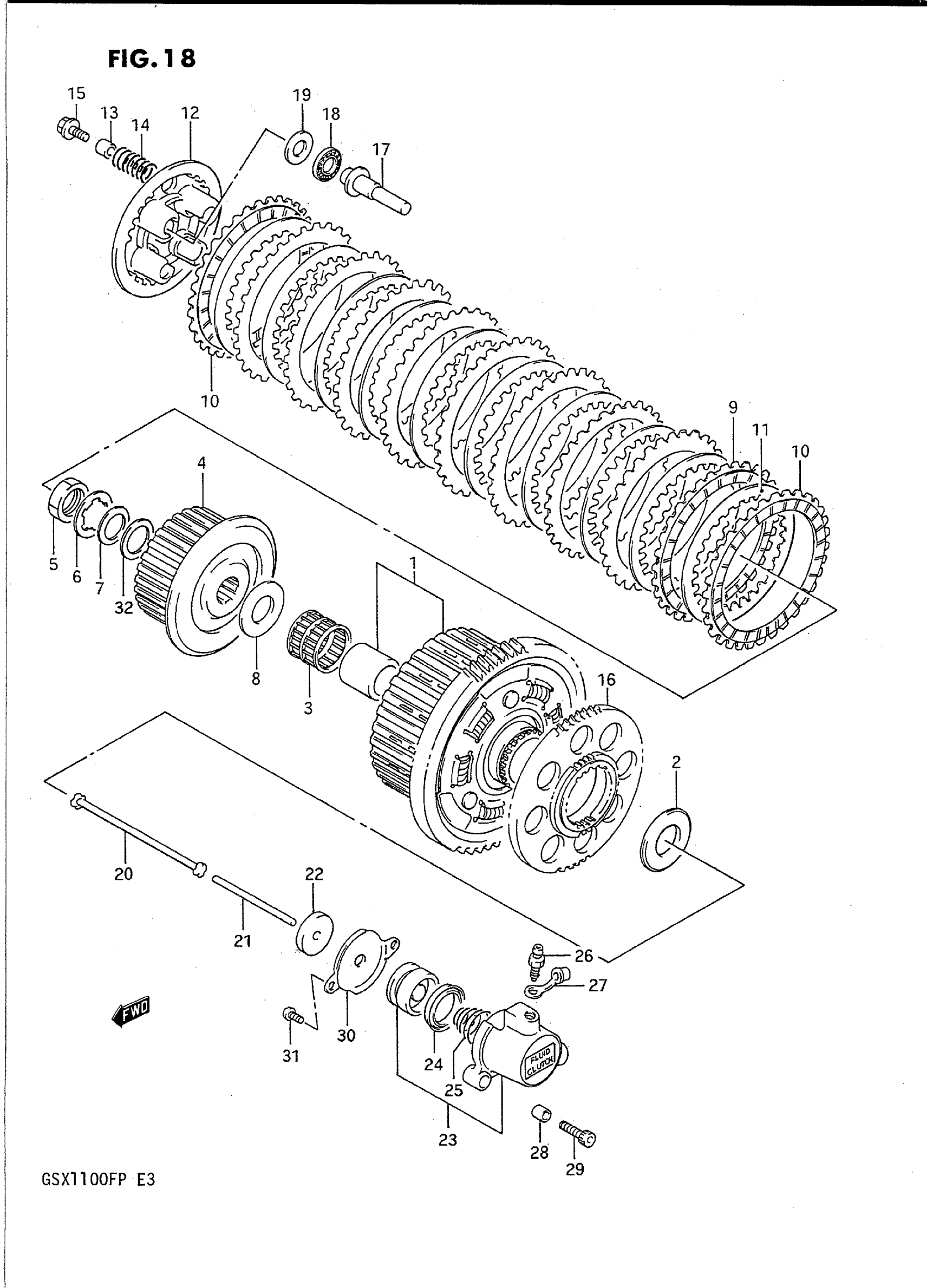

Find the part on the Clutch diagram for your 1993 Suzuki GSX1100FP, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1993 Suzuki GSX1100FP Clutch Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

NO DESCRIPTION AVAILABLE | MODEL J/K This part replaces 21200-48811.

21200-48814

1
Out of stock

1

NO DESCRIPTION AVAILABLE | MODEL L/M/N This part replaces 21200-48813.

21200-48814

1
Out of stock

1

NO DESCRIPTION AVAILABLE | MODEL P This part replaces 21200-48820.

21200-48814

1
Out of stock

2

WASHER

09160-25067

1
Out of stock

3

BEARING

09263-35017

1
Out of stock

4

HUB, SLEEVE | MODEL J/K/L/M/N This part replaces 21410-48B01.

21410-48B02

1
Out of stock

4

HUB, SLEEVE | MODEL P

21410-48B02

1
Out of stock

5

NUT

09140-24012

1
Out of stock

6

WASHER, LOCK

09167-25007

1
Out of stock

7

WASHER

09164-24006

1
Out of stock

8

.WASHER (25X50X2.5)

09160-25056

1
Out of stock

9

PLATE, DRIVE NO.1 (T:2.6)

21441-48B00

9
Out of stock

10

PLATE, CLUTCH DRIVE NO.2

21442-48B00

2
Out of stock

11

PLATE, DRIVEN (T:2)

21451-48B00

10
Out of stock

12

DISC, PRESSURE

21462-06B00

1
Out of stock

13

SPACER (6.2X12X14)

09180-06174

4
Out of stock

14

SPRING

09440-20018

4
Out of stock

15

BOLT (6X30) | MODEL J/K/L/M/N This part replaces 09116-06073.

09116-06171

4
Out of stock

15

BOLT (6X30) | MODEL P This part replaces 09116-06163.

09116-06171

4
Out of stock

16

NO DESCRIPTION AVAILABLE This part replaces 22721-06B02.

22721-06B03

1
Out of stock

17

PIECE, PUSH

23121-06B00

1
Out of stock

18

BEARING

09263-15003

1
Out of stock

19

WASHER, CLUTCH PUSH This part replaces 09160-15015.

09160-15045

1
Out of stock

20

ROD, PUSH RH

23110-27A00

1
Out of stock

21

ROD,CLUTCH PUSH,L

23111-15501

1
Out of stock

22

OIL SEAL

09285-06015

1
Out of stock

23

CYLINDER,CLUTCH | Includes Item(s) 24 - 27 This part replaces 23160-08A02.

23160-08A03

1
Out of stock

24

CUP

23163-05A00

1
Out of stock

25

SPRING

23164-05A00

1
Out of stock

26

BLEEDER

59121-01A00

1
Out of stock

27

CAP, BLEEDER

59122-01A00

1
Out of stock

28

PIN

04211-09129

2
Out of stock

29

BOLT This part replaces 07110-06255.

07130-0625B

2
Out of stock

30

COVER, CYLINDER This part replaces 23117-27A03.

23117-46E00

1
Out of stock

31

SCREW This part replaces 02112-06106.

02112-0610B

2
Out of stock

32

SHIM (T:0.50) | MODEL J/K/L/M/N This part replaces 08221-25365.

09181-25186

1
Out of stock

32

WASHER | MODEL P

09167-25024

1
Out of stock
