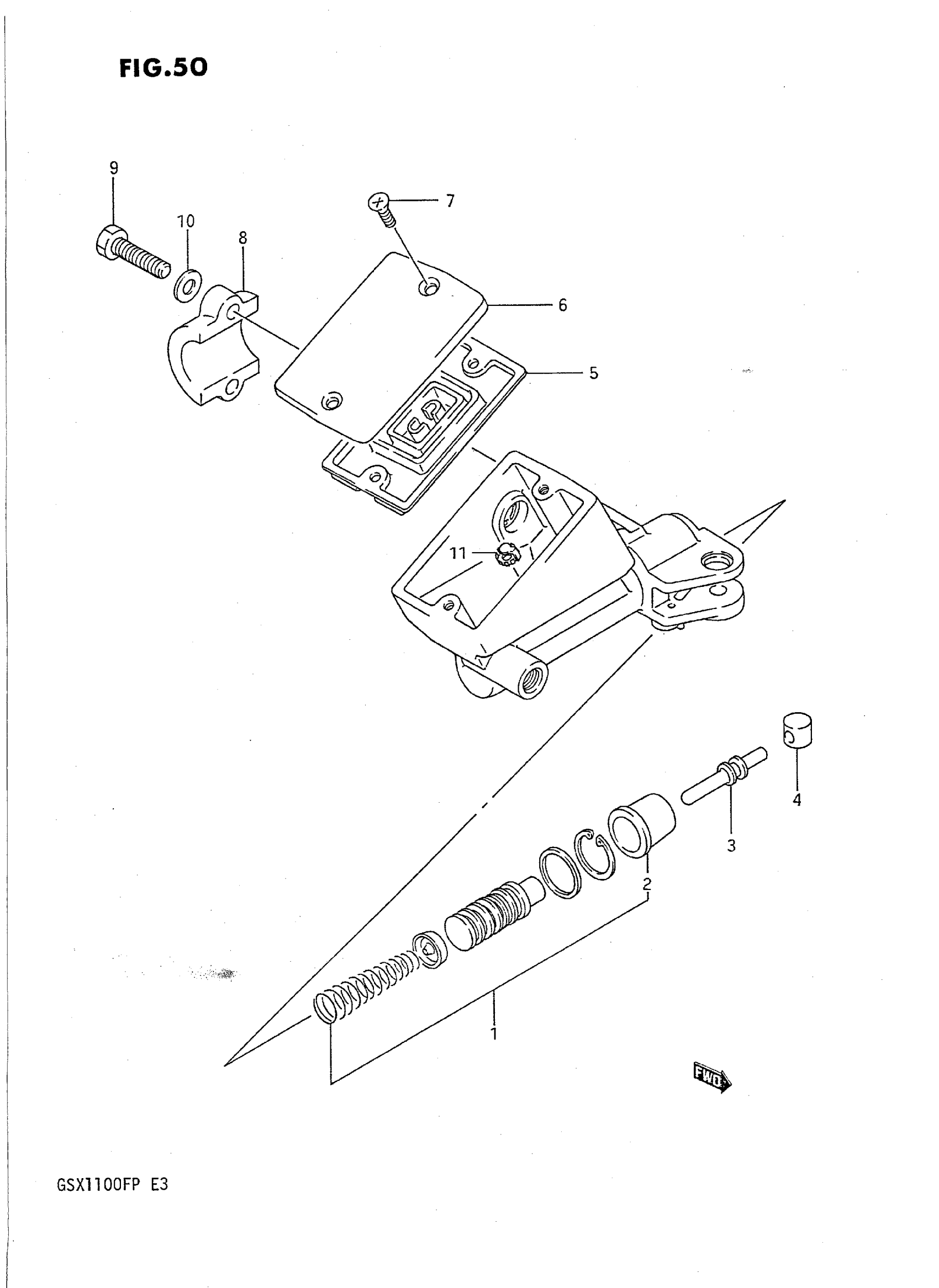

Suzuki GSX1100FP (1993) CLUTCH MASTER CYLINDER Diagram

#

Description

Price

CYLINDER ASSY, CLUTCH MASTER | MODEL J/K->59800-48B01 This part replaces 59800-48B00.

59800-48B01

Unavailable

CYLINDER ASSY, CLUTCH MASTER | MODEL L/M/N/P; Includes Item(s) 1 - 11

59800-48B01

Unavailable

1

PISTON & CUP SET

59800-08810

$36.14

2

BOOT

59666-44300

$5.30

3

PUSH ROD

59871-08A00

Unavailable

4

BUSH

59892-08A00

$4.63

5

DIAPHRAGM

59667-49460

$8.95

6

CAP | MODEL J/K

59669-24A00

Unavailable

6

CAP | MODEL L/M/N/P This part replaces 59669-24A01.

59669-24A00

Unavailable

7

SCREW

69689-49300

$1.81

8

HOLDER

59671-19B00

$22.65

9

BOLT, GEAR SHIFT ARM This part replaces 01107-06255.

01500-0625A

$1.77

10

.WASHER This part replaces 08322-21064.

08322-0106B

$2.24

11

PROTECTOR

59664-48B00

$12.43
