1993 Suzuki GSX1100FP Battery Diagram

← All diagrams

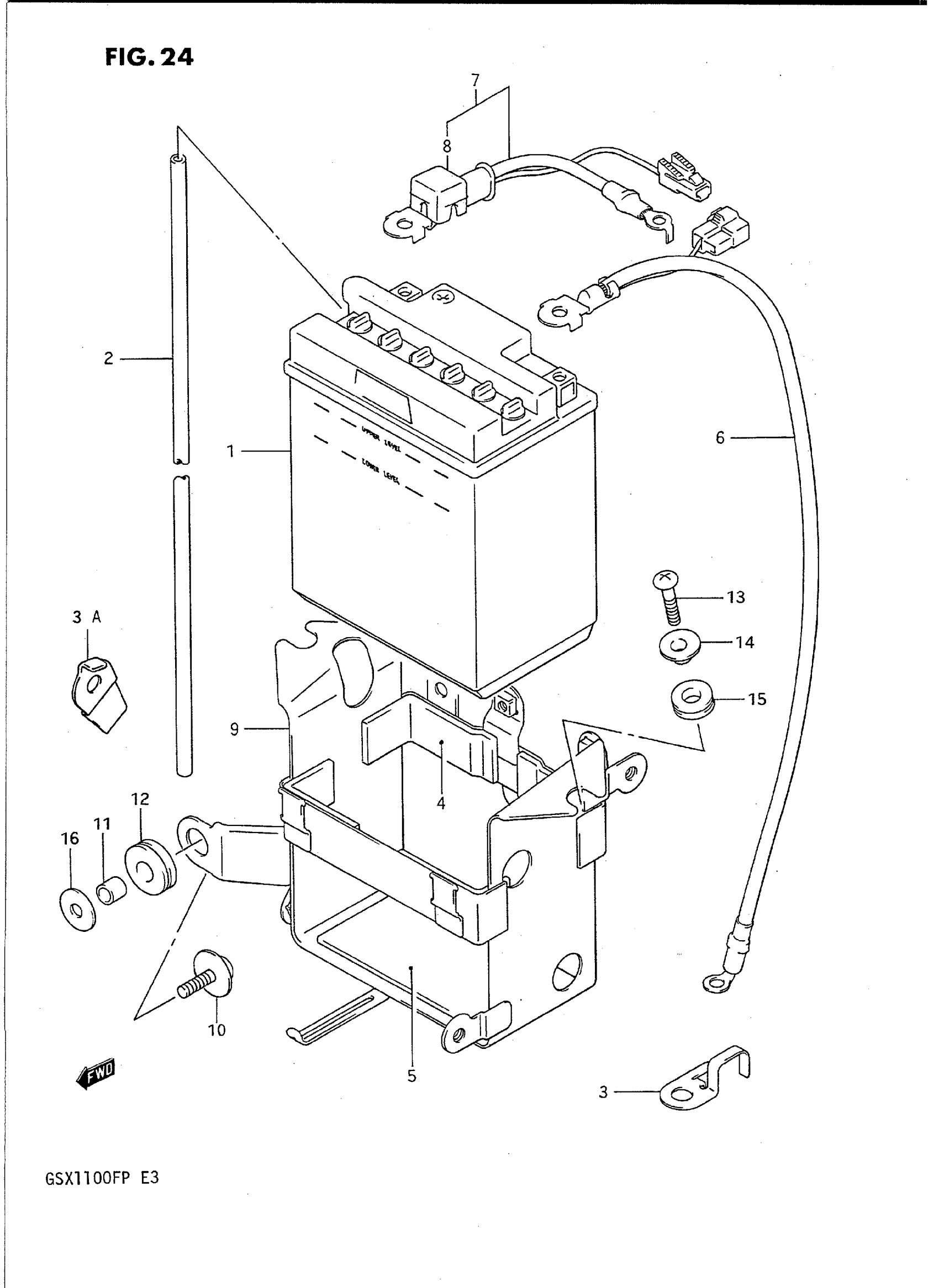

Find the part on the Battery diagram for your 1993 Suzuki GSX1100FP, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1993 Suzuki GSX1100FP Battery Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

BATTERY ASSY (12V,14AH) This part replaces 33610-05A30.

33610-05A10

1
Out of stock

2

HOSE,BATTERY EX | L:700->650 This part replaces 33680-14A00.

33680-16A11

1
Out of stock

2

HOSE,BATTERY EX | L:600 This part replaces 33680-31003.

33680-16A11

1
Out of stock

3

CLAMP, BATTERY EXHAUST HOSE

33672-48B00

1
Out of stock

3A

CLAMP, BATTERY EXHAUST HOSE

33672-48B11

1
Out of stock

4

CUSHION, REAR FENDER REAR This part replaces 33652-29100.

33651-37000

4
Out of stock

5

CUSHION | CUT AS REQUIRED PROFILE(50X115)

33651-37000

1
Out of stock

6

LEAD WIRE, BATTERY (-)

33860-48B00

1
Out of stock

7

WIRE,BATT PLUS | Includes Item(s) 8 This part replaces 33820-48B00.

33820-48B01

1
Out of stock

8

CAP, BATTERY PLUS This part replaces 33624-24500.

33624-35B00

1
Out of stock

9

HOLDER, BATTERY | MODEL J

41540-48B02

1
Out of stock

9

HOLDER, BATTERY | MODEL K/L

41540-48C00

1
Out of stock

9

HOLDER, BATTERY | MODEL M/N/P This part replaces 41540-48C10.

41540-48C00

1
Out of stock

10

SCREW (6X16) This part replaces 09136-06102.

09136-06121

1
Out of stock

11

SPACER This part replaces 09180-06152.

09180-06262

1
Out of stock

12

CUSHION This part replaces 09320-09021.

09320-09502

1
Out of stock

13

SCREW This part replaces 02142-06205.

02142-0620A

2
Out of stock

14

WASHER, SIDE

09169-06057

2
Out of stock

15

CUSHION This part replaces 09320-08030.

09320-08511

2
Out of stock

16

WASHER This part replaces 09160-06012.

09160-06054

1
Out of stock
