1993 Suzuki GSX1100FP Alternator Diagram

← All diagrams

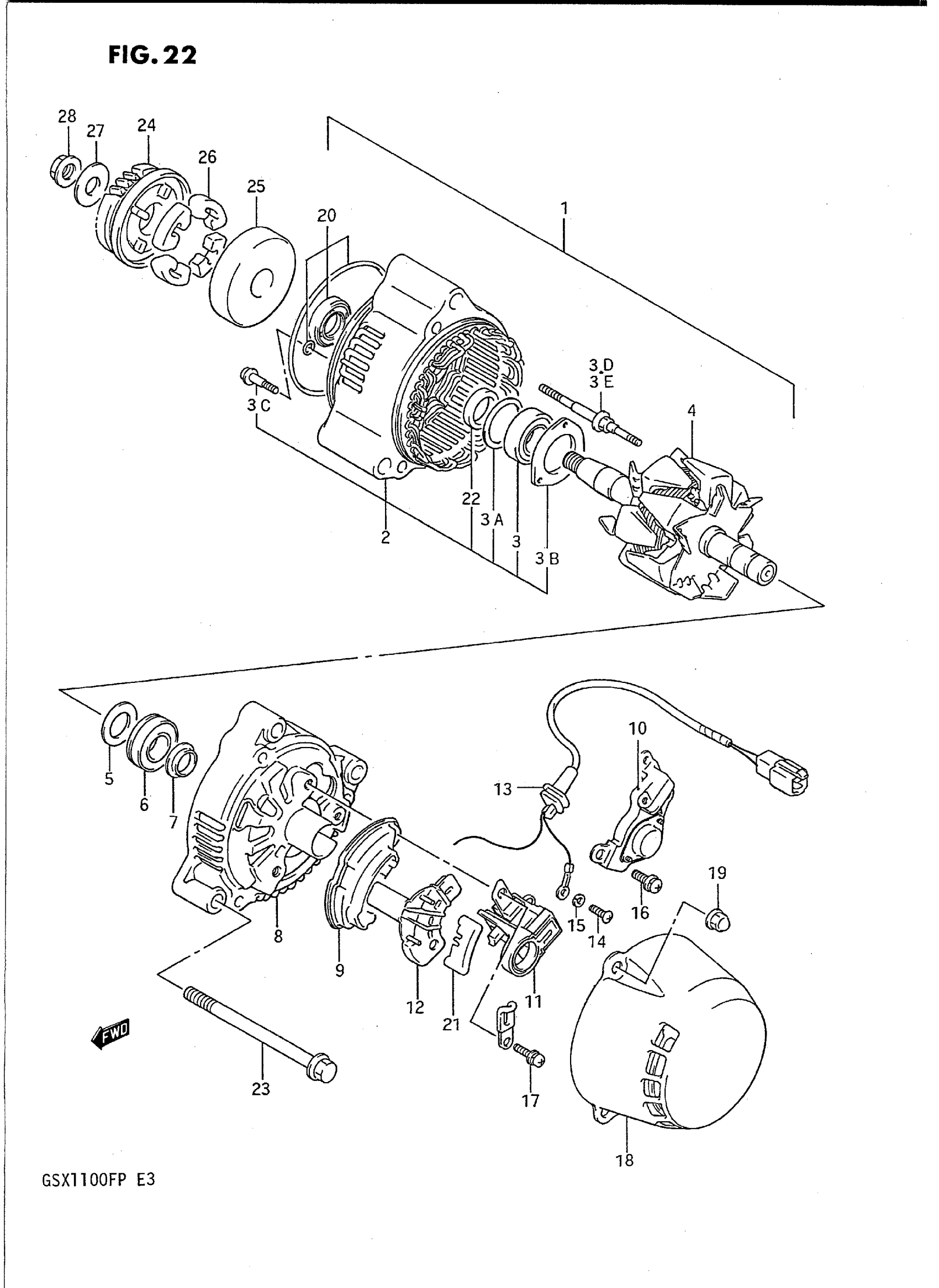

Find the part on the Alternator diagram for your 1993 Suzuki GSX1100FP, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1993 Suzuki GSX1100FP Alternator Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

ALTERNATOR ASSY | Includes Item(s) 2 - 22 This part replaces 31400-48B03.

31400-17C04

1
Out of stock

2

FRAME, DRIVE END

31580-48B00

1
Out of stock

3

BEARING

31612-06B00

1
Out of stock

3A

COVER, BEARING

31613-48B00

1
Out of stock

3B

RETAINER, BEARING

31585-48B00

1
Out of stock

3C

SCREW, BEARING RETAINER

31586-48B00

3
Out of stock

3D

STUD BOLT | MODEL J/K

31587-85250

3
Out of stock

3E

STUD BOLT | MODEL L/M/N/P This part replaces 31587-19C00.

31587-85250

3
Out of stock

4

ROTOR ASSY This part replaces 31710-48B03.

31710-48B04

1
Out of stock

5

COVER (1)

31613-82610

1
Out of stock

6

BEARING

31612-48B00

1
Out of stock

7

COVER (2)

31613-27A10

1
Out of stock

8

FRAME, END

31611-48B00

1
Out of stock

9

HOLDER, RECTIFIER

31621-27A00

1
Out of stock

10

REGULATOR

32500-27A00

1
Out of stock

11

HOLDER, BRUSH

31656-48B00

1
Out of stock

12

COVER, RECTIFIER This part replaces 31687-27A00.

31687-17E00

1
Out of stock

13

LEAD WIRE

31480-48B00

1
Out of stock

14

2

$1.15

In stock

15

LOCK WASHER This part replaces 08321-21046.

08321-0104A

2
Out of stock

16

SCREW (5X17)

31688-27A00

2
Out of stock

17

SCREW (5X17) This part replaces 31688-06B00.

31688-27A00

1
Out of stock

18

COVER

31614-48B00

1
Out of stock

19

NUT | MODEL J/K This part replaces 31692-48B00.

08313-2005A

3
Out of stock

19

NUT | MODEL L/M/N/P

08316-16055

3
Out of stock

20

OIL SEAL SET This part replaces 31780-48B00.

31780-27X50

1
Out of stock

21

COVER, RECTIFIER This part replaces 31514-27A00.

31687-17E00

1
Out of stock

22

SPACER

31776-06B00

1
Out of stock

23

BOLT | MODEL J/K This part replaces 01517-08905.

01550-0890B

3
Out of stock

24

NO DESCRIPTION AVAILABLE This part replaces 22730-06B03.

22730-06B04

1
Out of stock

25

HOUSING DAMPER This part replaces 22733-27A04.

22733-27A05

1
Out of stock

26

DAMPER

21231-06B00

4
Out of stock

27

WASHER

08211-10283

1
Out of stock

28

NUT This part replaces 08316-26106.

08316-2010B

1
Out of stock
